Diagnostic Procedure

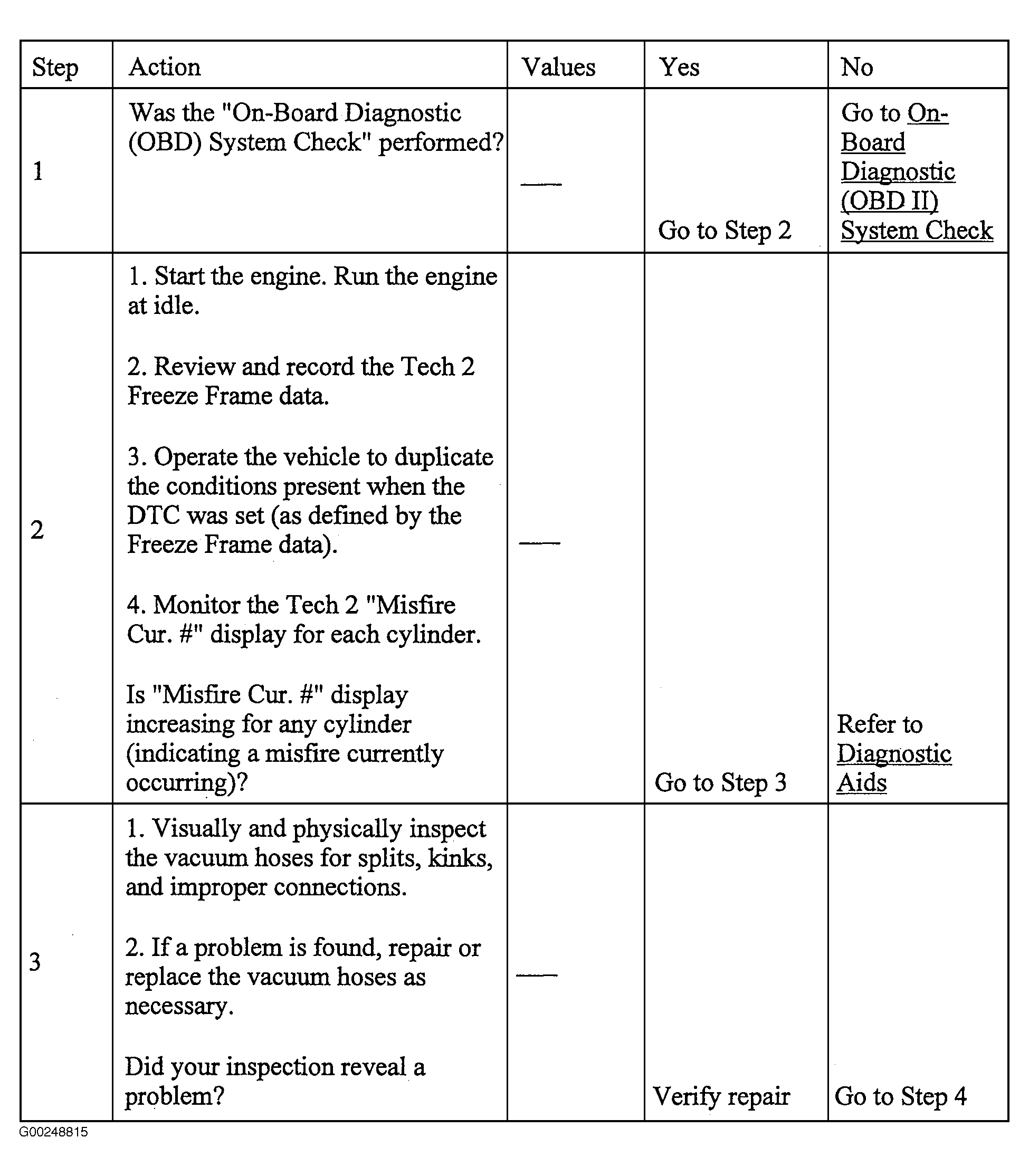

Fig 1: DTC P0300: Engine Misfire Detected (Steps 1-3)
G00248815Courtesy of ISUZU MOTOR CO.

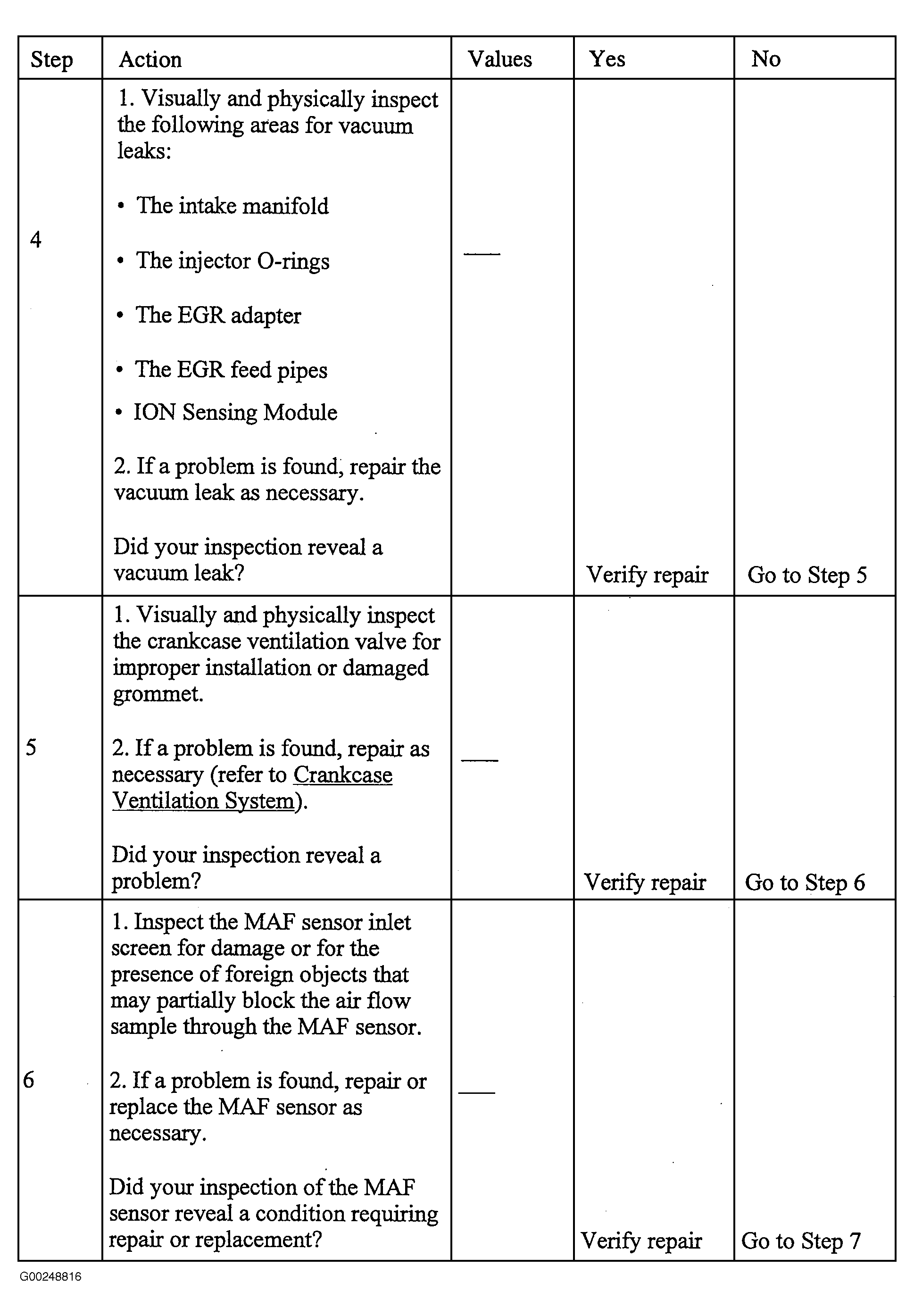

Fig 2: DTC P0300: Engine Misfire Detected (Steps 4-6)
G00248816Courtesy of ISUZU MOTOR CO.

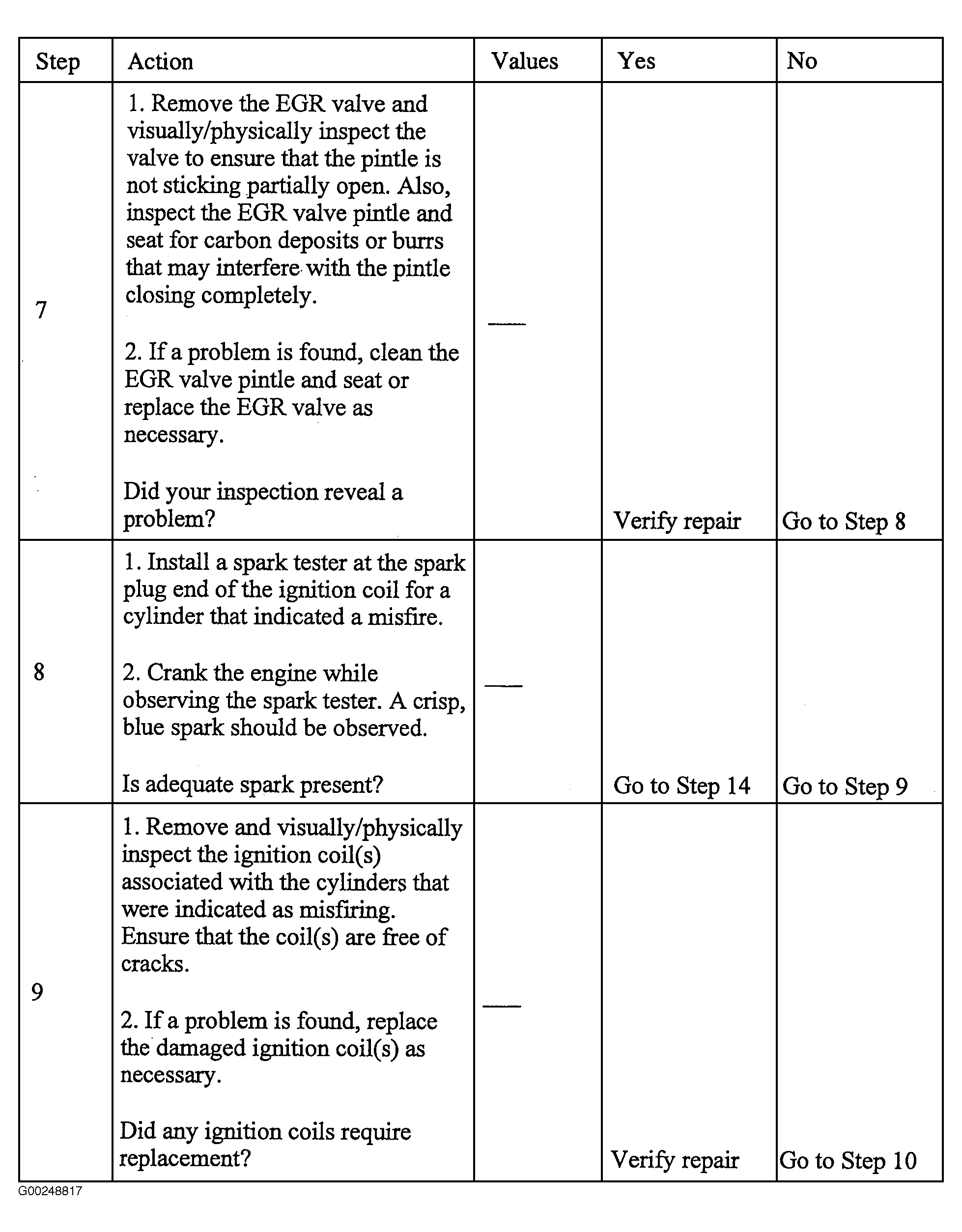

Fig 3: DTC P0300: Engine Misfire Detected (Steps 7-9)
G00248817Courtesy of ISUZU MOTOR CO.

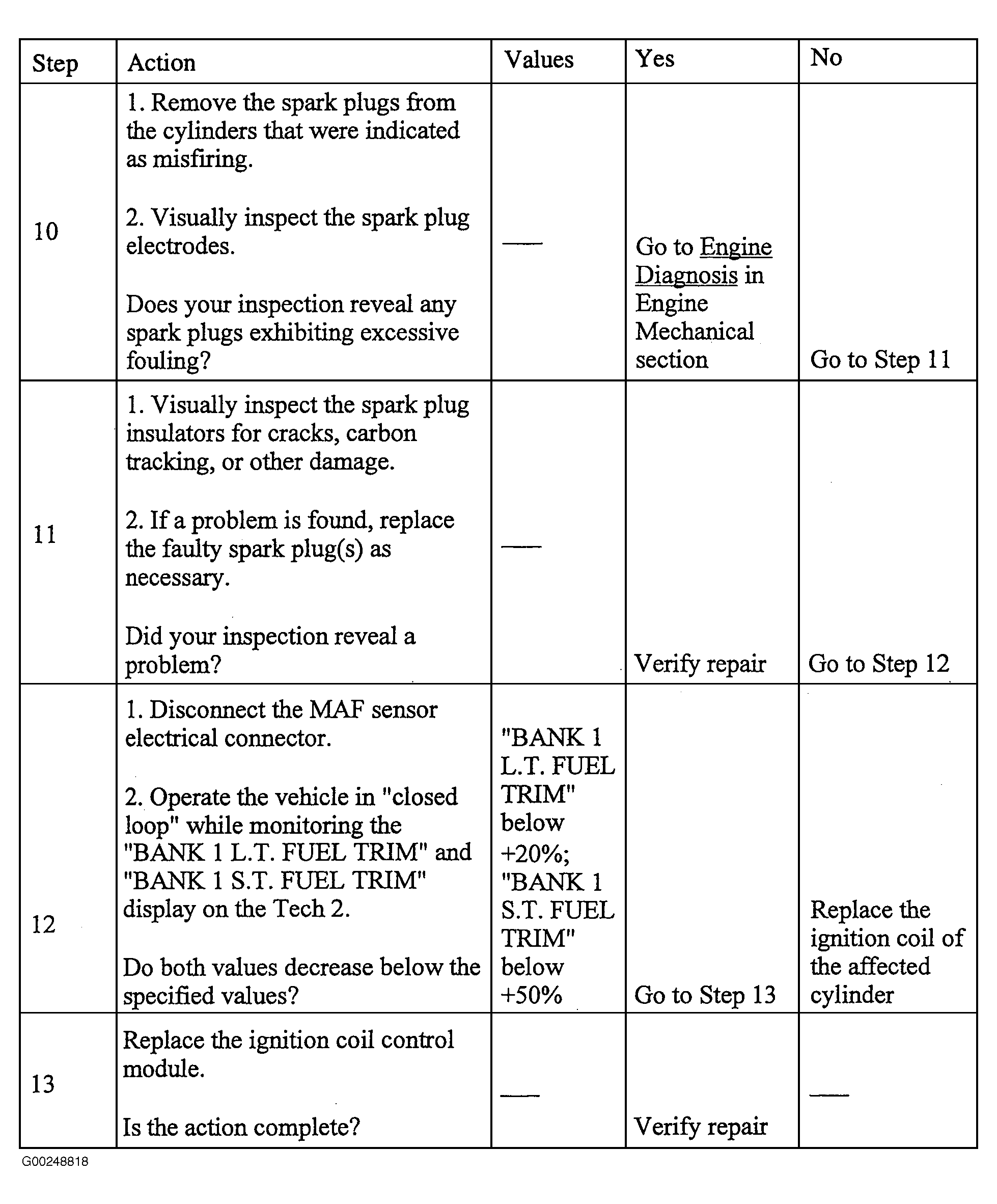

Fig 4: DTC P0300: Engine Misfire Detected (Steps 10-13)
G00248818Courtesy of ISUZU MOTOR CO.

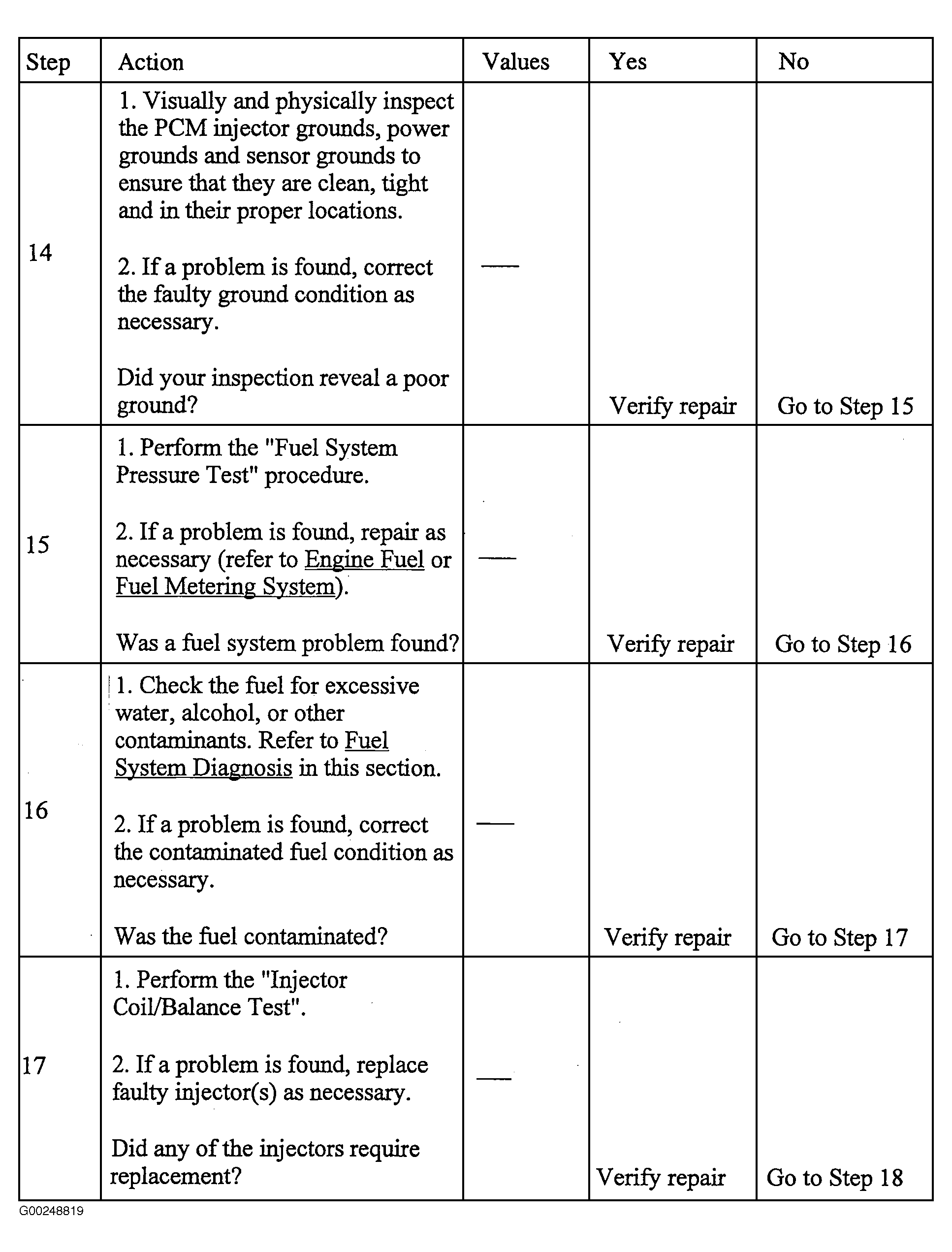

Fig 5: DTC P0300: Engine Misfire Detected (Steps 14-17)
G00248819Courtesy of ISUZU MOTOR CO.

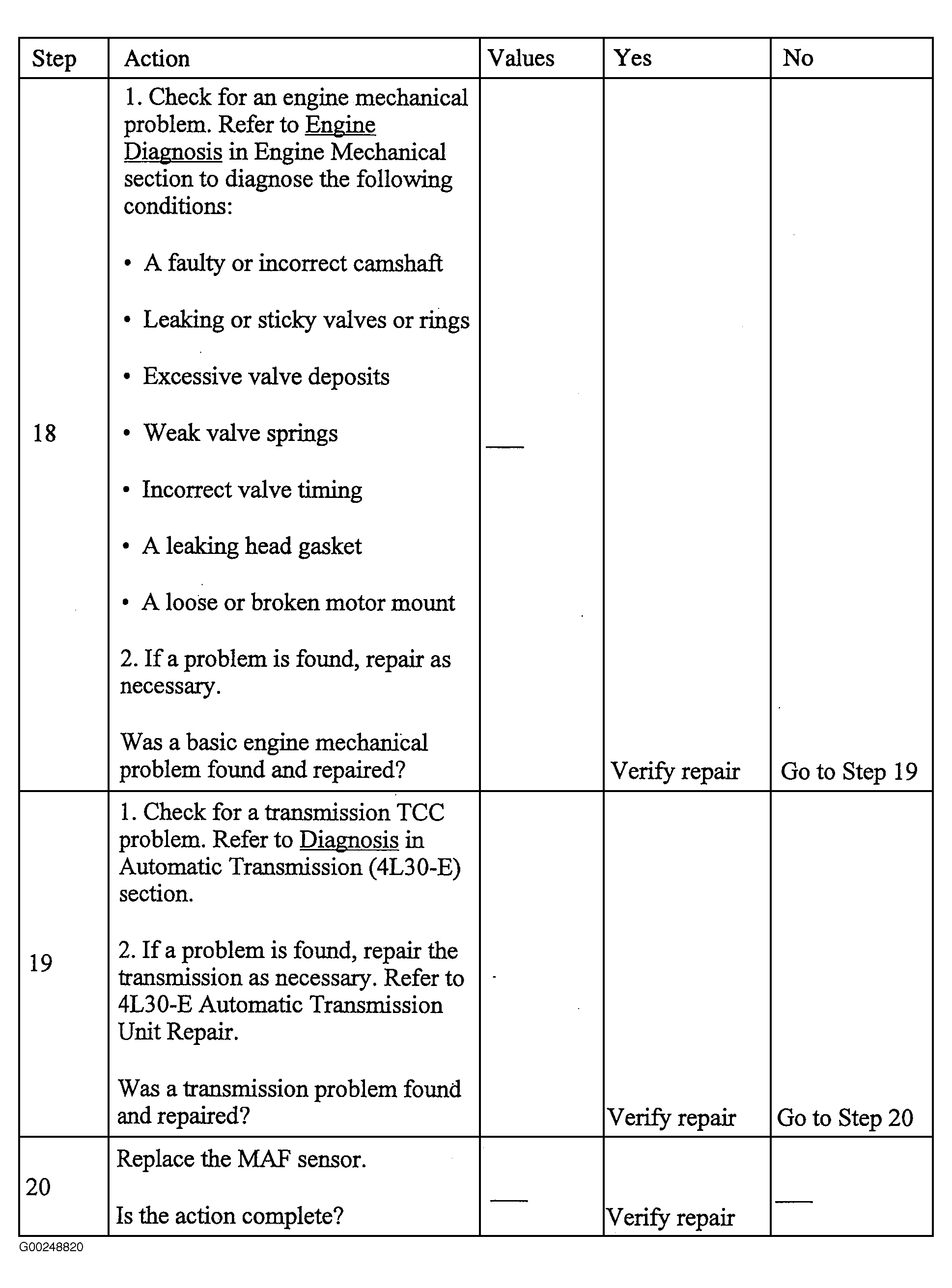

Fig 6: DTC P0300: Engine Misfire Detected (Steps 18-20)
G00248820Courtesy of ISUZU MOTOR CO.
