DTC P0116: Engine Coolant Temperature Sensor - Sensor Stuck
>>
Diagnostic Procedure
Diagnostic Procedure

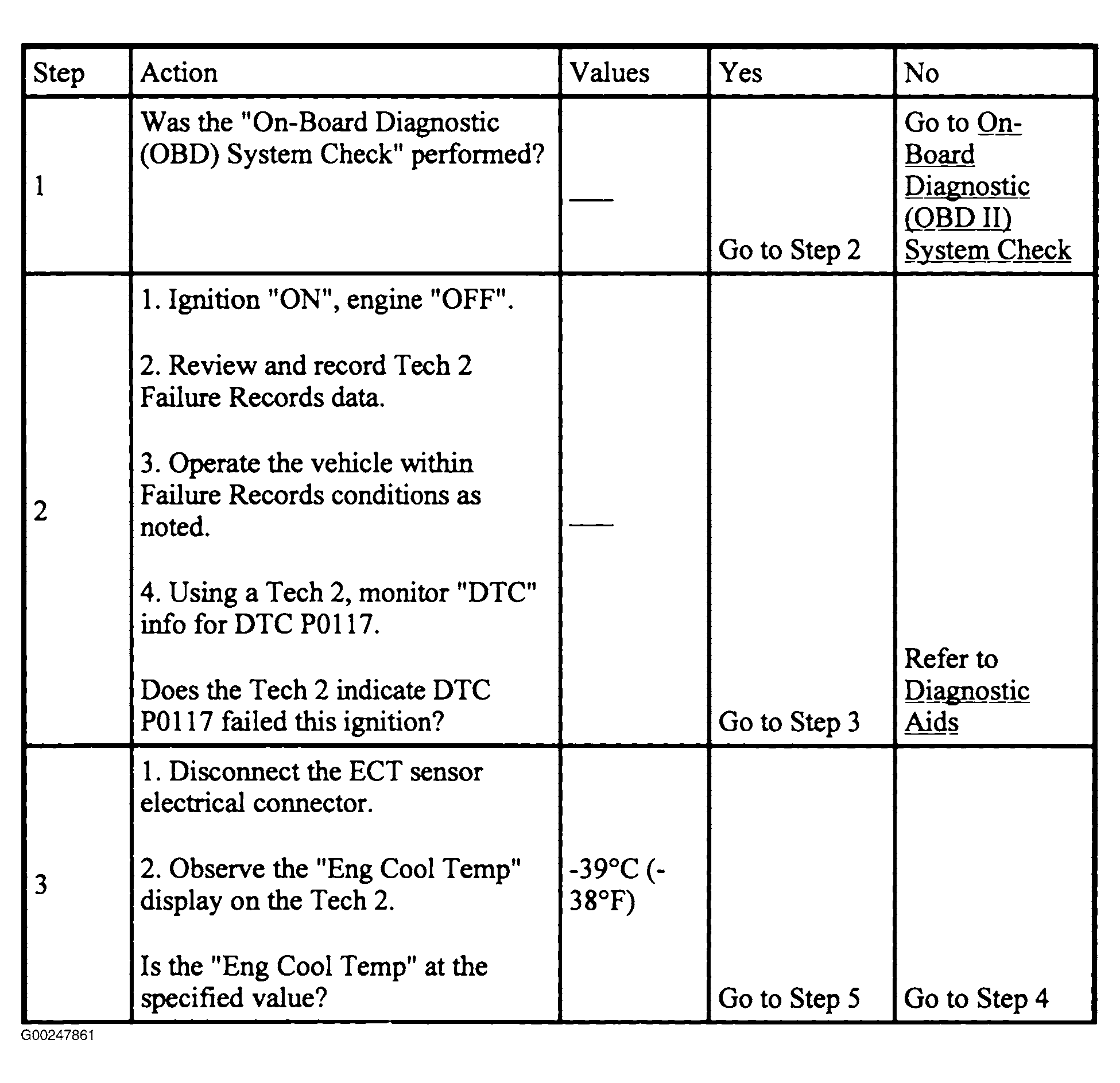

Fig 1: DTC P0116: ECT Sensor - Sensor Stuck (Steps 1-3)
Courtesy of ISUZU MOTOR CO.

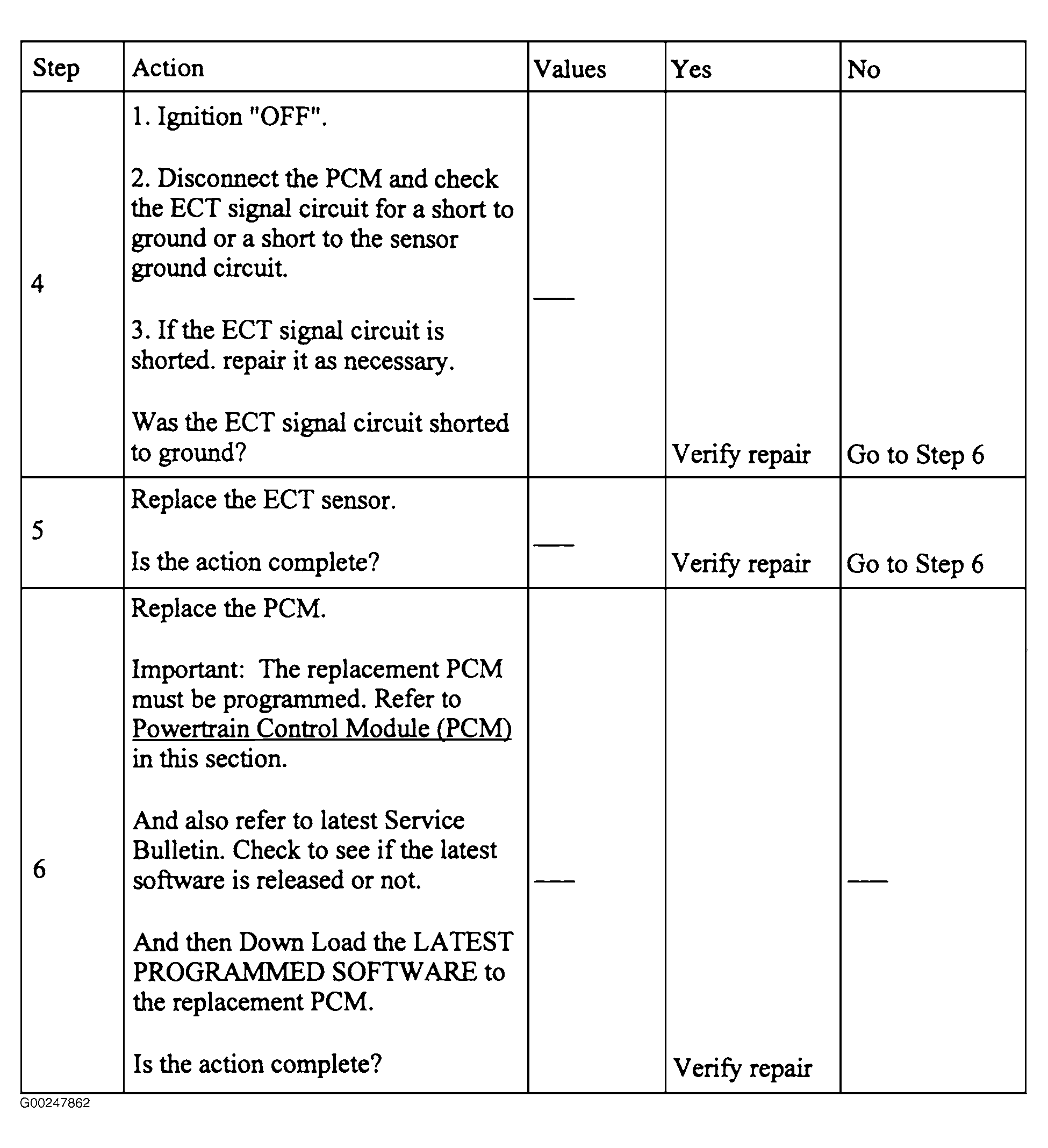

Fig 2: DTC P116: ECT Sensor - Sensor Stuck (Steps 4-6)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
