B8009: No Transponder Key Programmed

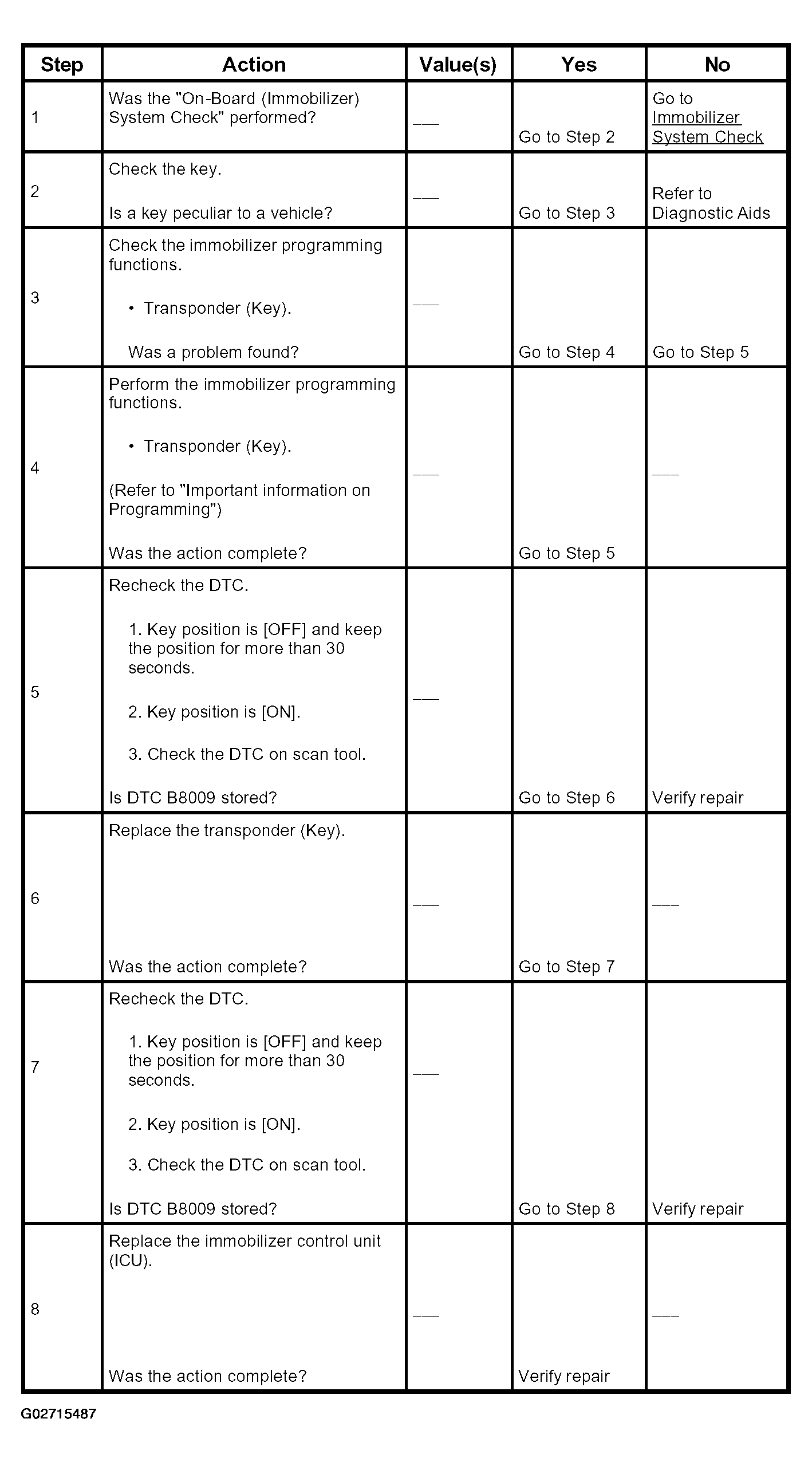

Fig 1: B8009 - NO Transponder Key Programmed Diagnosis Procedure

G02715487

Courtesy of ISUZU MOTOR CO.
