Automatic Transmission Shift Lock Actuator

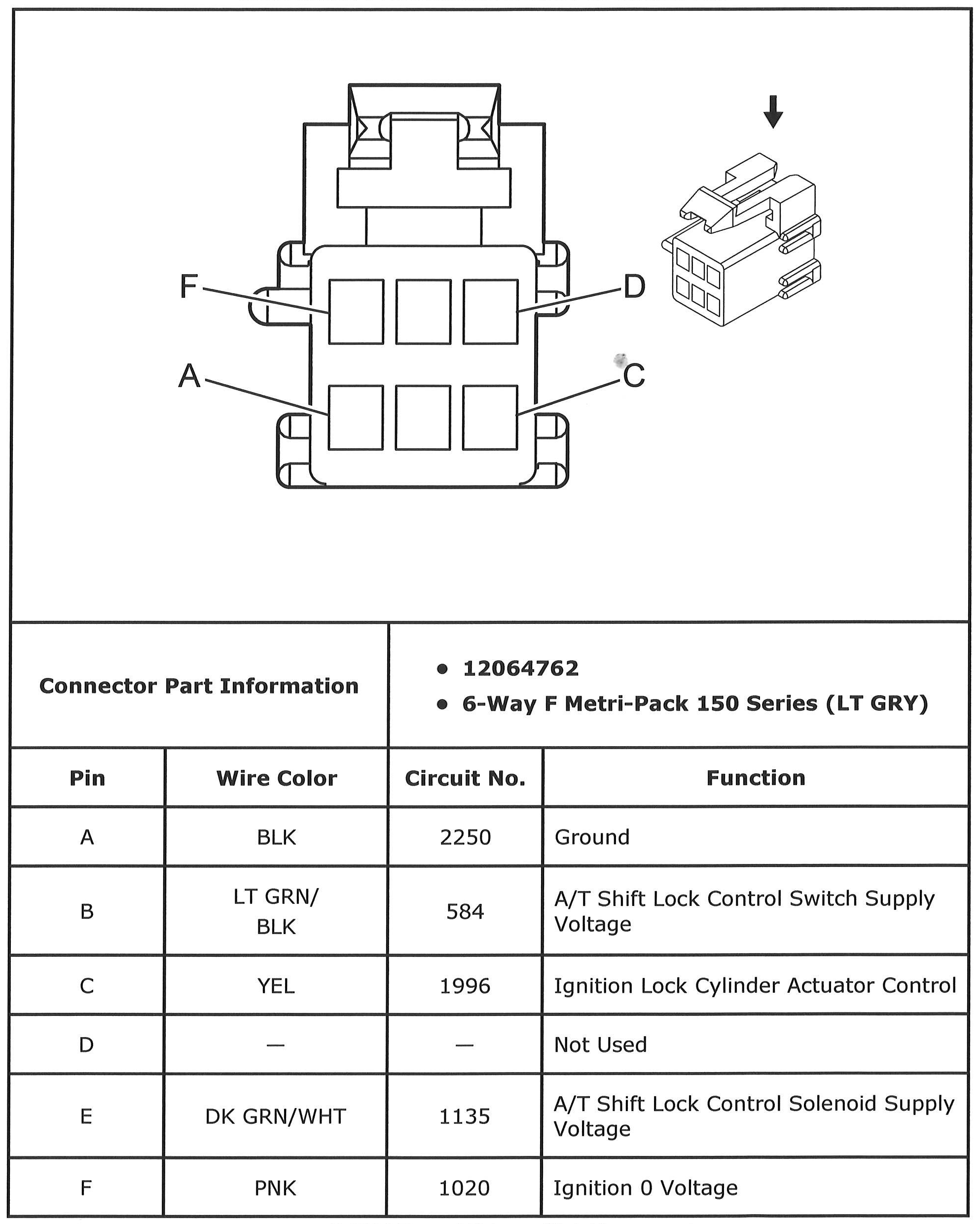

Fig 1: Automatic Transmission Shift Lock Actuator Connector End View

G00537827

Courtesy of ISUZU MOTOR CO.
