Courtesy/Reading Lamp - RF

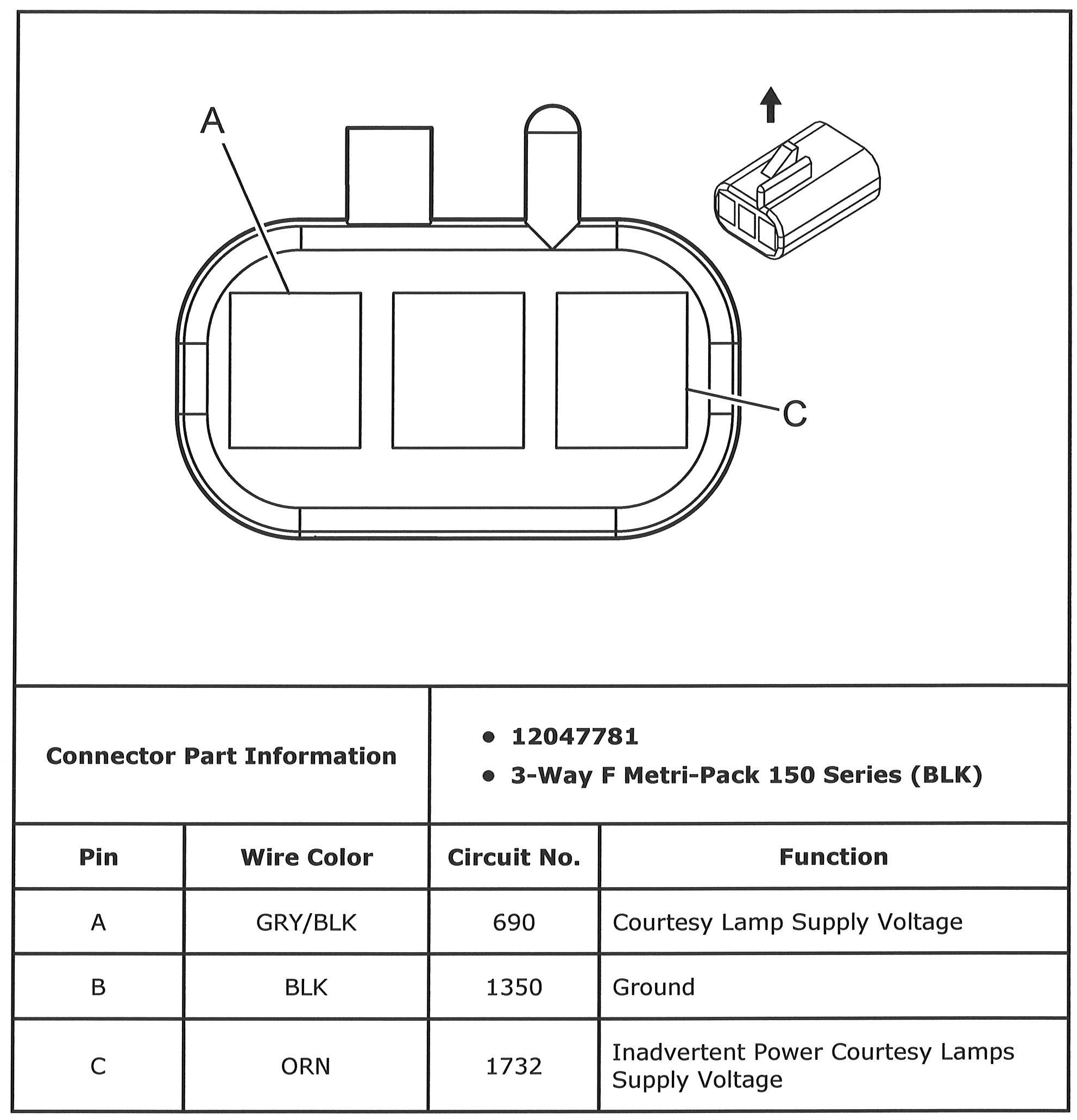

Fig 1: Courtesy/Reading Lamp Connector End View - RF

G00539521

Courtesy of ISUZU MOTOR CO.
