Courtesy/Reading Lamp - LF

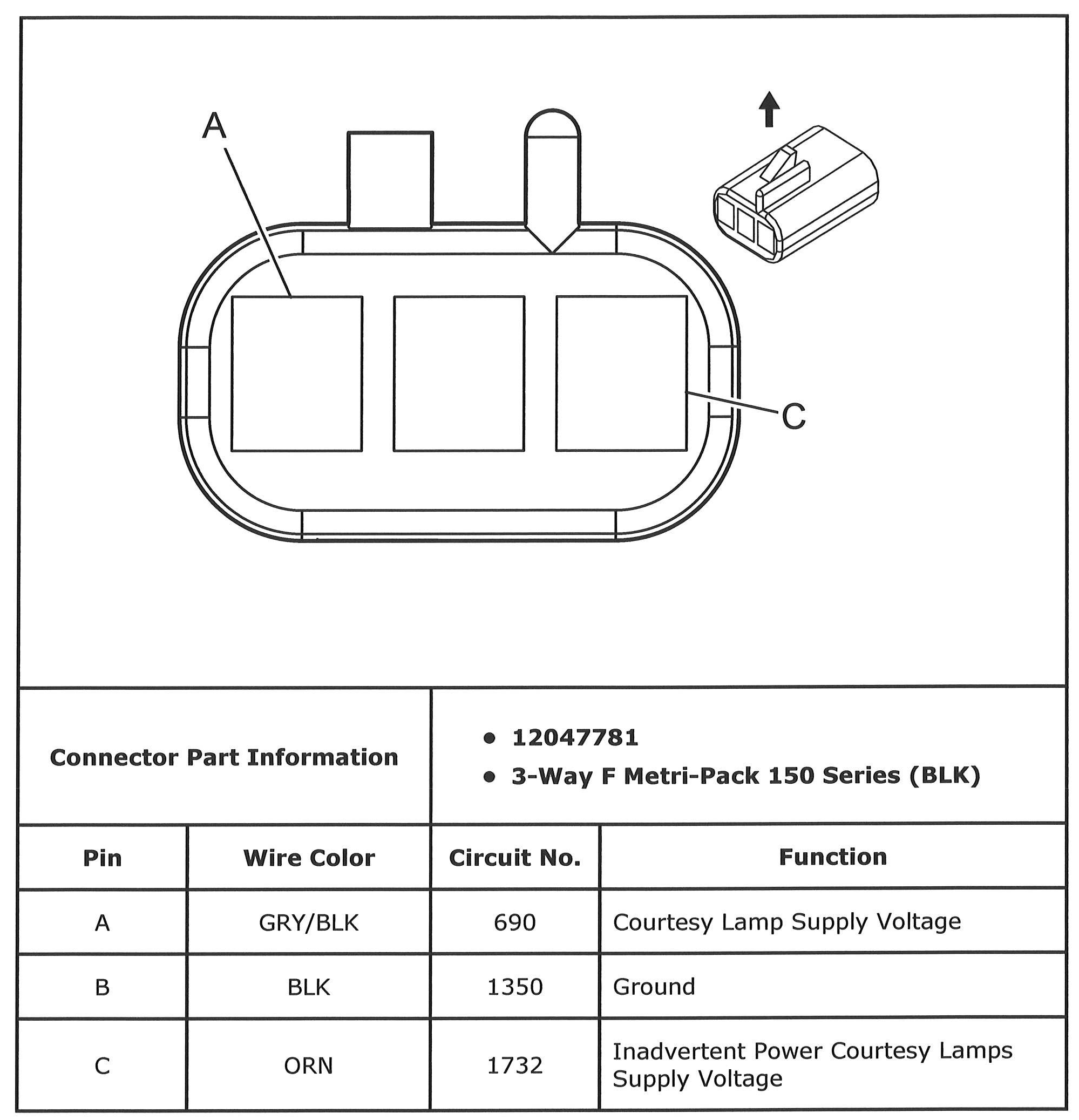

Fig 1: Courtesy/Reading Lamp Connector End View - LF

G00539518

Courtesy of ISUZU MOTOR CO.
