Left Rear Body Side Panel

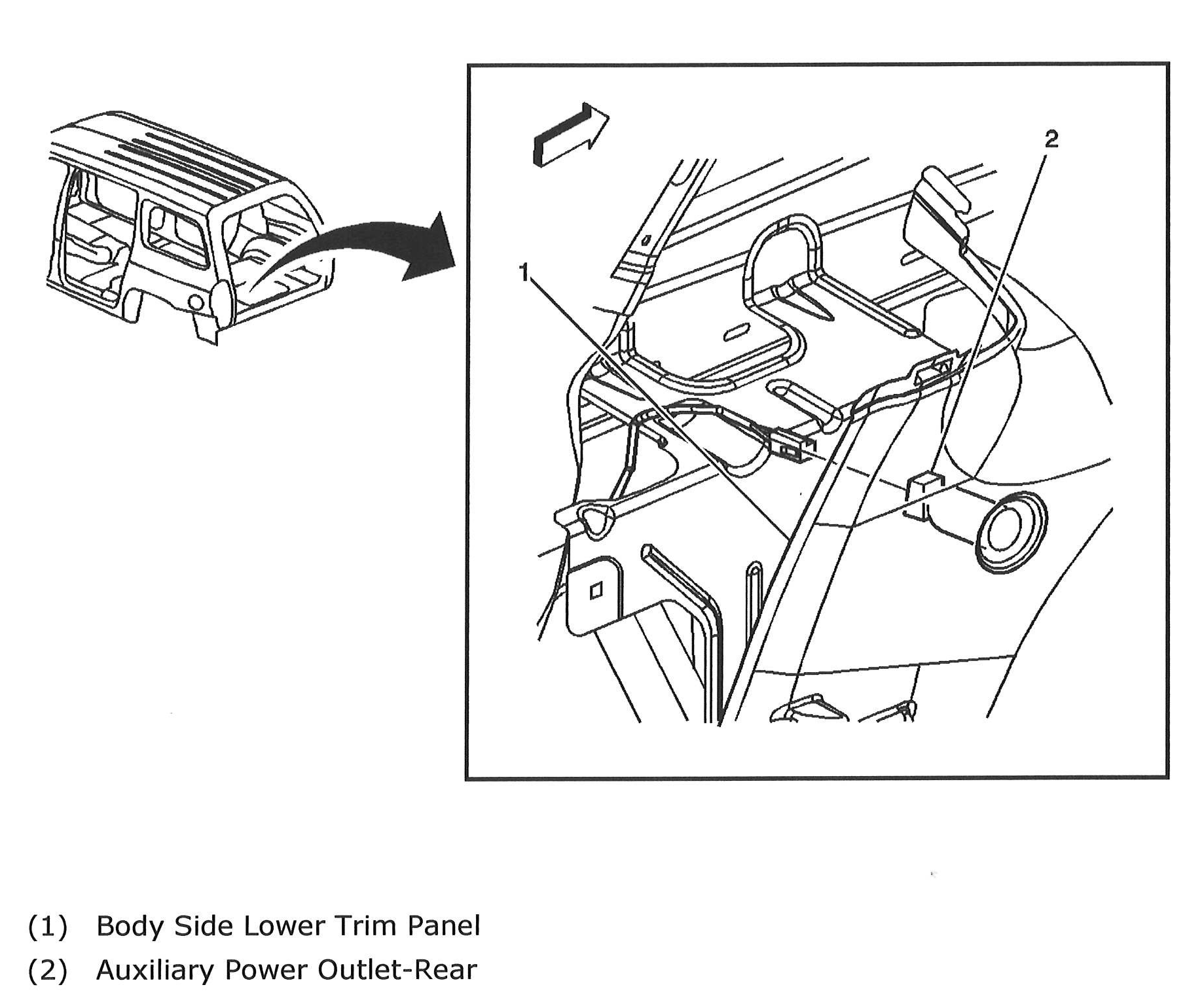

Fig 1: Left Rear Body Side Panel
G00537797Courtesy of GENERAL MOTORS COMPANY
