4WD Control Unit And Associated Parts

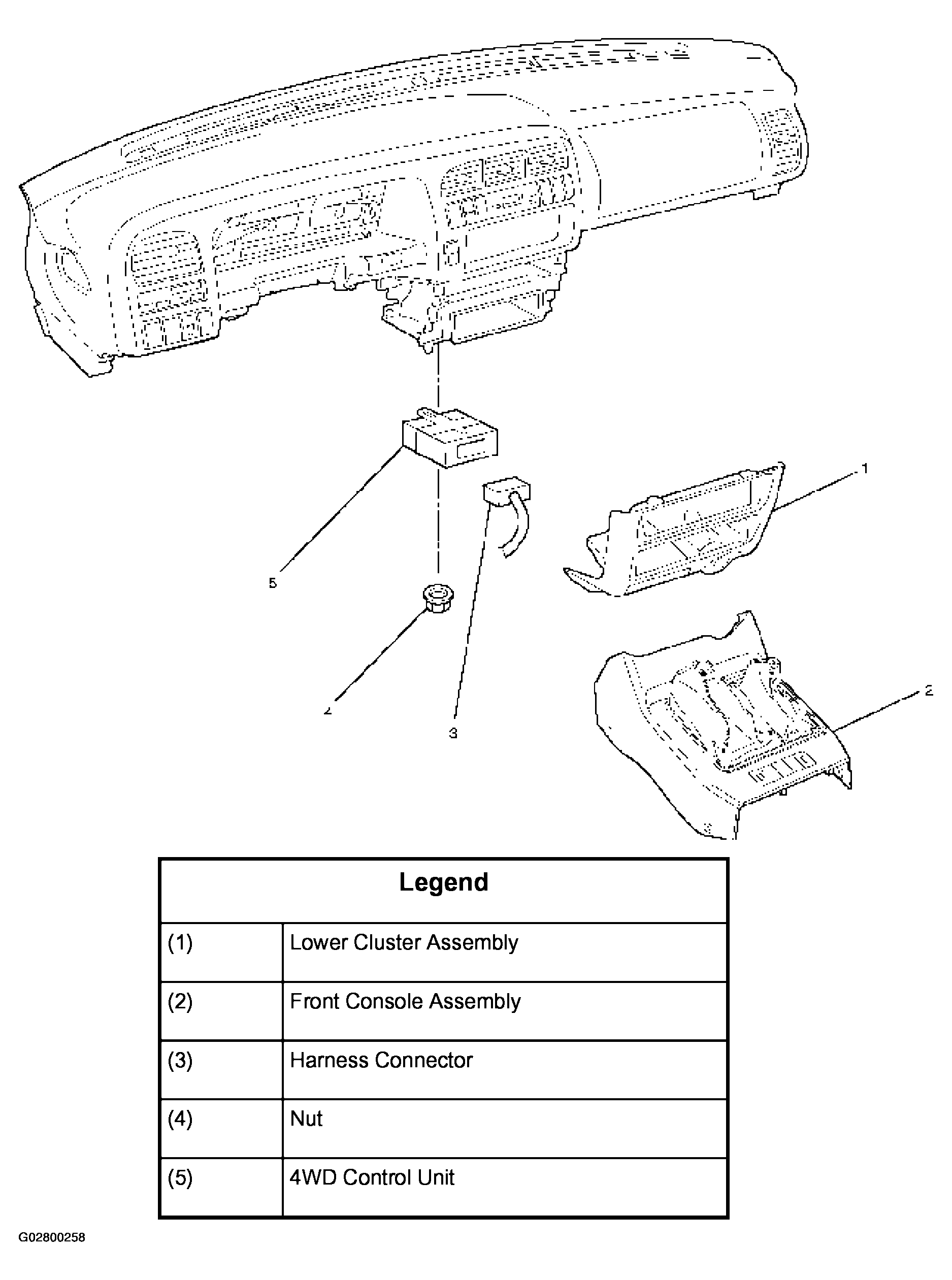

Fig 1: Identifying 4WD Control Unit And Associated Parts

G02800258

Courtesy of ISUZU MOTOR CO.
