Steering Column and Associated Parts

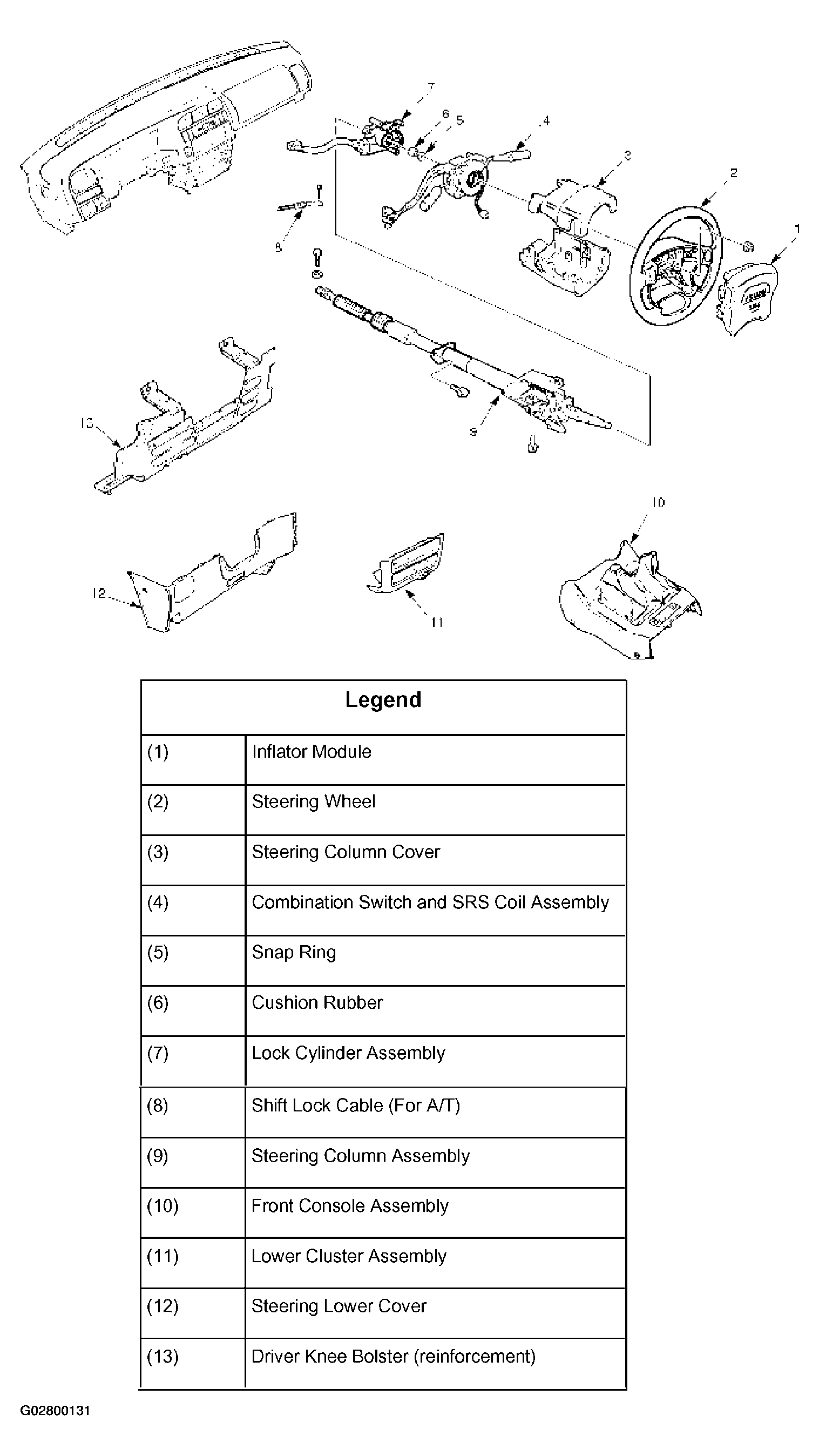

Fig 1: Exploded View Of Steering Column And Associated Parts

G02800131

Courtesy of ISUZU MOTOR CO.
