Steering Gear Disassembled View

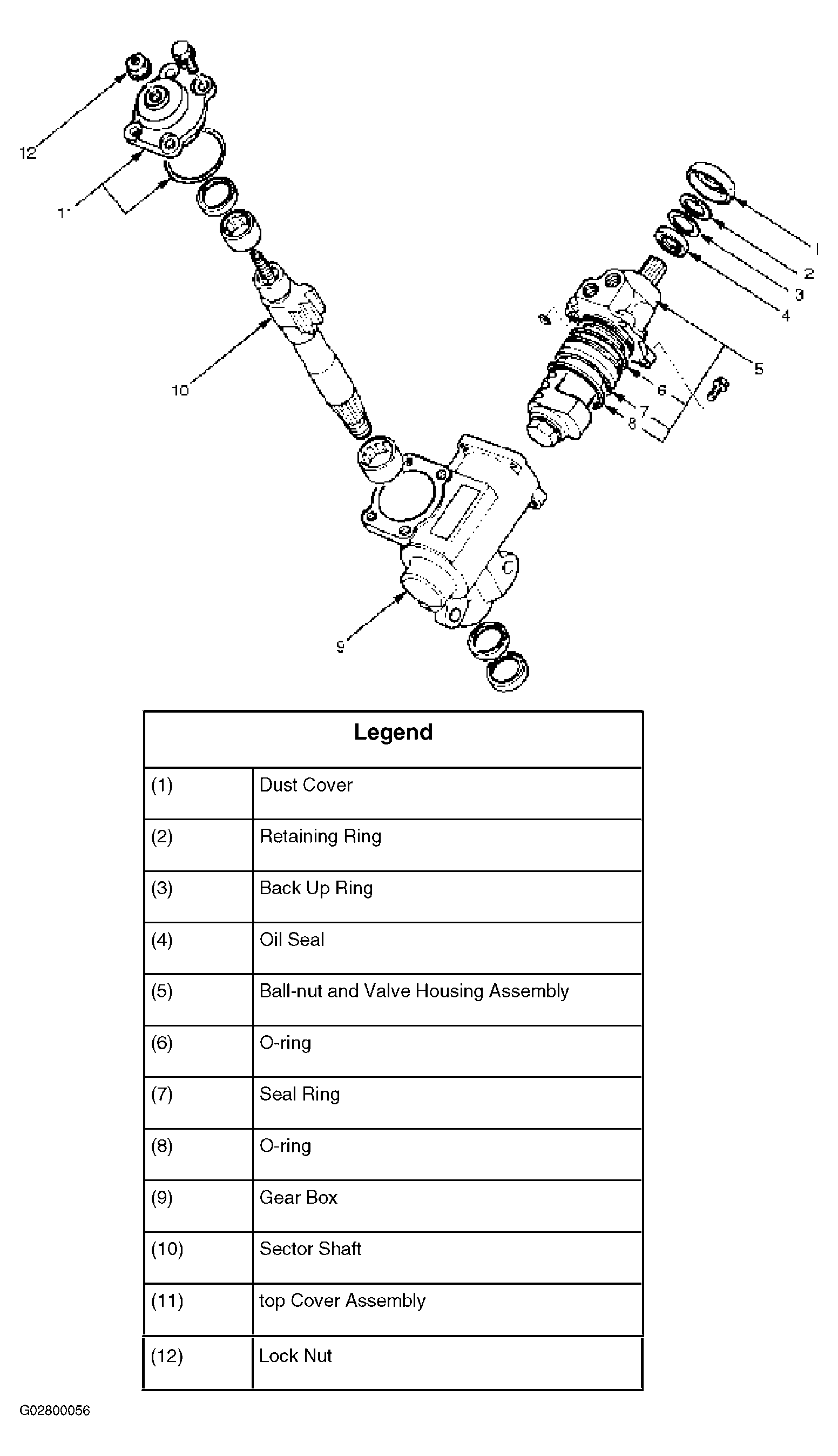

Fig 1: Exploded View Of Steering Gear

G02800056

Courtesy of ISUZU MOTOR CO.
