Oil Filter

WARNING: This page is about a different car, the 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

The oil filter is a full-flow filtering, cartridge type that utilizes a paper element. It also has a built-in bypass valve. The filter element has a special pleat design to increase the effective filtering area.

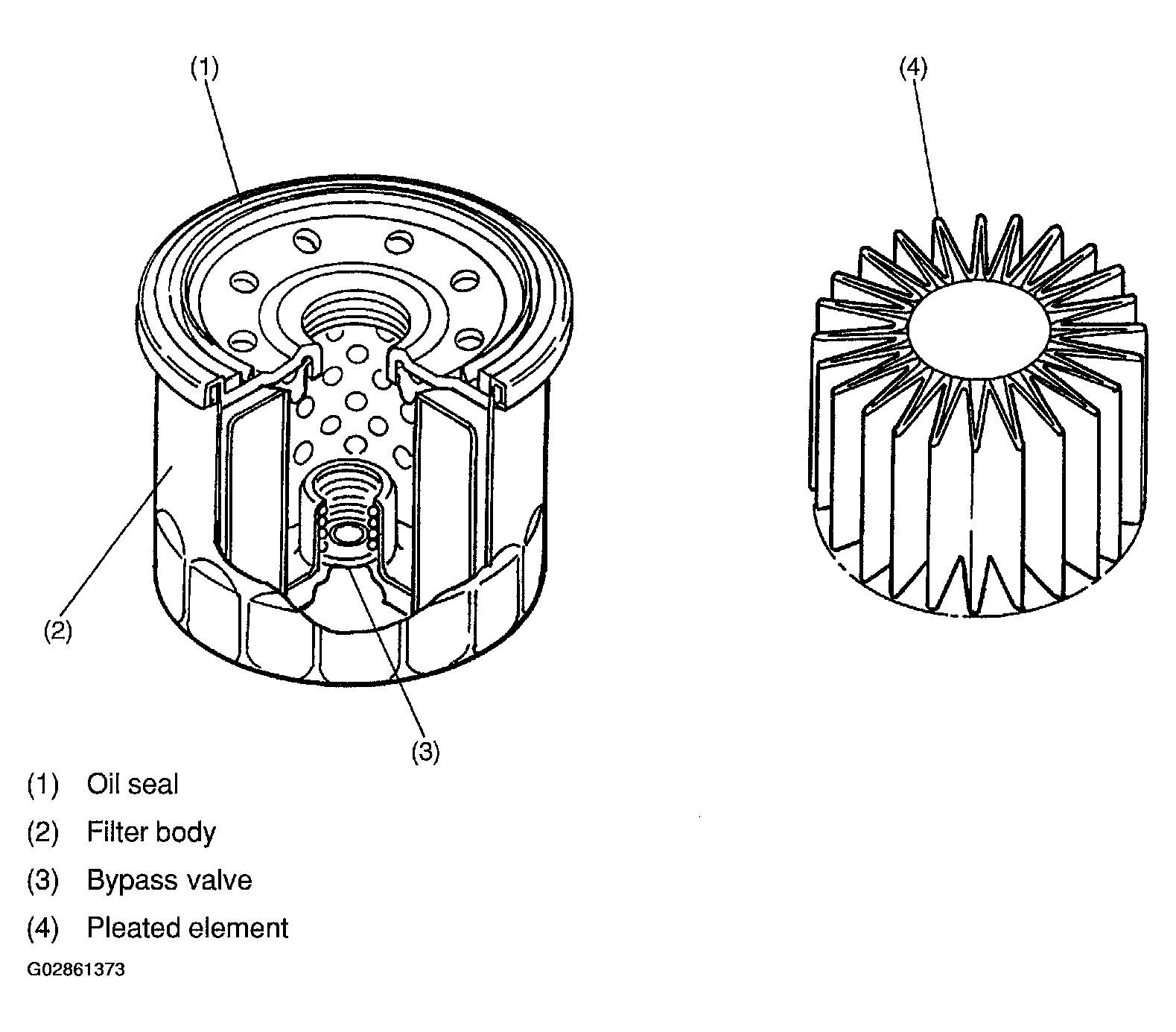

Fig 1: Identifying Oil Filter
G02861373Courtesy of SUBARU OF AMERICA, INC.
