Powertrain Control Module (PCM) Location

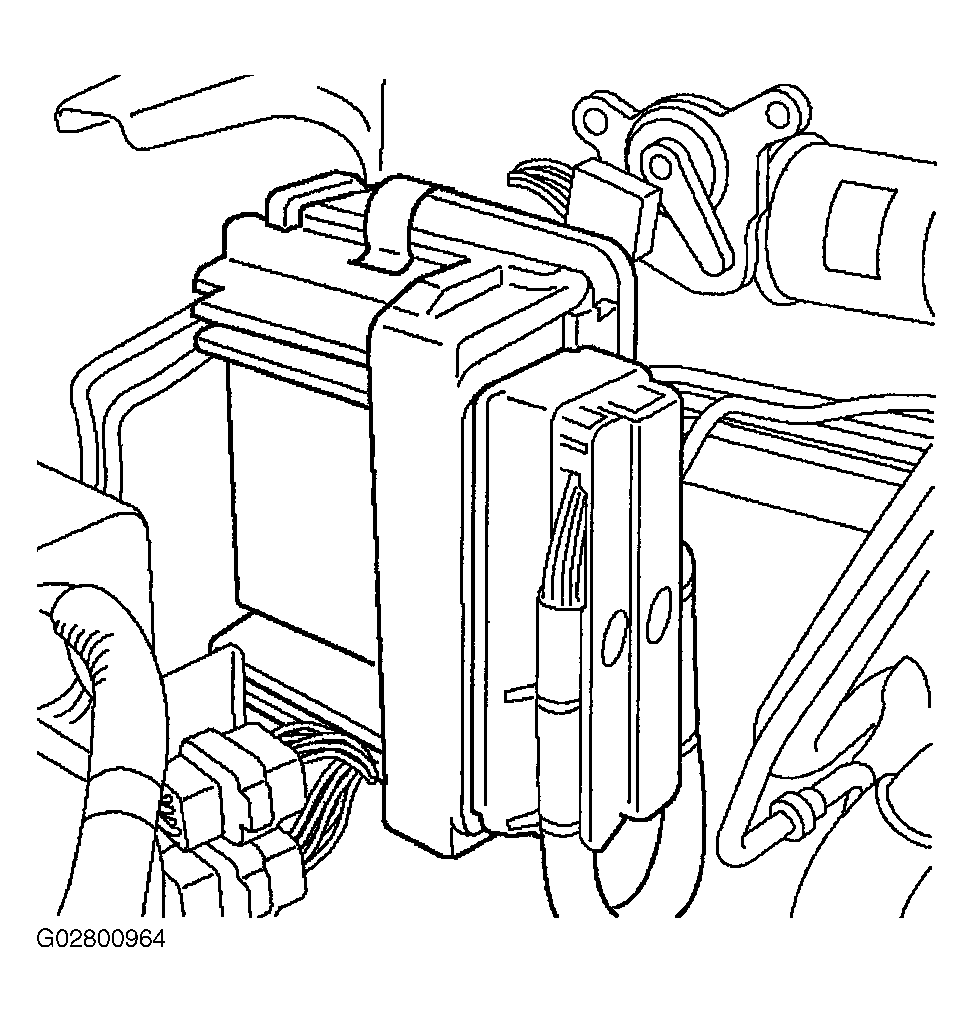

Fig 1: Locating Powertrain Control Module

G02800964

Courtesy of ISUZU MOTOR CO.
