Time Chart of Shifting Under Normal Condition

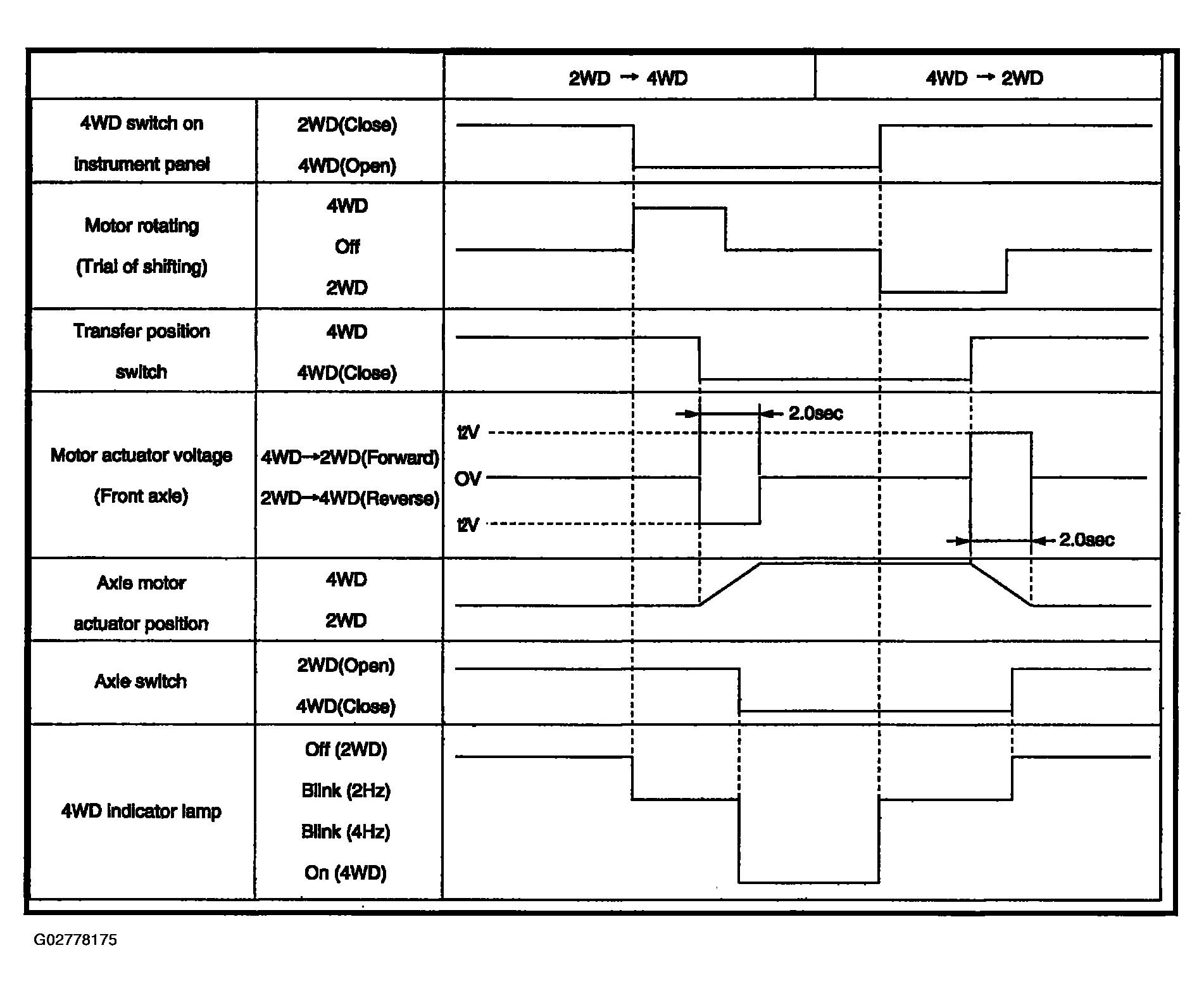

Fig 1: Shifting Under Normal Condition Time Chart

G02778175
