Electronic Hydraulic Control Unit and Associated Parts: Notes

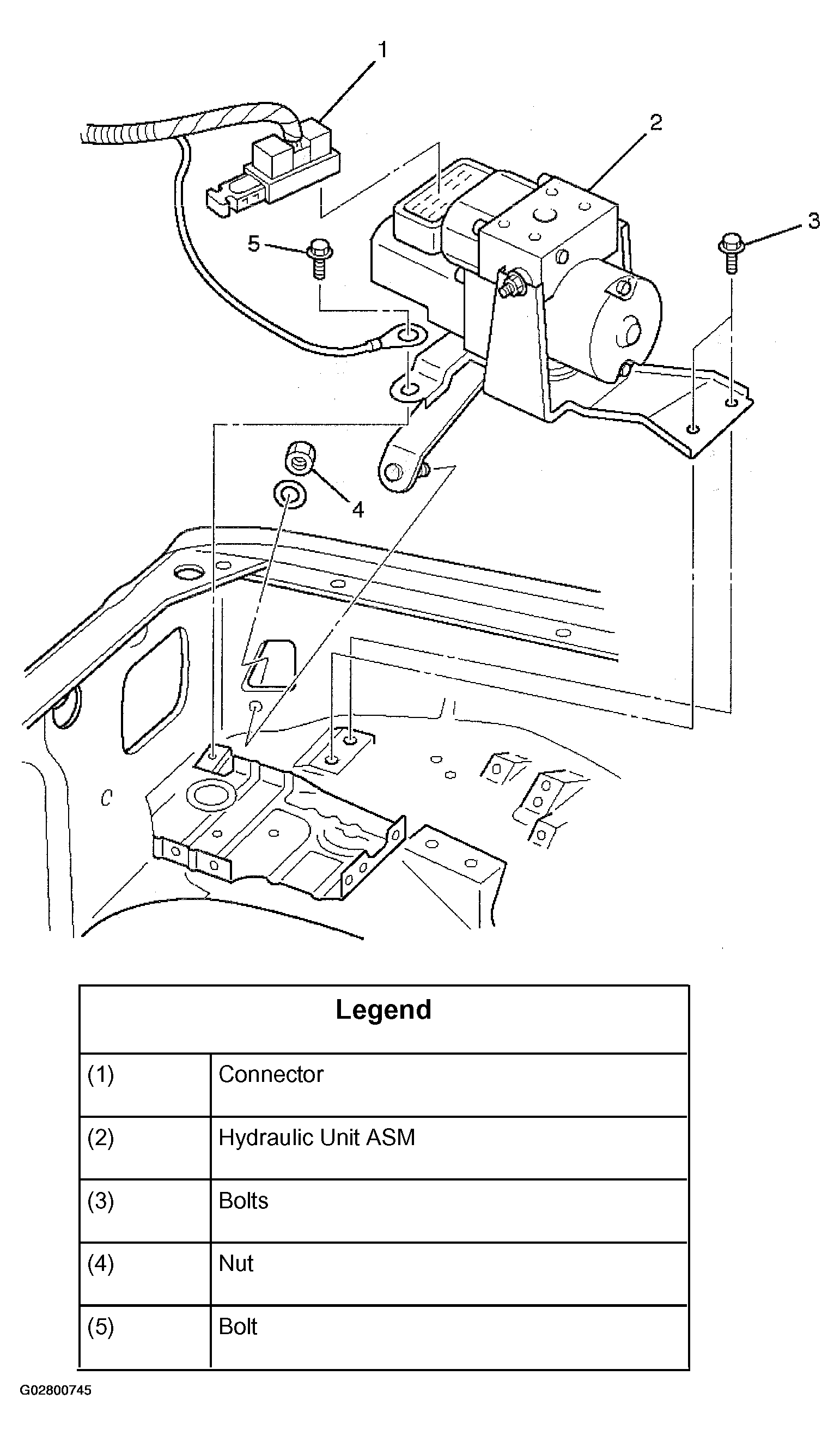

Fig 1: Locating Electronic Hydraulic Control Unit And Associated Parts

G02800745

Courtesy of ISUZU MOTOR CO.
