RODEO (UE)/AMIGO (UA) FUEL HOSE QUICK RELEASE CONNECTOR ATTACHING/DETACHING PROCEDURE
TECHNICAL SERVICE BULLETIN
Reference Number(s): IB00-02-S001, Date of Issue:
MARCH, 2000
| ISUZU: | 1998 and newer Rodeo, Amigo |
| AFFECTED VEHICLES: | 1998 and newer Rodeo and Amigo models with 3.2 L-V6 and 2.2L 4 cylinder engines |
Affected Vehicles
1998 and newer Rodeo and Amigo models with 3.2 L-V6 and 2.2L 4 cylinder engines
Service Information

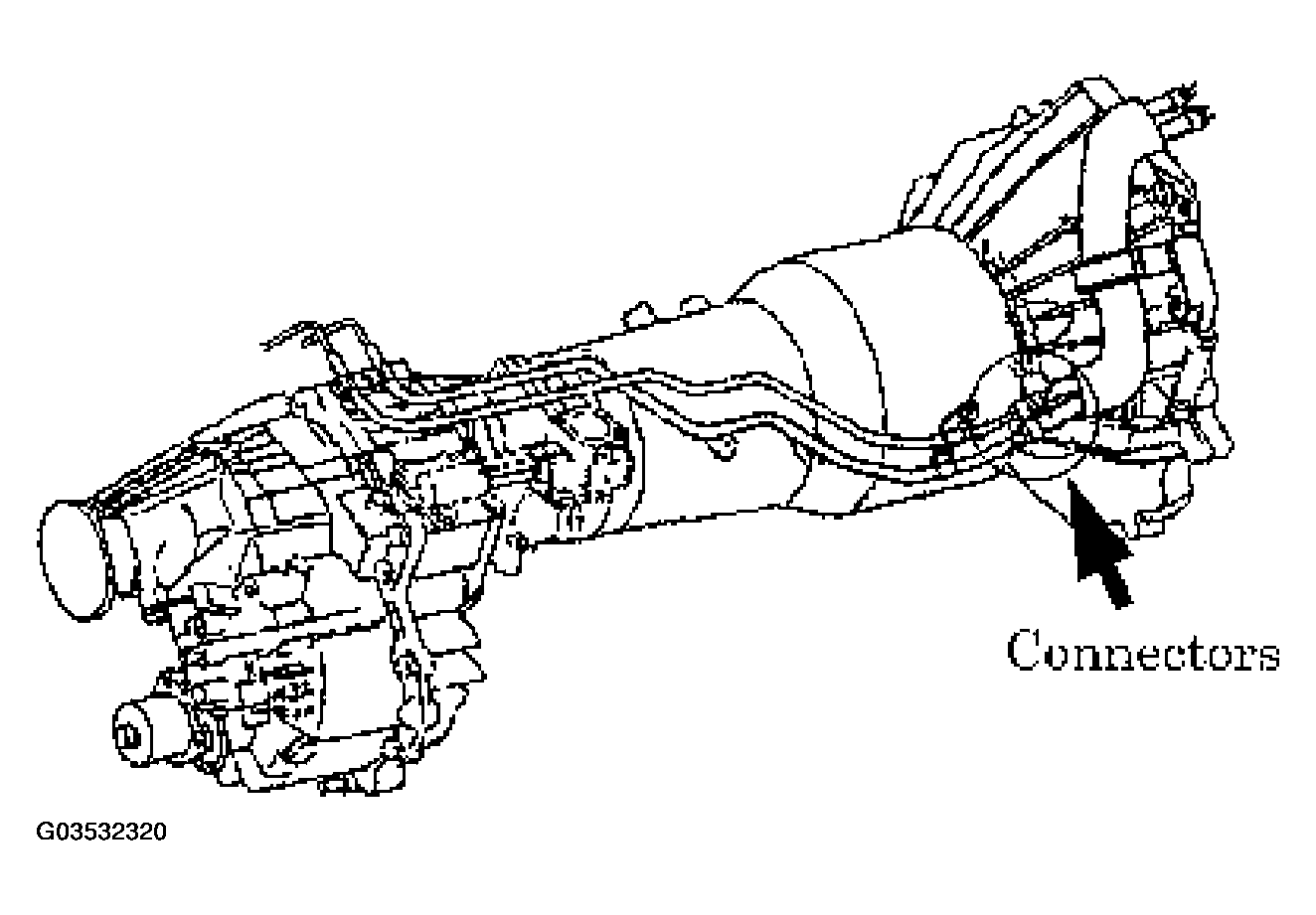

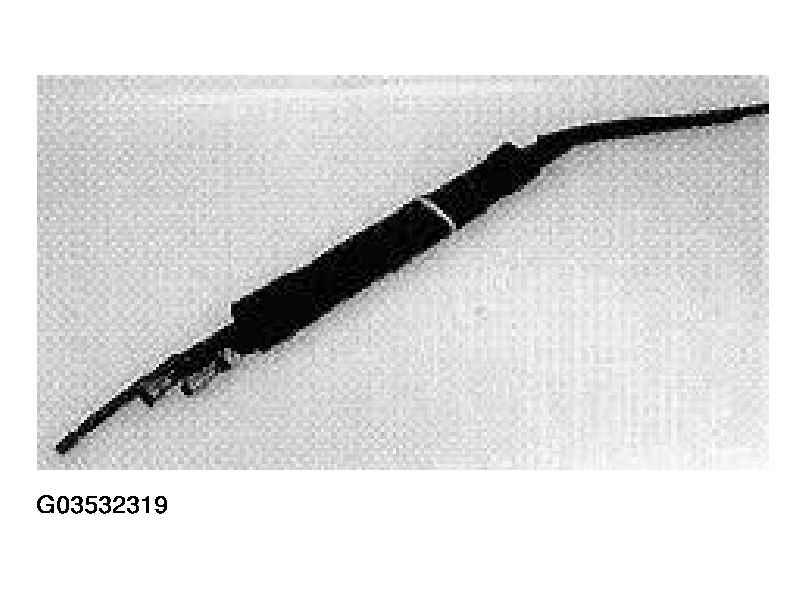

Condition: When it is necessary to disconnect the fuel hose quick release connector assembly (Fig 1 ) located on the transmission (Fig 2 ). The following procedures should be used to avoid any breakage to the plastic portion of the connector (Fig 3 ).
NOTE:
No hand tools are required; the use of hand tools may cause breakage to the plastic connectors.
Service Procedure
Detaching
- Thoroughly clean the area around the connectors to avoid any contamination of the fuel lines.
- Remove the top connector (return line connector) first by firmly pushing on the metal portion of the connector towards the rear of the vehicle (towards the plastic piece). While applying pressure on the metal portion push forward on the plastic portion and slide the connector off the fuel pipe.
- Disconnect the lower connector (feed line) following the same procedure.
Attaching
- Before re-attaching the quick release connectors, be sure the connecting surfaces are clean and free from dirt.
- Re-attach the top fuel line (return line) and connector first.
- Align the center of the pipe into the connector and slide them together until a click is heard. Once attached lightly tug on the connectors, to insure the positive lock of the quick release mechanism.
- Re-attach the lower fuel line (feed line) and connector using the same procedure.IMPORTANT: Before starting the vehicle, inspect the connectors to insure they are firmly attached.
