Preliminary Information

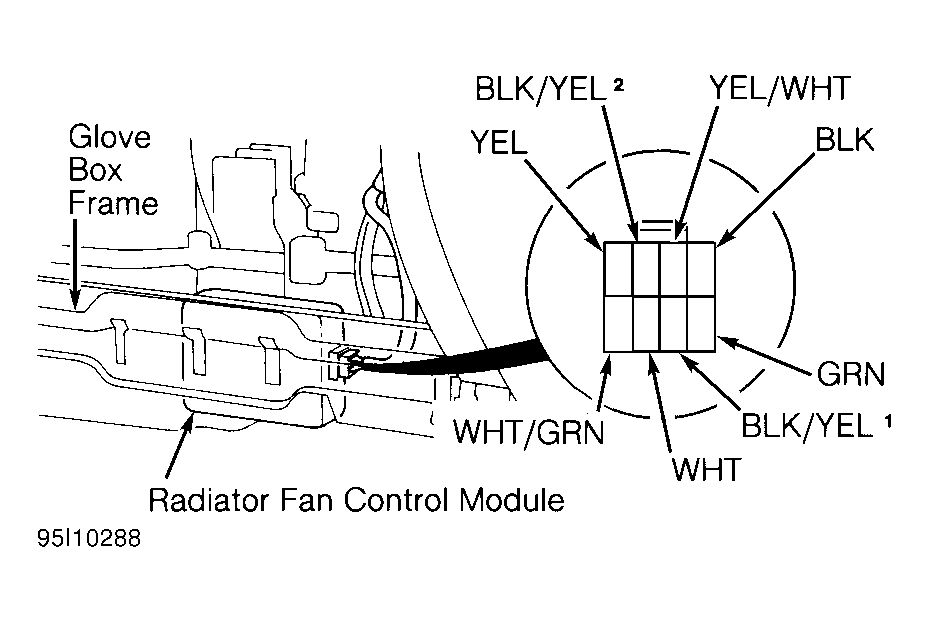

Turn off A/C. Leave radiator fan control module 8-pin connector connected. See Figure . Turn ignition to ON (II) position. On all except terminal No. 8 (Green wire), check for voltage at the following terminals of radiator fan control module connector by backprobing each terminal. On terminal No. 8 (Green wire), instead of checking voltage, connect a jumper wire between terminal No. 8 (Green wire) and ground.
