DTC 95: Brake Switch Circuit Always Open
DTC 95: Brake Switch Circuit Always Open

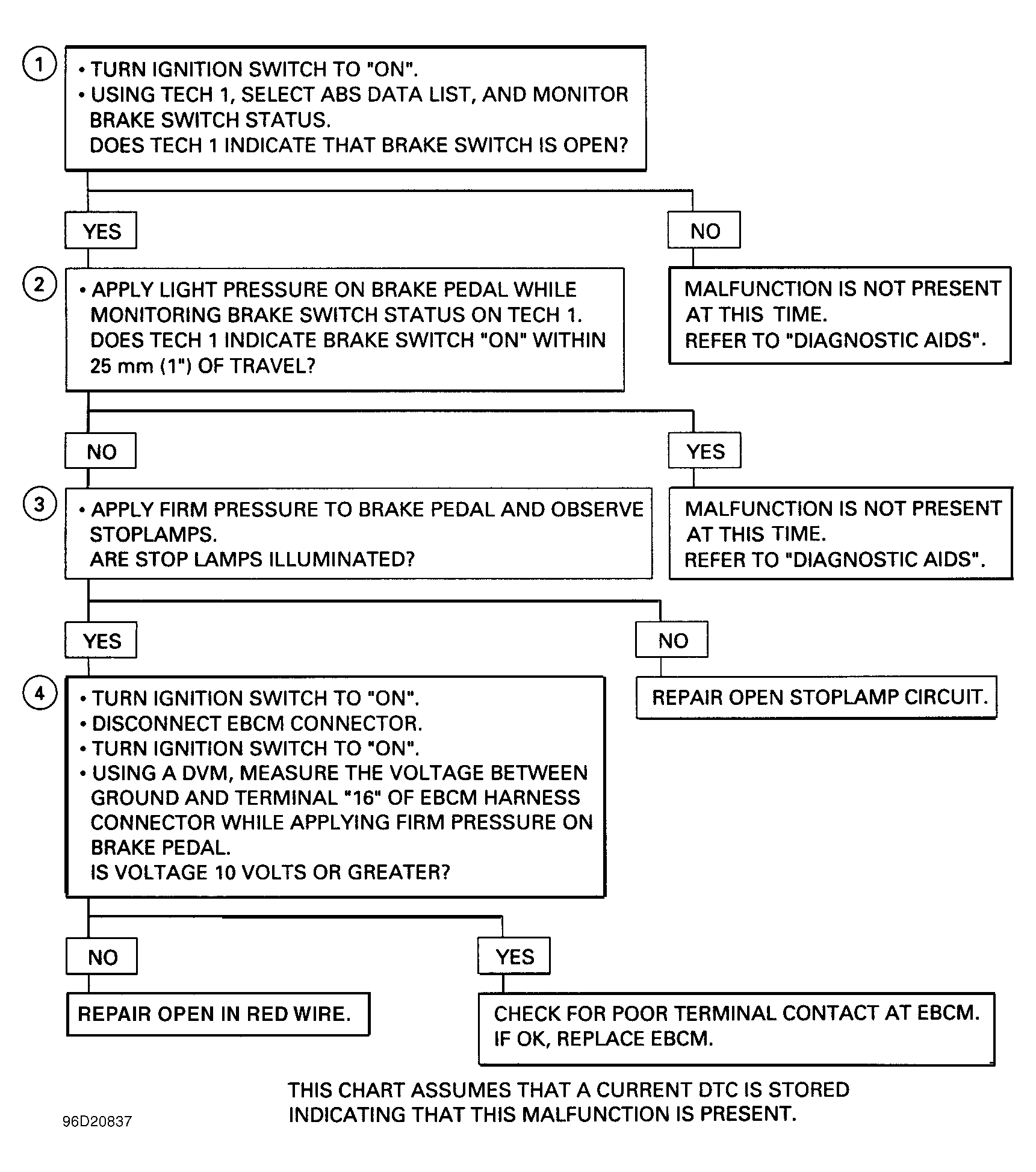

Fig 1: DTC 95: Brake Switch Circuit Always Open
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
