DTC 61: Right Front Motor Circuit Open

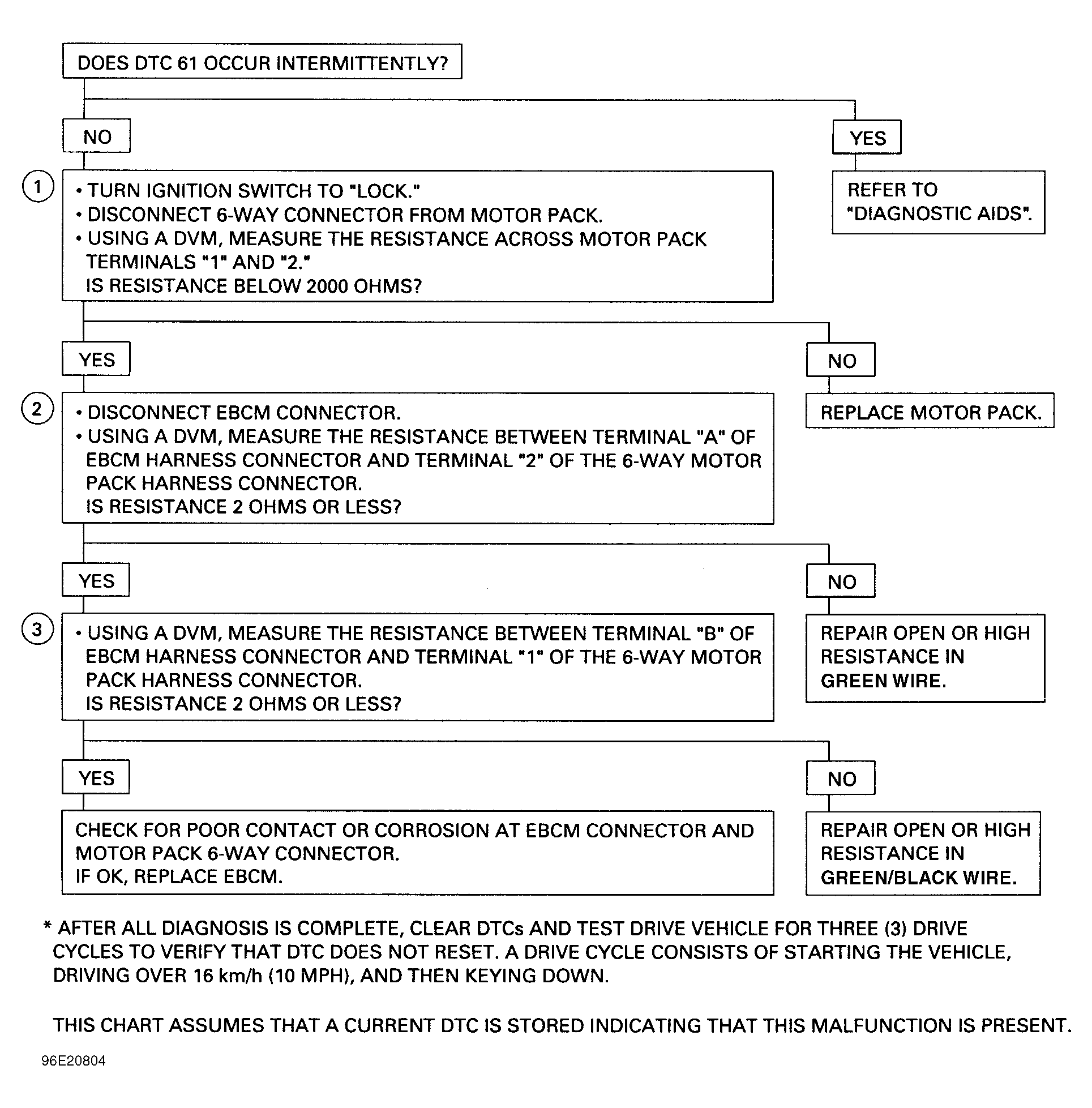

Fig 1: DTC 61: Right Front Motor Circuit Open

G96E20804

Courtesy of ISUZU MOTOR CO.
