Home >> Isuzu >> 1997 >> Rodeo LS, 2.6 E >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> System Tests >> DTC 56: Left Front Motor Circuit Open

DTC 56: Left Front Motor Circuit Open

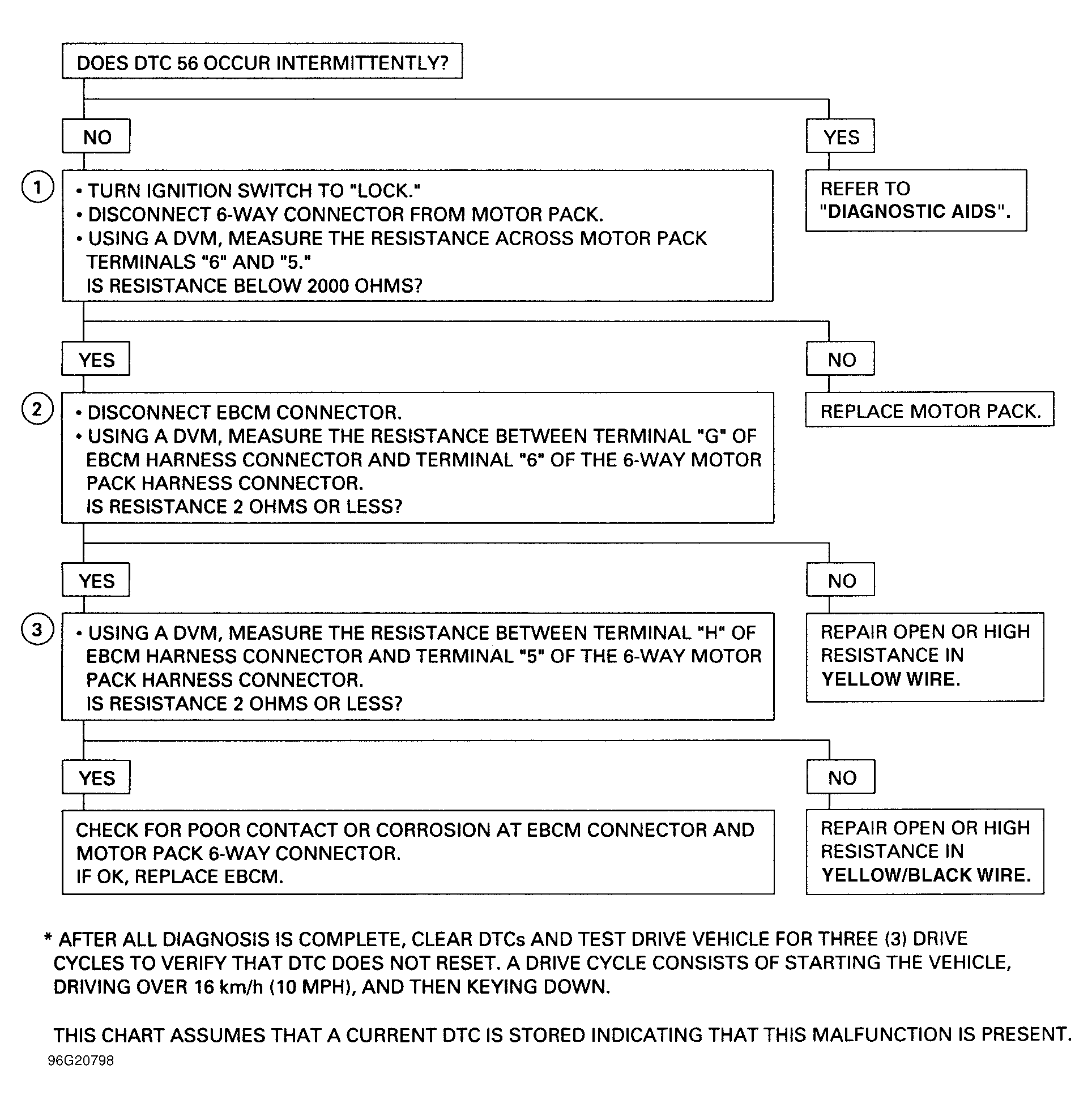

Fig 1: DTC 56: Left Front Motor Circuit Open

G96G20798

Courtesy of ISUZU MOTOR CO.
