DTC 18: Abs Enable Relay Circuit Shorted To Battery

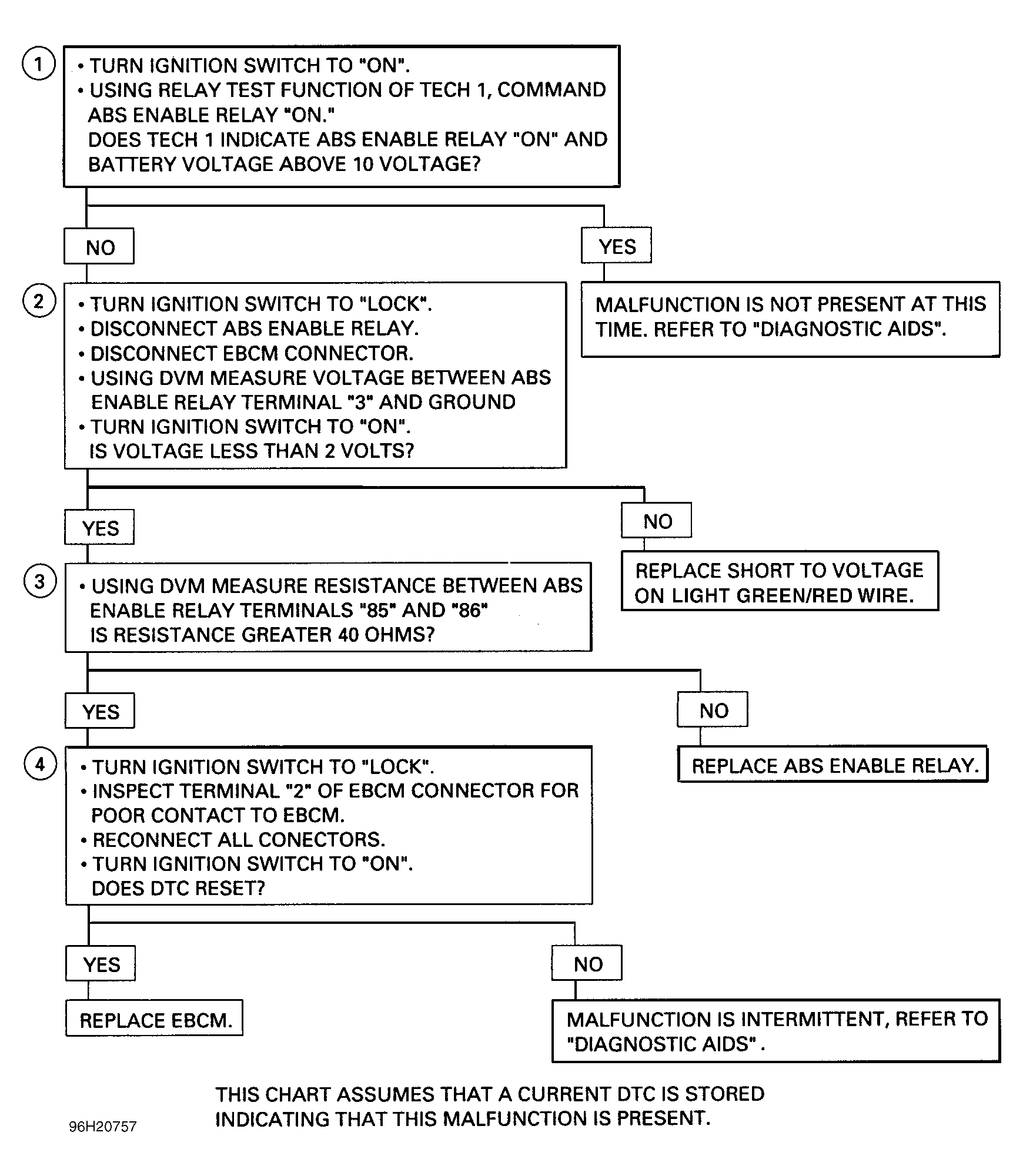

Fig 1: DTC 18: ABS Enable Relay Circuit Shorted To Battery

G96H20757

Courtesy of ISUZU MOTOR CO.
