DTC 14: Abs Enable Relay Contact Circuit Open

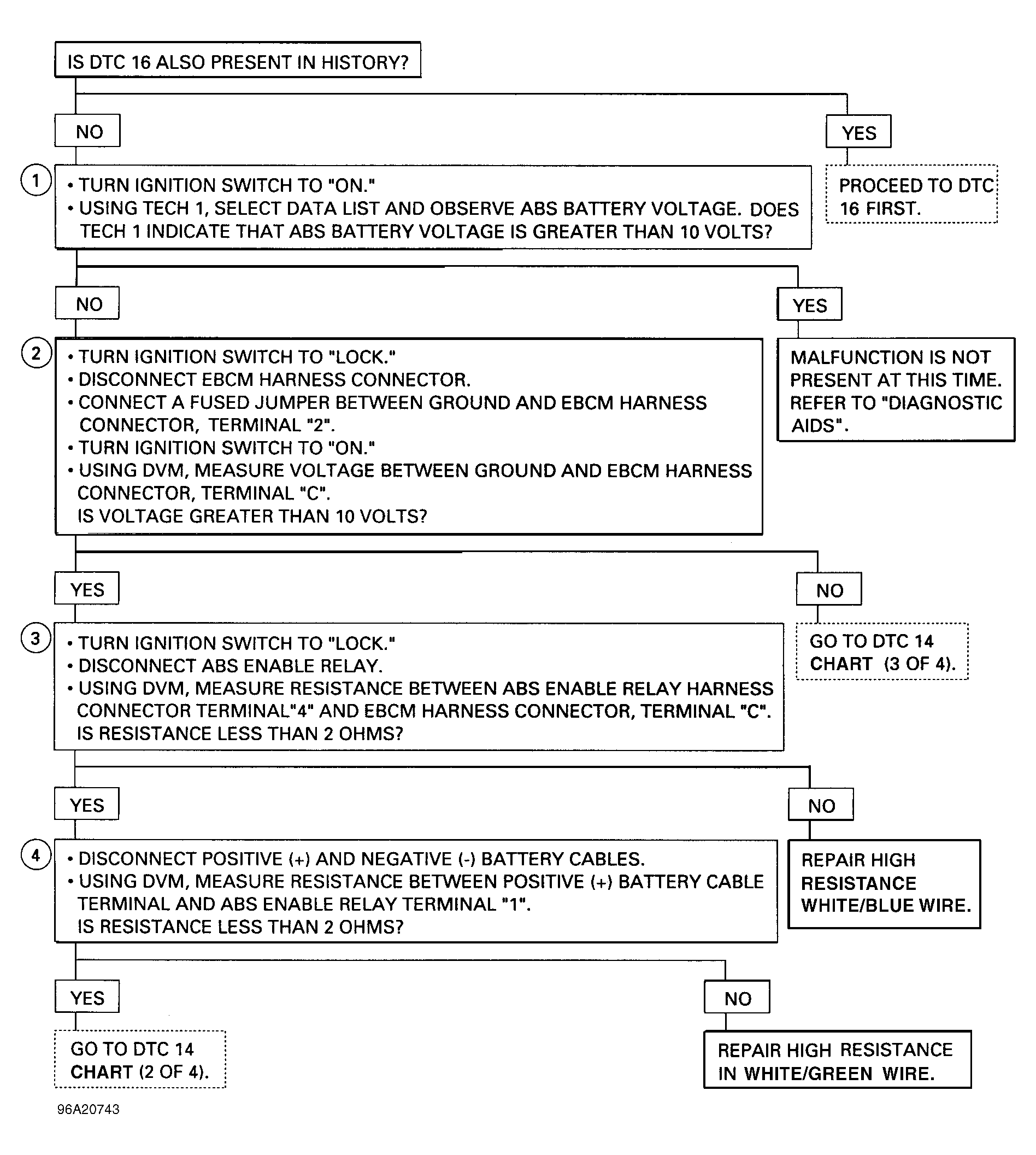

Fig 1: DTC 14: ABS Enable Relay Contact Circuit Open (1 Of 4)

Courtesy of ISUZU MOTOR CO.

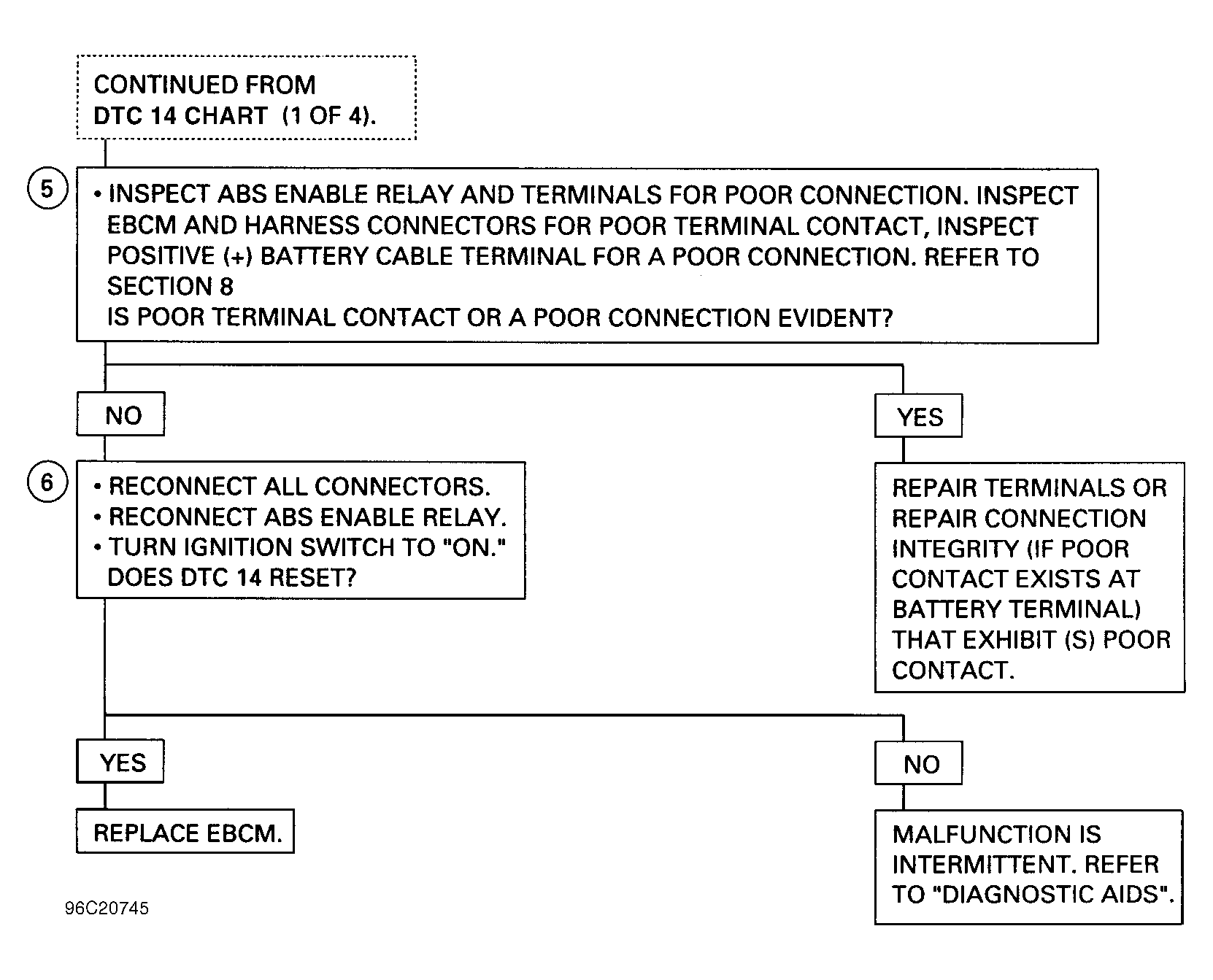

Fig 2: DTC 14: ABS Enable Relay Contact Circuit Open (2 Of 4)

Courtesy of ISUZU MOTOR CO.

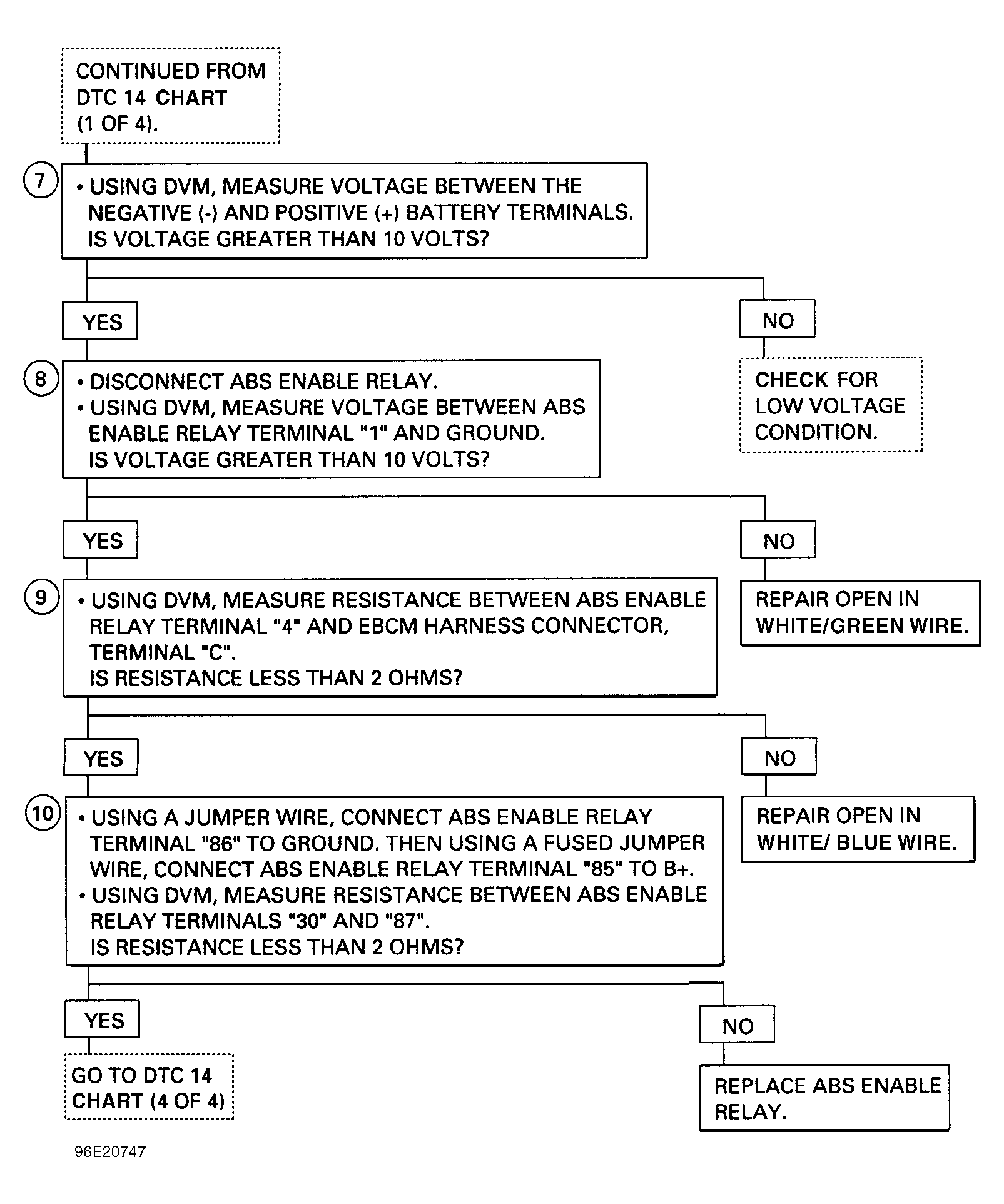

Fig 3: DTC 14: ABS Enable Relay Contact Circuit Open (3 Of 4)

Courtesy of ISUZU MOTOR CO.

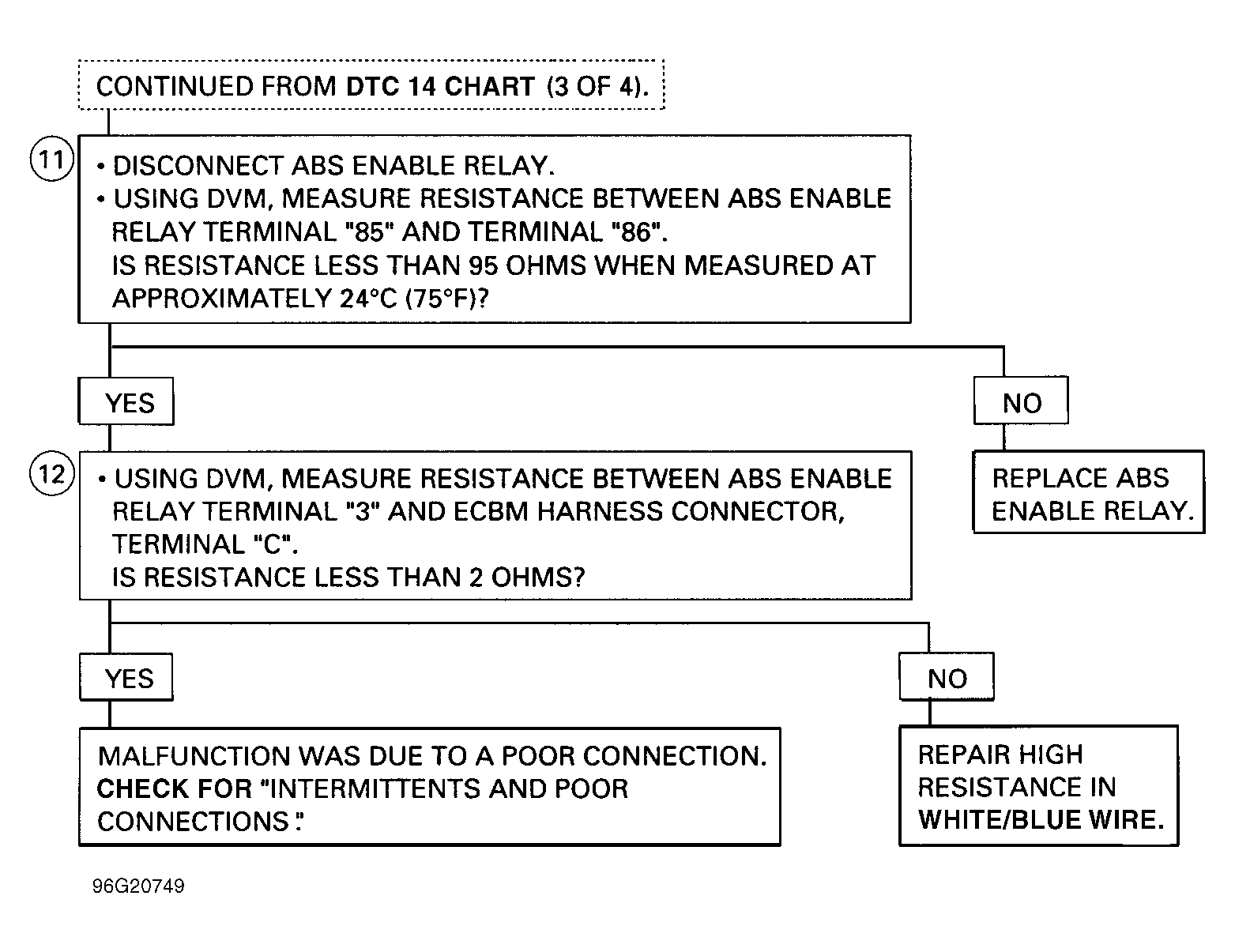

Fig 4: DTC 14: ABS Enable Relay Contact Circuit Open (4 Of 4)

Courtesy of ISUZU MOTOR CO.
