DTC 8-2: Abs Control Unit (CPU Comparison)

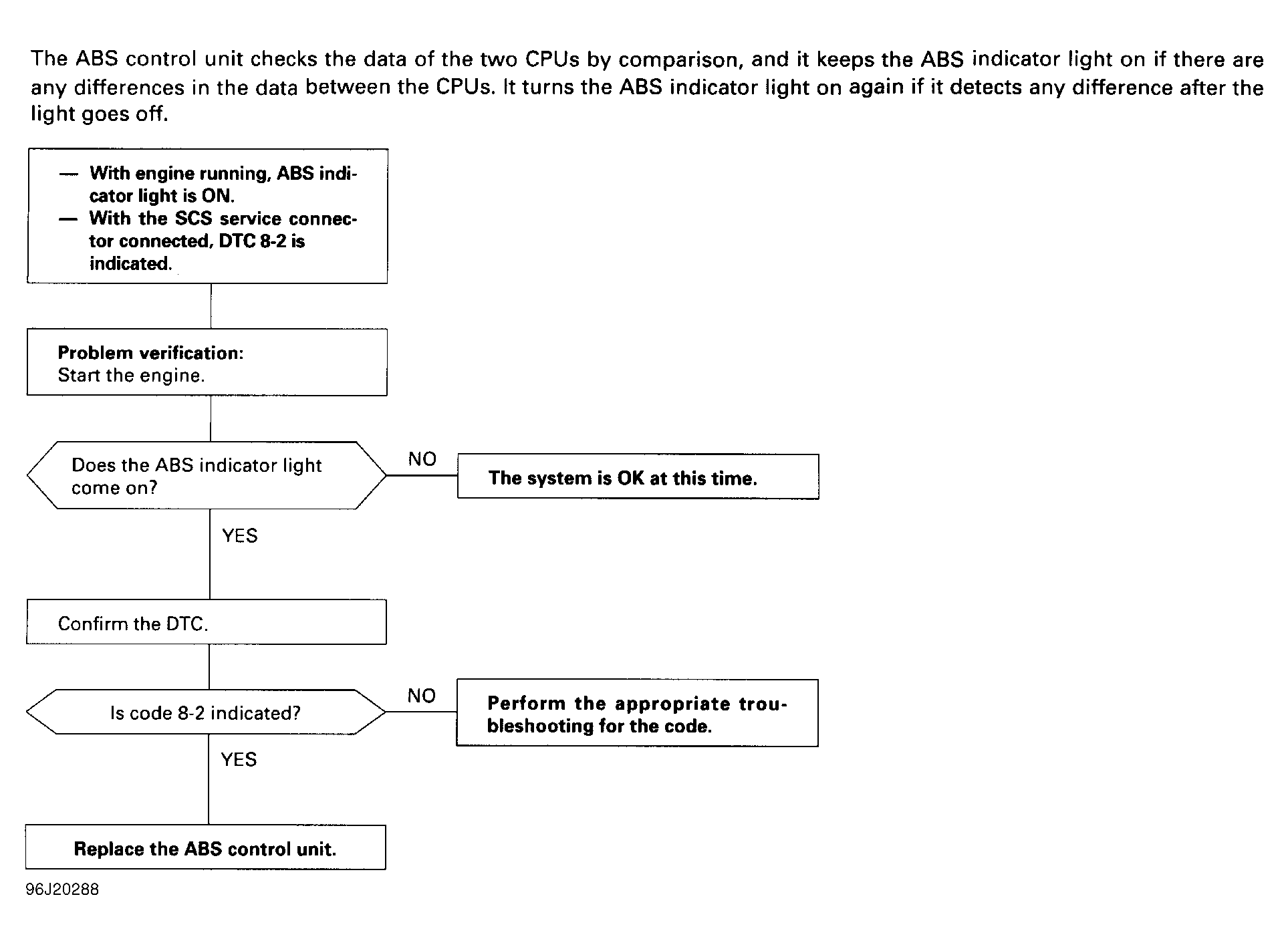

Fig 1: DTC 8-2: ABS Control Unit (CPU Comparison)

G96J20288

Courtesy of AMERICAN HONDA MOTOR CO., INC.
