4L30-E A/T & CONTROL MODULE IDENTIFICATION CHART

TECHNICAL SERVICE BULLETIN

Reference Number(s): SB96-05-L001

4L30-E AUTOMATIC TRANSMISSION/TRANSMISSION CONTROL MODULE IDENTIFICATION CHART

Model(s): 1990-95 Isuzu Trooper; 1991-95.5 Isuzu Rodeo

Group: Transmission

Bulletin No.: SB96-05-L001

Date: January 1996

APPLICABLE VEHICLES

1990-91 Trooper II (KT), 1992-95 Trooper (UX), 1991-95.5 Rodeo (UC) models equipped with 4L30-E automatic transmission.

SERVICE INFORMATION

When replacing 4L30-E automatic transmissions or transmission control modules (TCMs), it is important to order the appropriate replacement parts. Failure to pair the proper TCM or transmission with its proper counterpart can result in poor transmission performance.

This Service Bulletin provides important identification data to ensure that a proper pairing of transmission and TCM is always made. See Fig 1 through Fig 3 for the typical location of the identification plate on both the transmission and TCM. See Fig 1 for the typical location on transmissions and TCMs manufactured by Bosch for 1990-93 MY vehicles. See Fig 2 and Fig 3 for the typical location on transmissions and TCMs manufactured by Delco Electronics for 1994 and 1995-95.5 MY vehicles respectively.

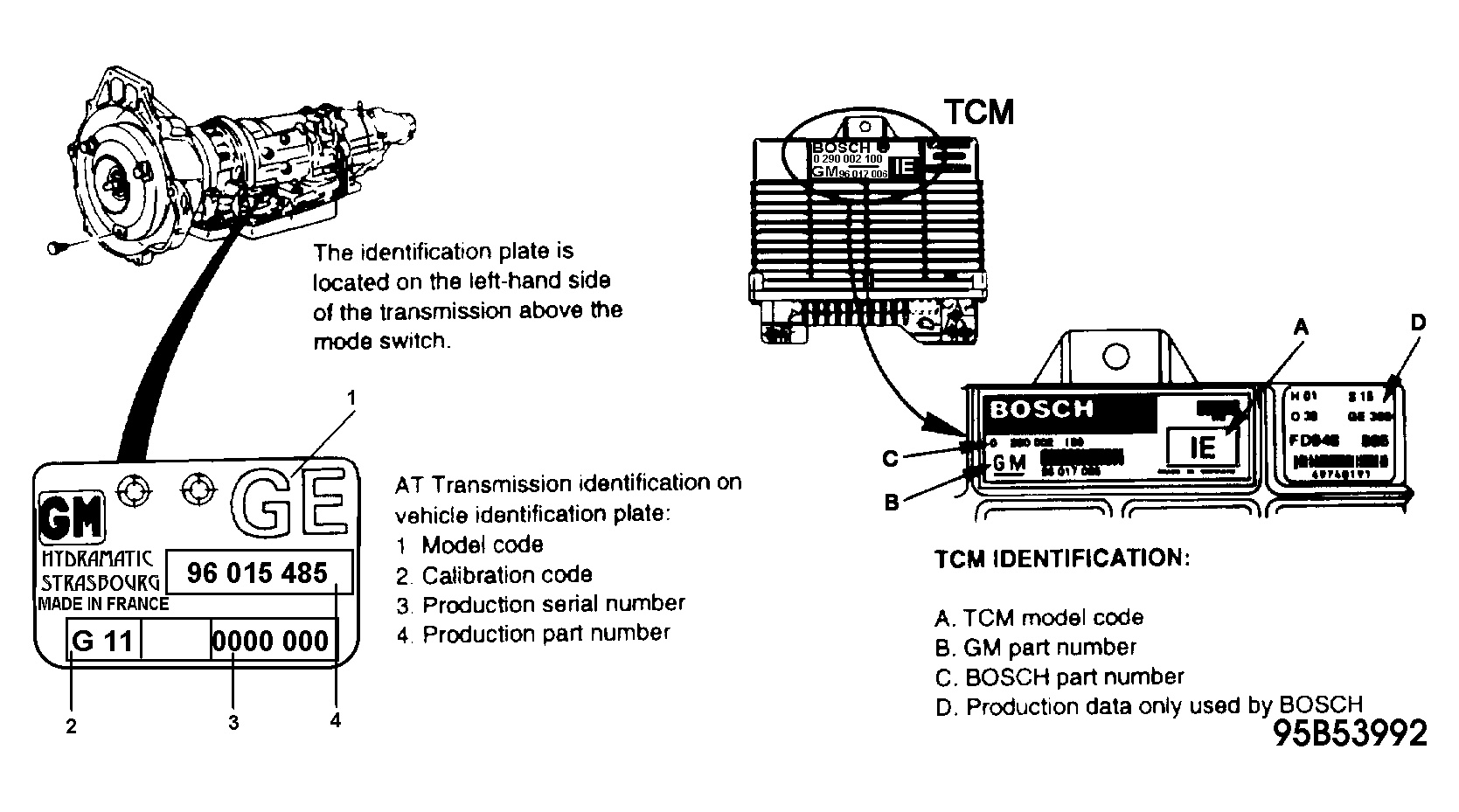

Fig 1: Transmission & TCM Identification - Bosch 1990-93

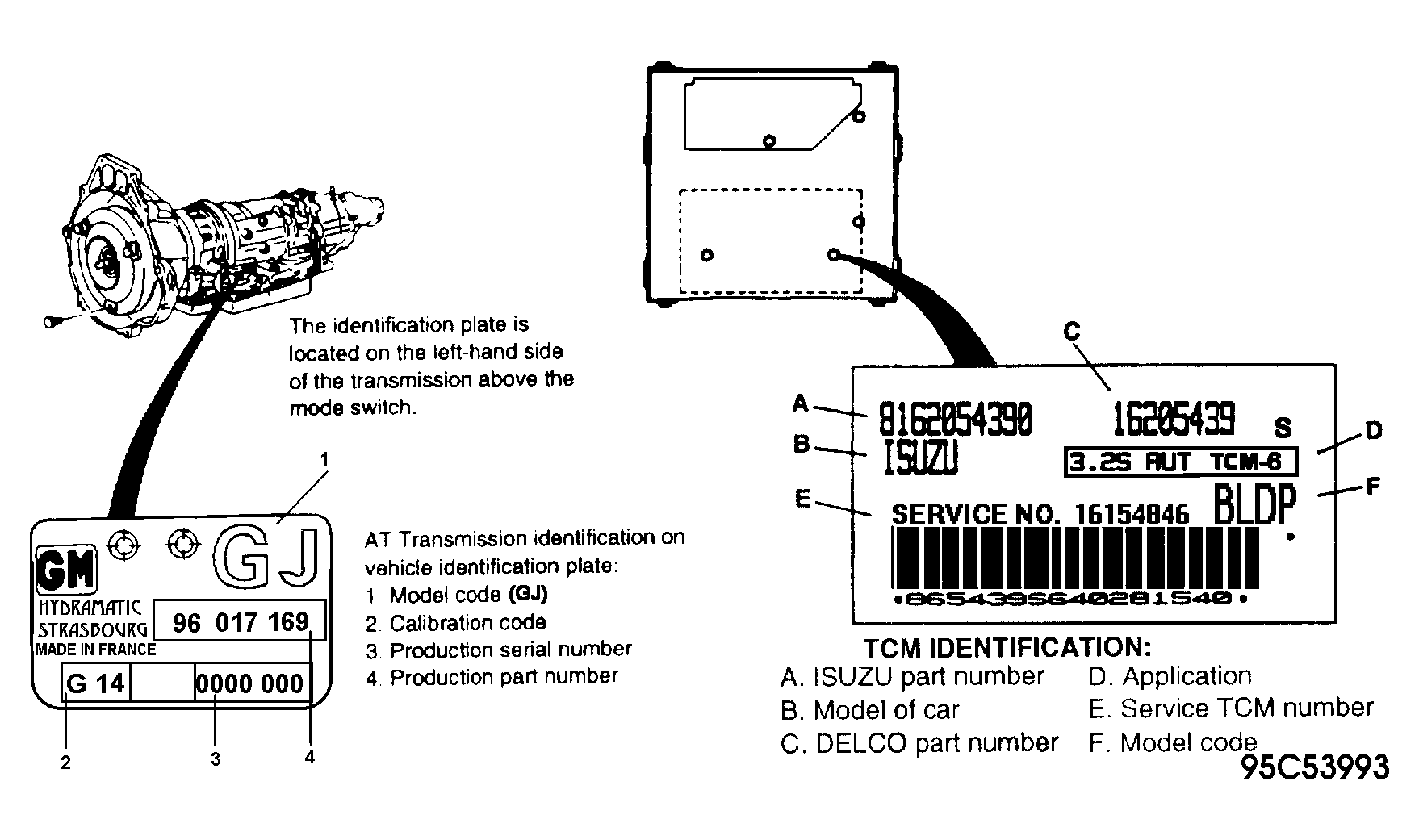

Fig 2: Transmission & TCM Identification - Delco 1994

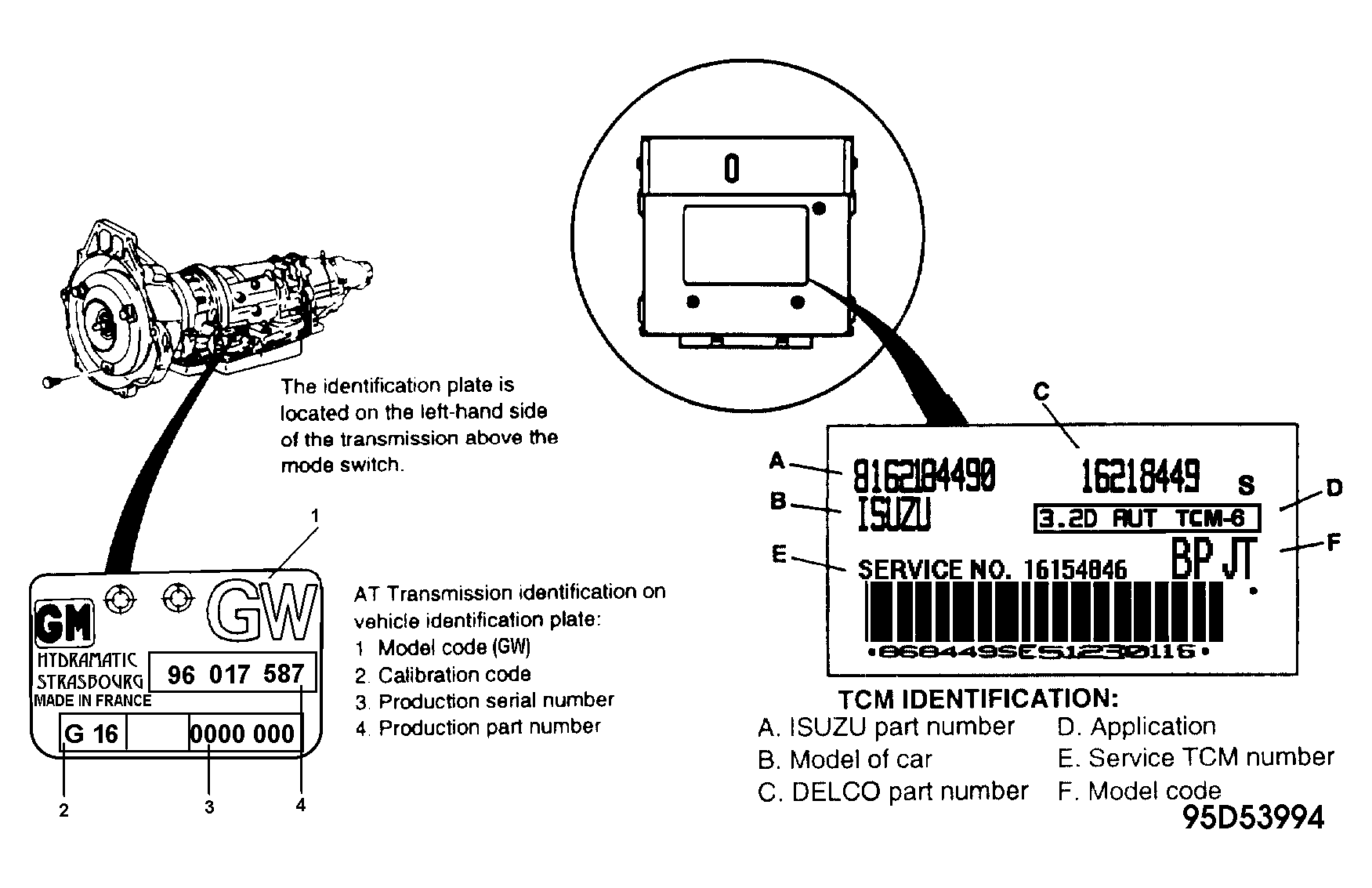

Fig 3: Transmission & TCM Identification - Delco 1995-95.5

The following chart provides an extensive listing of 4L30-E automatic transmissions and their TCM counterparts. When ordering a replacement part, use the chart as follows:

Select the appropriate vehicle model, applied date, and engine type in the APPLICATION column.
Read the listed transmission model code(s) for that application in the TRANSMISSION MODEL CODE column.
Read the actual AIPDN part number for that transmission in the TRANSMISSION PART NUMBER column.
Read the proper TCM model code(s) for that application in the TCM MODEL CODE column.
Read the actual AIPDN part number for that TCM in the TCM PART NUMBER column.

For parts ordering information, refer to AIPDN Technical Bulletin AIPDN-TEC-LV1-96.

TROOPER (KT) 4L30-E AUTOMATIC TRANSMISSION/TCM

Application	Trans Model Code	Trans Part Number	TCM Model Code	TCM Part Number
Trooper (KT) Applied Date 8909-9005 2.8L V6	GA	2-90241- 087-0 (Reman)	IA, IF	8-96042-010-0
Trooper (KT) Applied Date 9006-9109 2.8L V6	GG, FC	8-96016- 772-0	IA, IF	8-96042-010-0

Fig 4: TROOPER (UX) 4L30-E AUTOMATIC TRANSMISSION/TCM TABLE

Fig 5: RODEO (UC) 4L30-E AUTOMATIC TRANSMISSION/TCM TABLE (1 OF 2)

Fig 6: RODEO (UC) 4L30-E AUTOMATIC TRANSMISSION/TCM TABLE (2 OF 2)
