Code 7 - Isolation Valve Output Missing/Defective Anti-Lock Valve Wiring

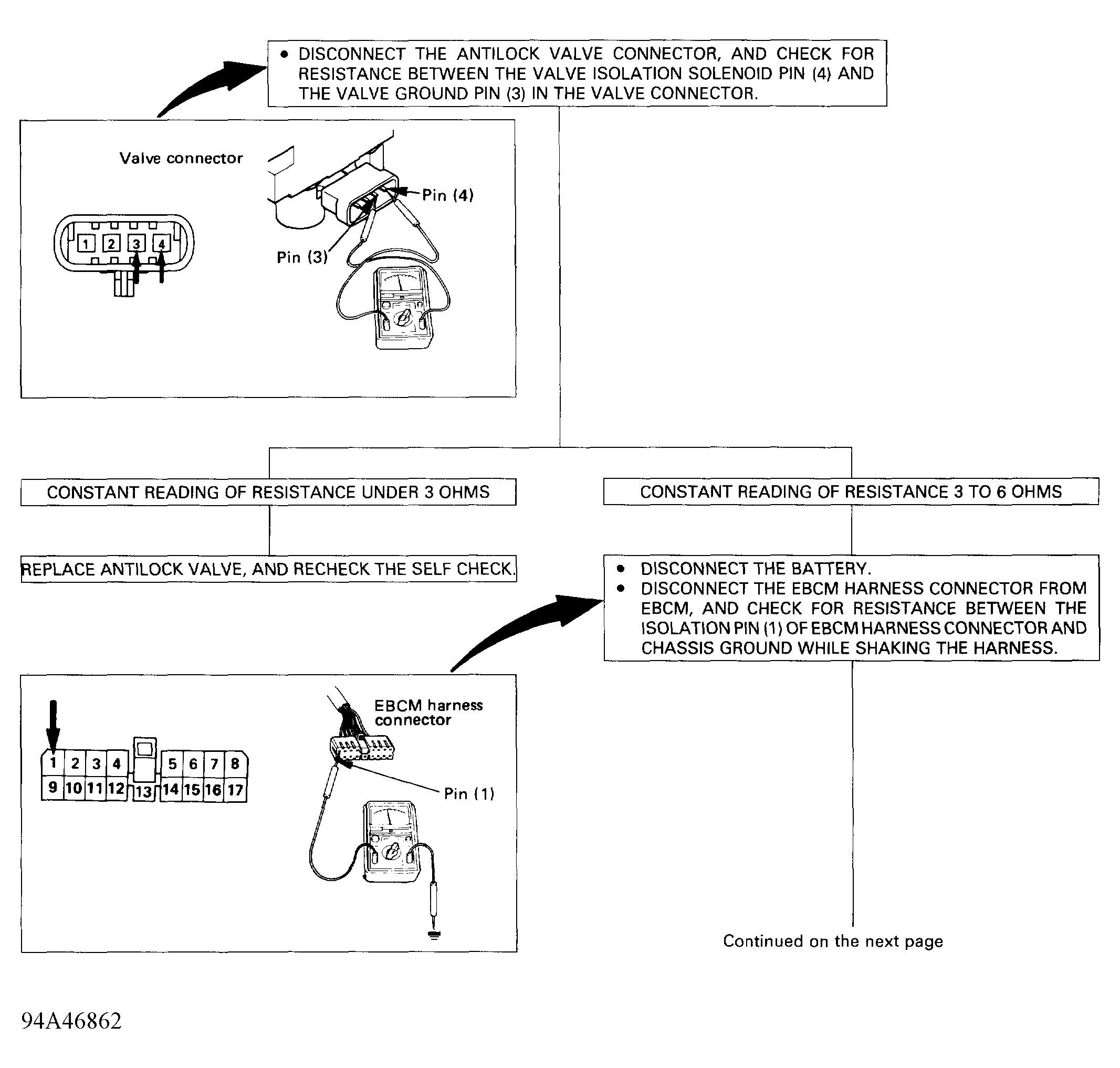

Fig 1: Code 7 - Isolation Valve Output Missing Or Defecective Anti-Lock Valve Wiring (1 Of 3)

Courtesy of ISUZU MOTOR CO.

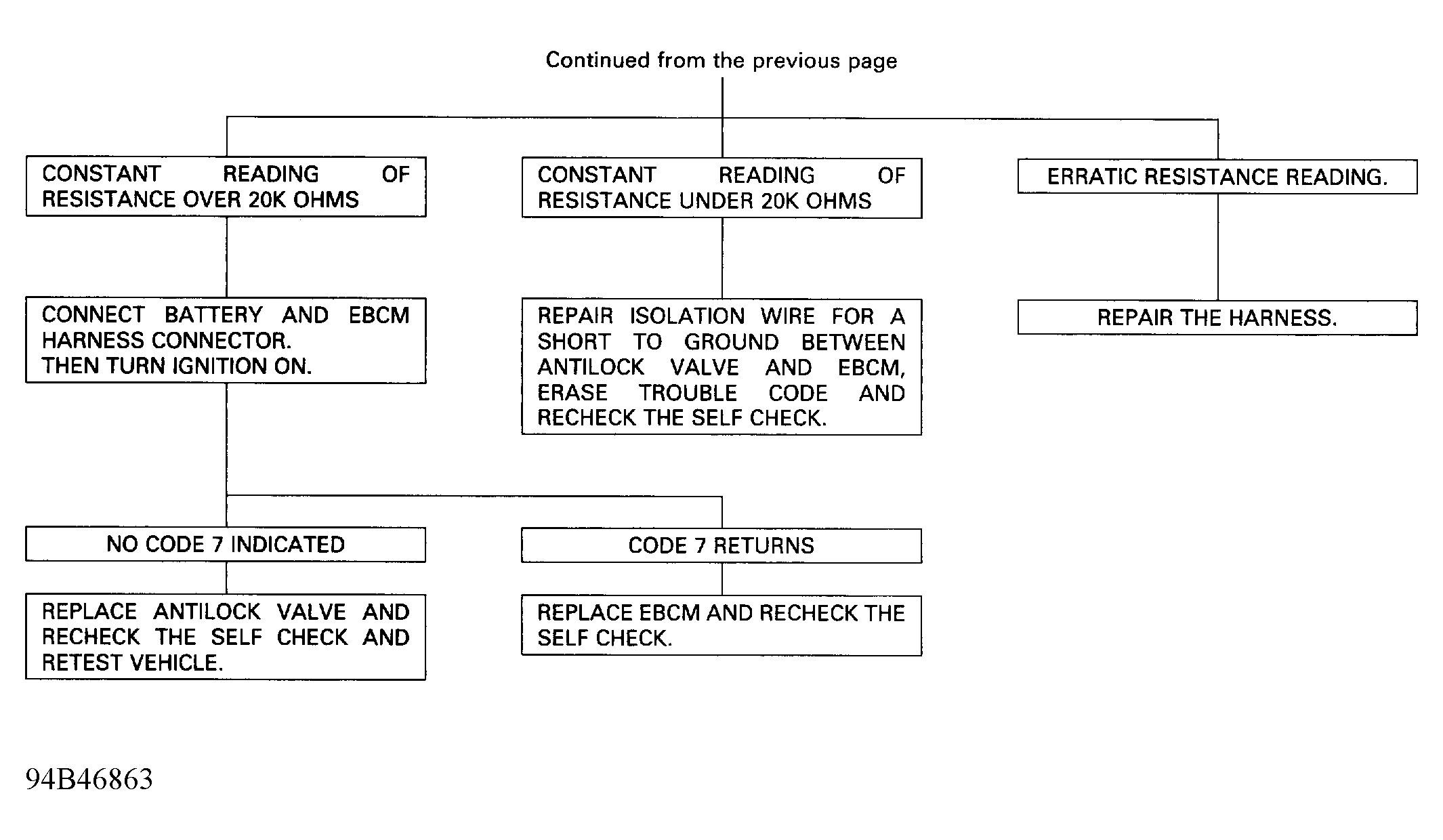

Fig 2: Code 7 - Isolation Valve Output Missing Or Defecective Anti-Lock Valve Wiring (2 Of 3)

Courtesy of ISUZU MOTOR CO.

Fig 3: Code 7 - Isolation Valve Output Missing Or Defecective Anti-Lock Valve Wiring (3 Of 3)

Courtesy of ISUZU MOTOR CO.
