Code 2 - Open Isolation Valve Circuit Or Malfunctioning ECM

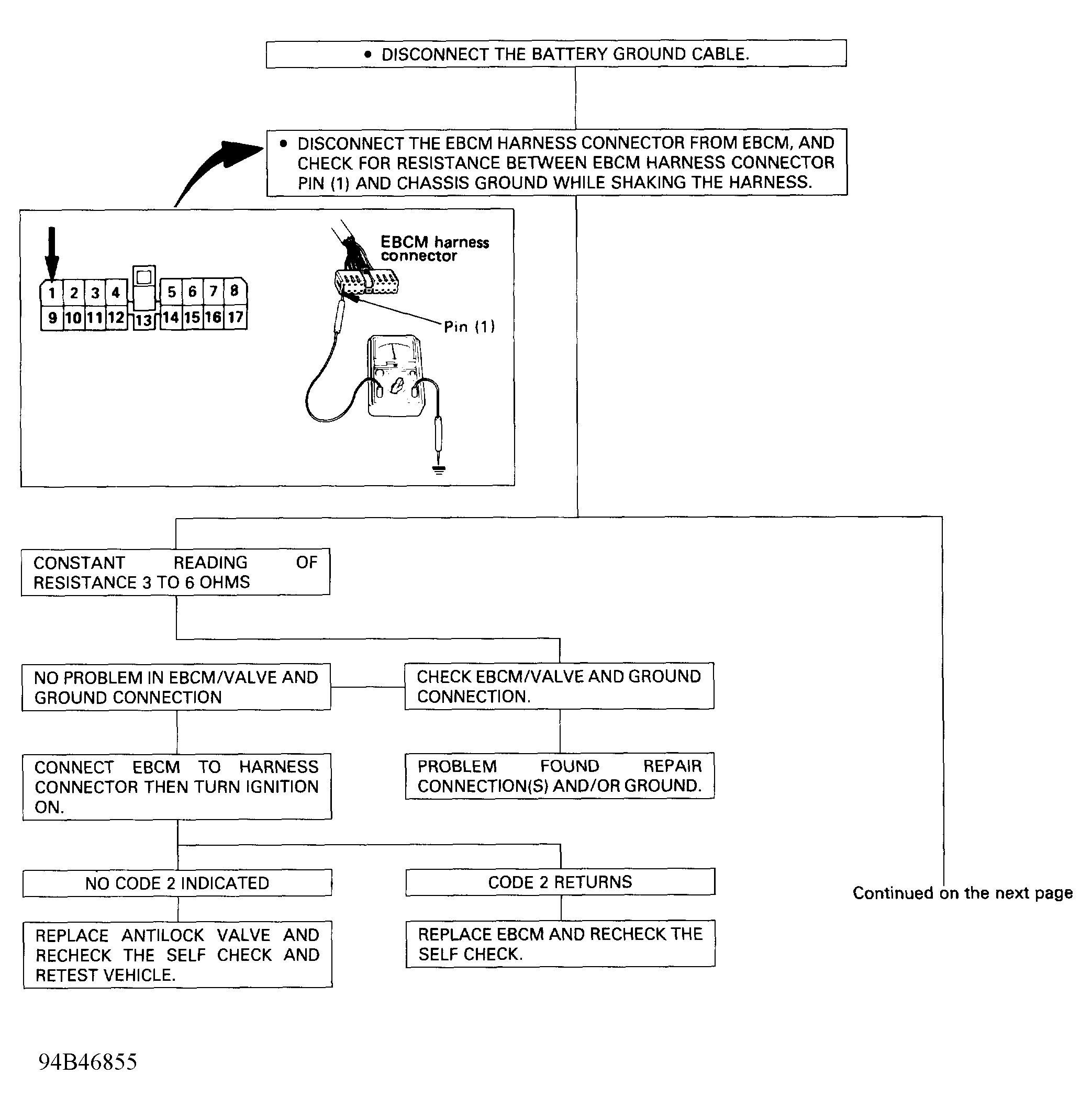

Fig 1: Code 2 - Open Isolation Valve Ckt. Or Malfunctioning ECM (1 Of 3)

Courtesy of ISUZU MOTOR CO.

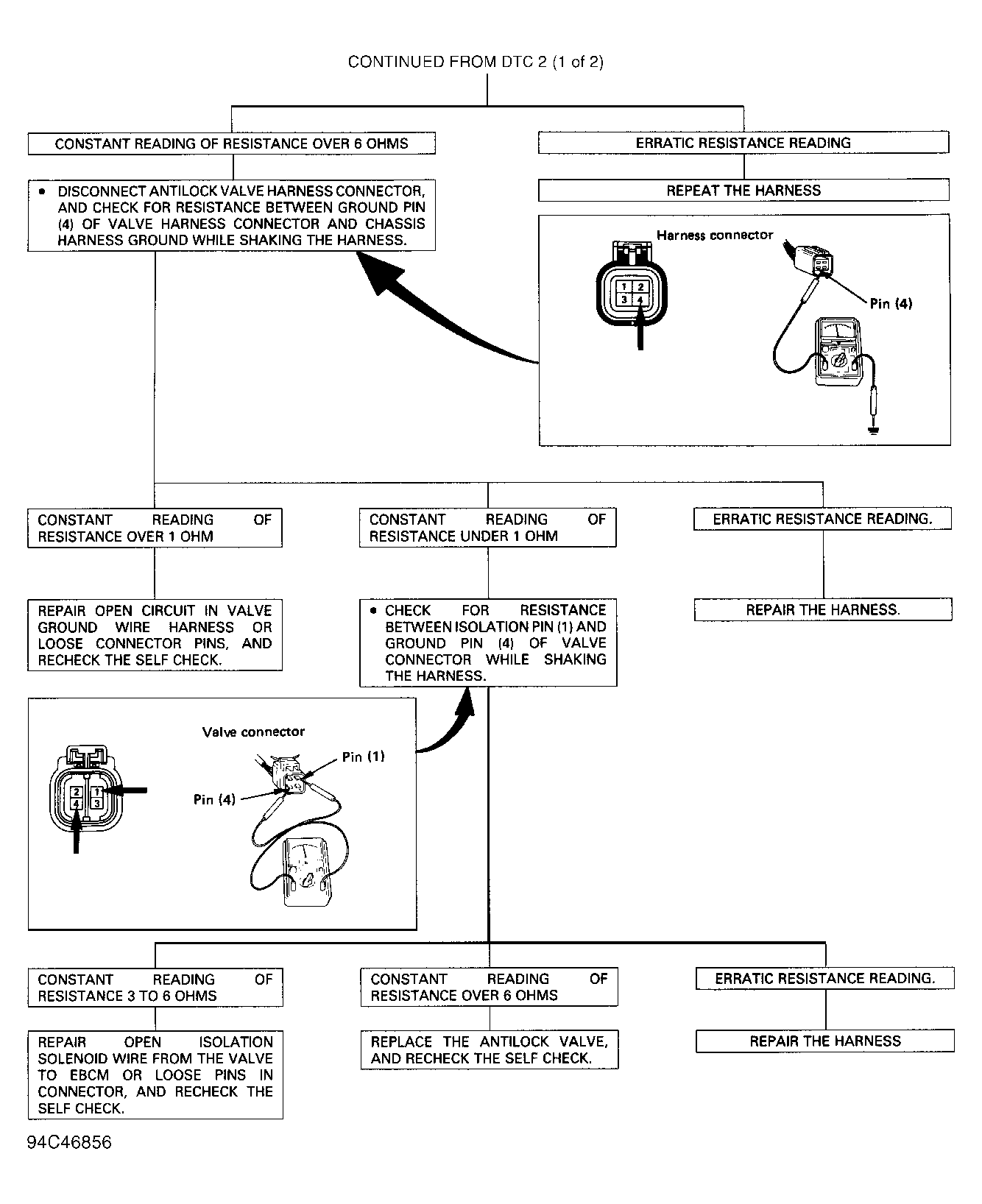

Fig 2: Code 2 - Open Isolation Valve Ckt. Or Malfunctioning ECM (2 Of 3)

Courtesy of ISUZU MOTOR CO.

Fig 3: Code 2 - Open Isolation Valve Ckt. Or Malfunctioning ECM (3 Of 3)

Courtesy of ISUZU MOTOR CO.
