Chart No. 4 - Idle Switch & Map Sensor Circuit Check

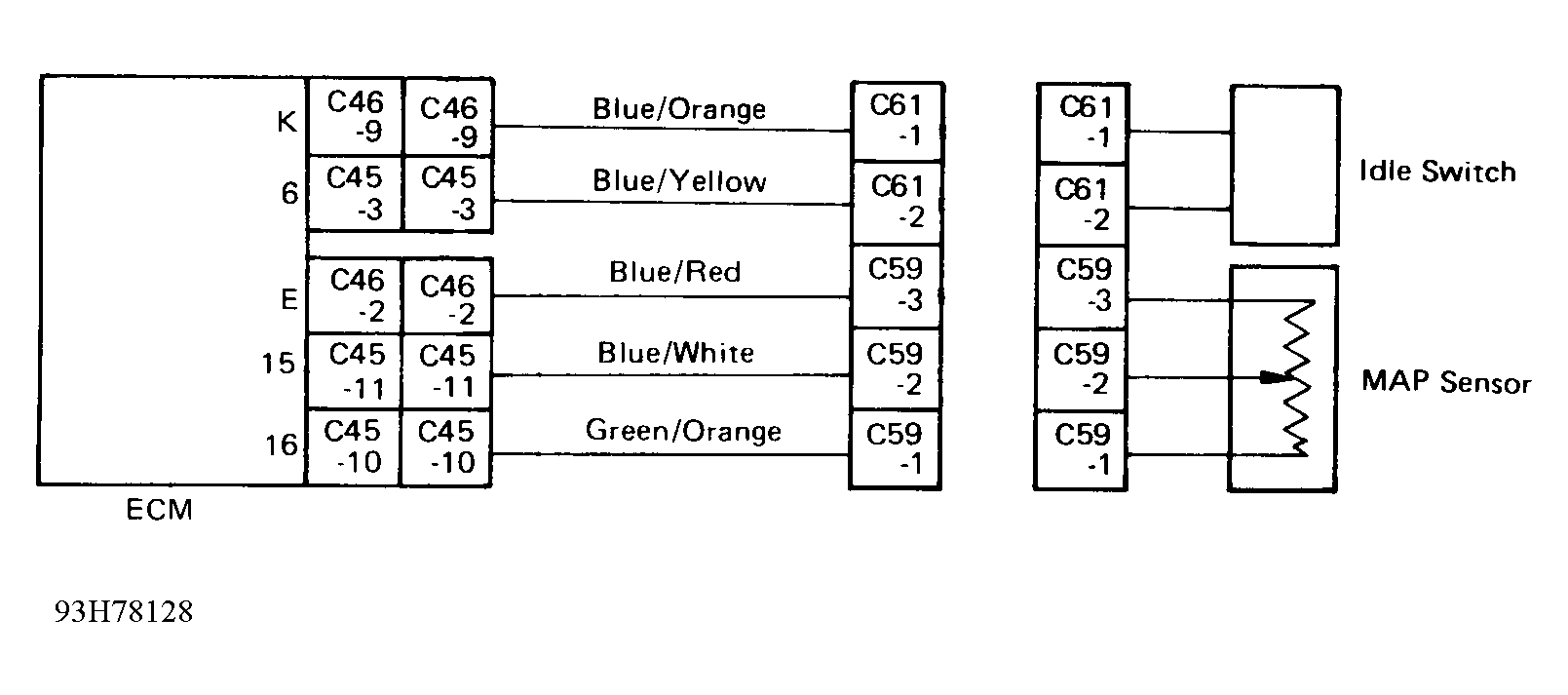

Fig 1: Chart 4 - Schematic

G93H78128

Courtesy of ISUZU MOTOR CO.

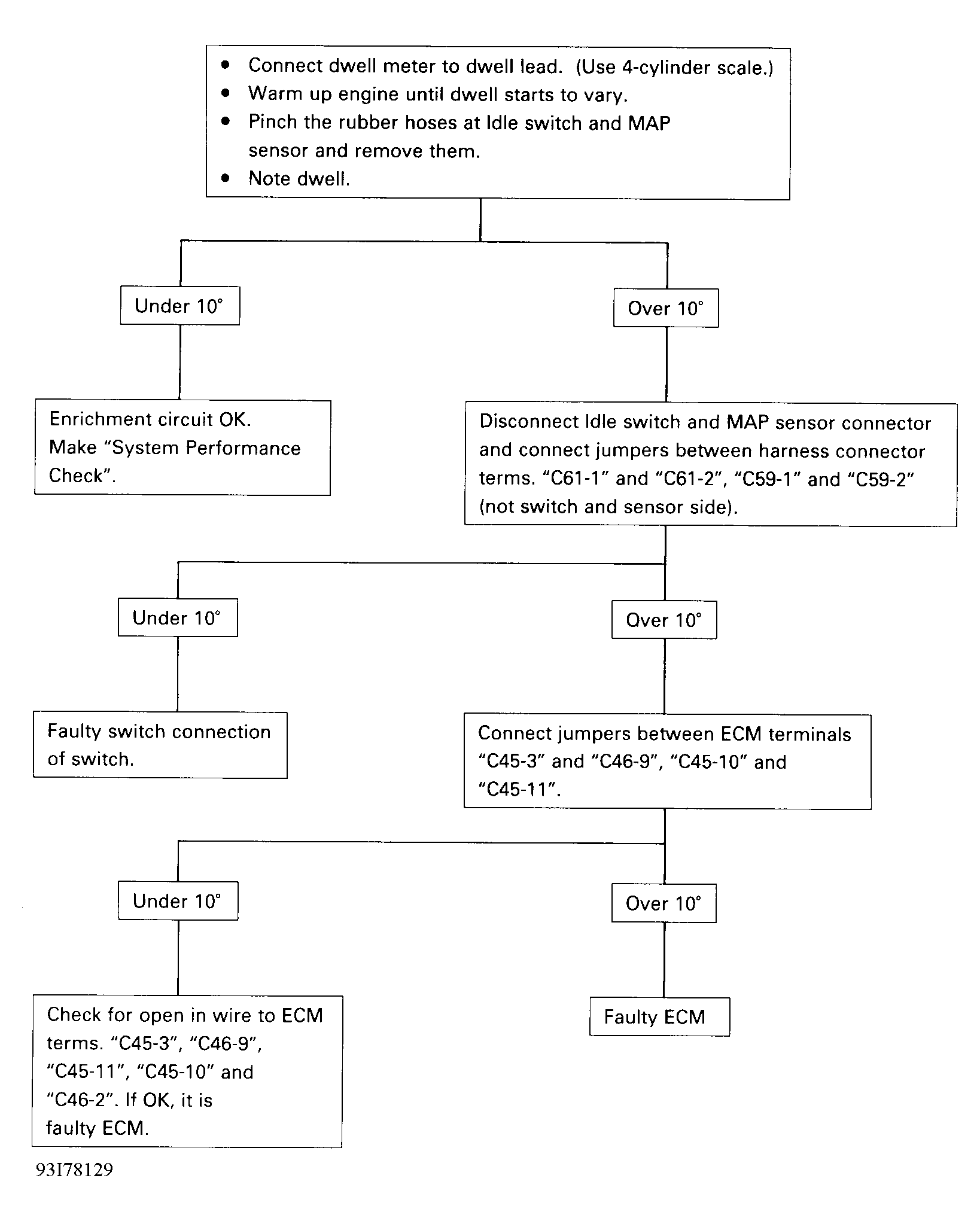

Fig 2: Chart 4 - Diagnostic Flowchart

G93I78129

Courtesy of ISUZU MOTOR CO.
