Chart 2: Cruise Control Set Speed Inoperative

For testing procedure, see Fig 1-Fig 4 . See CONNECTOR IDENTIFICATION  and WIRING DIAGRAMS .

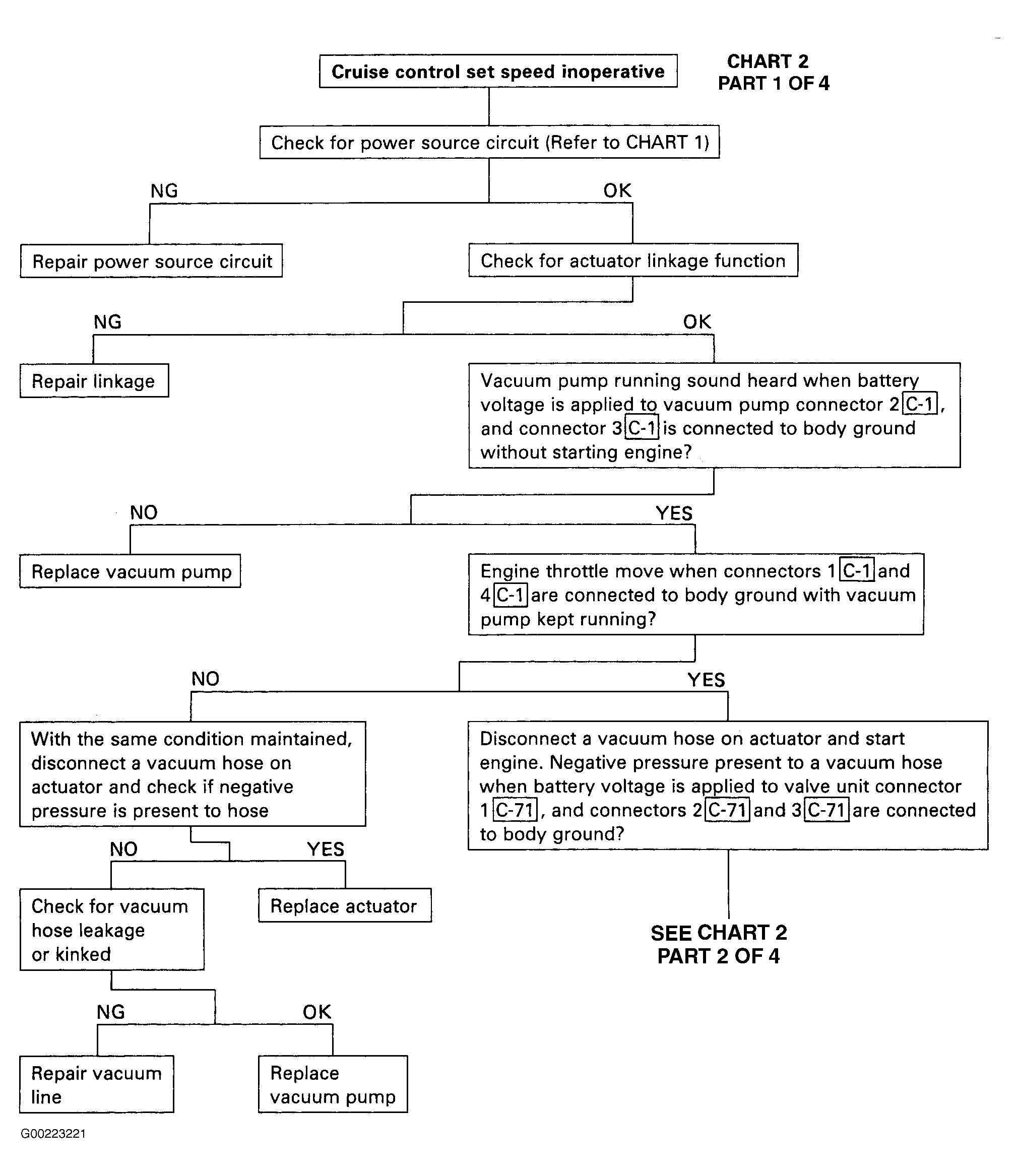

Fig 1: Chart 2: Cruise Control Set Speed Inoperative (1 Of 4)

Courtesy of ISUZU MOTOR CO.

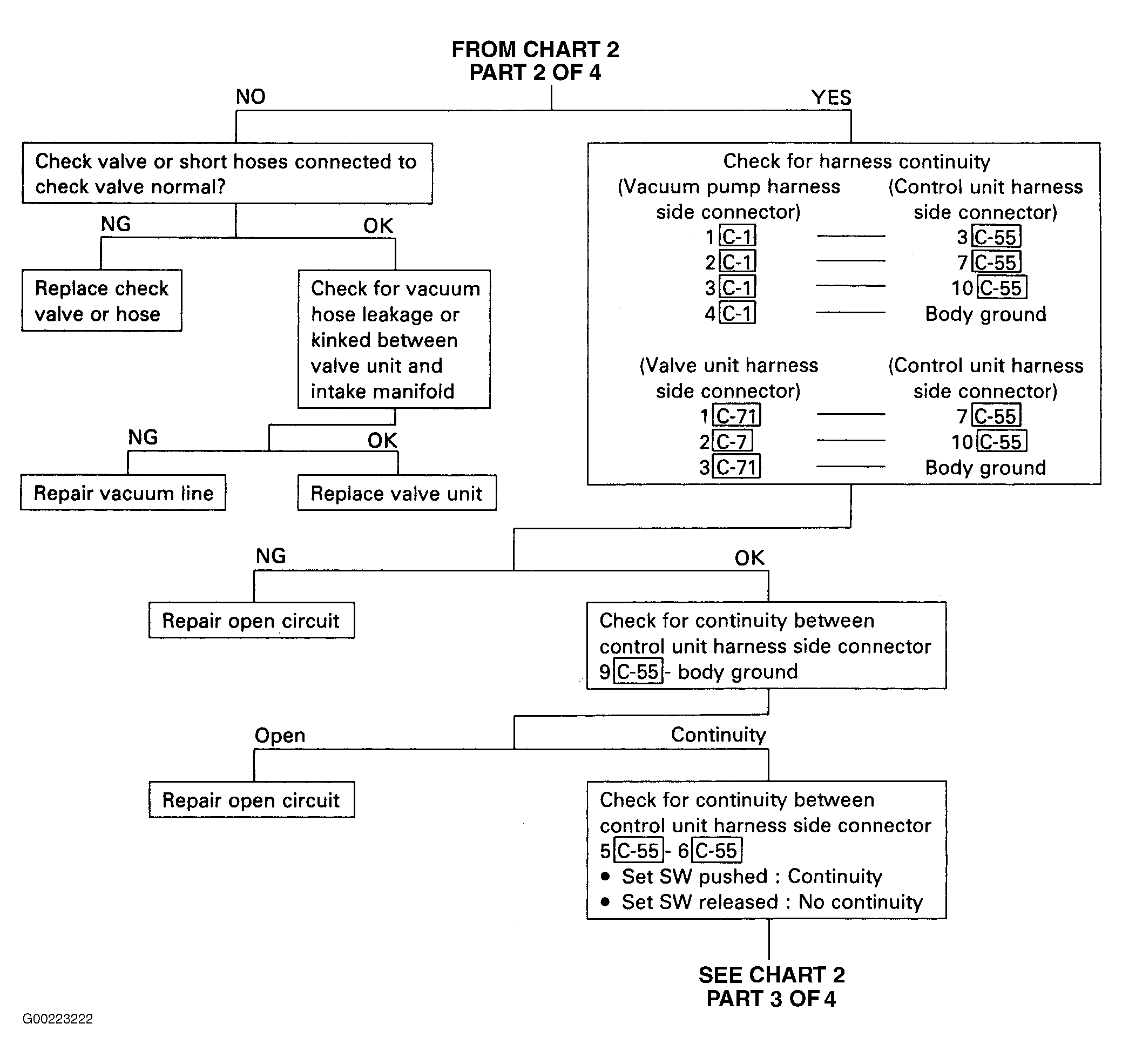

Fig 2: Chart 2: Cruise Control Set Speed Inoperative (2 Of 4)

Courtesy of ISUZU MOTOR CO.

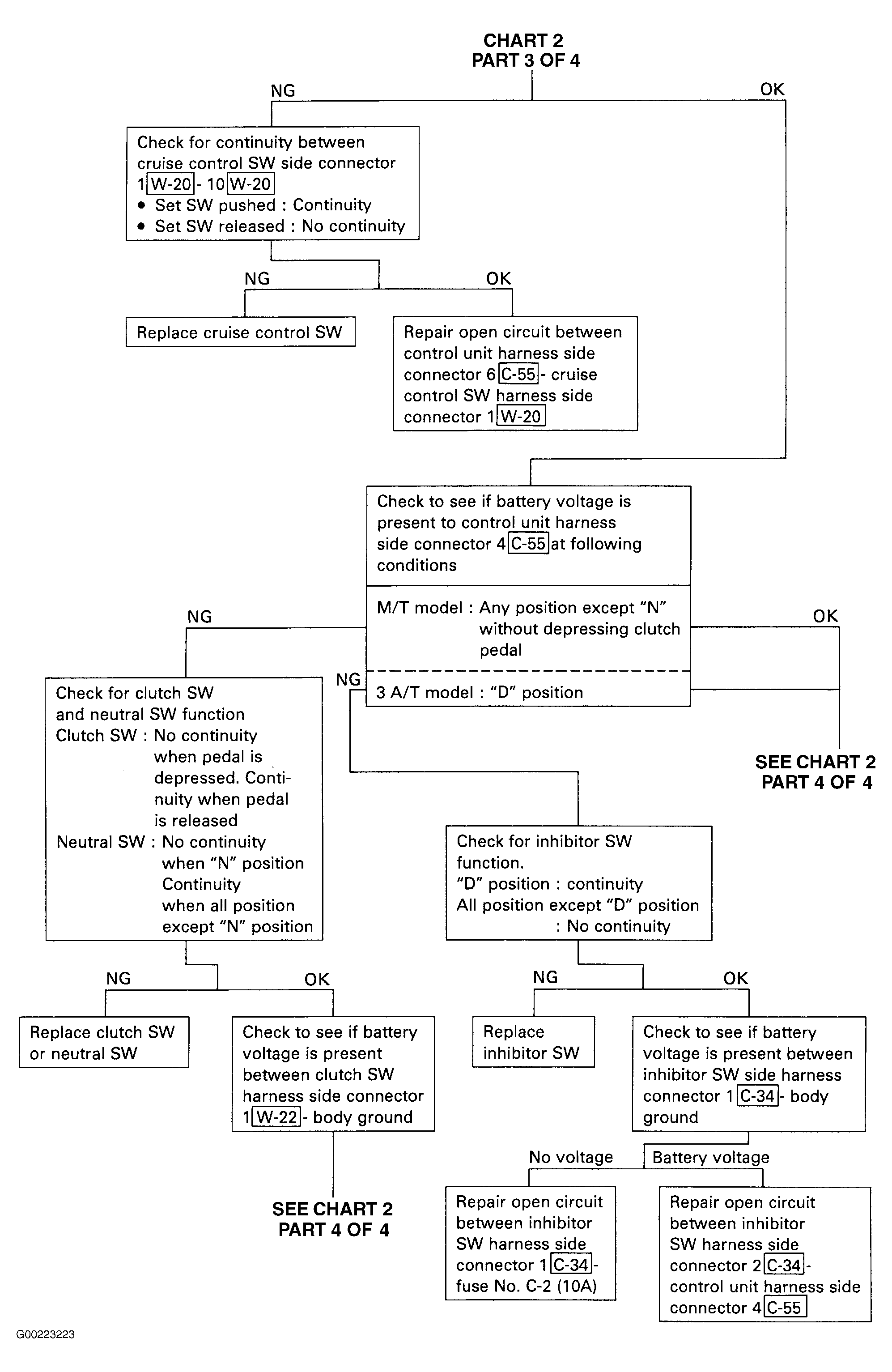

Fig 3: Chart 2: Cruise Control Set Speed Inoperative (3 Of 4)

Courtesy of ISUZU MOTOR CO.

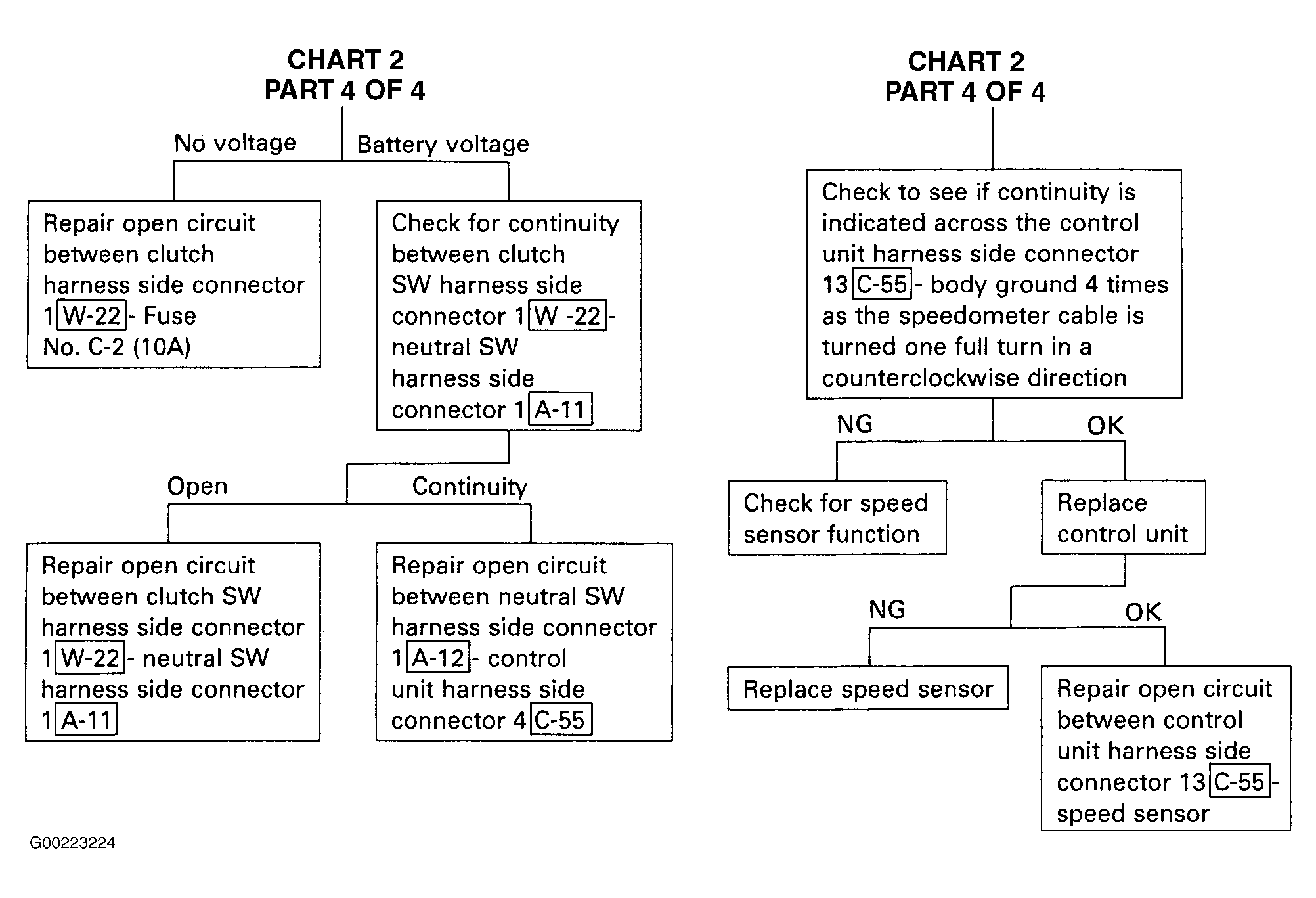

Fig 4: Chart 2: Cruise Control Set Speed Inoperative (4 Of 4)

Courtesy of ISUZU MOTOR CO.
