Test No. 1 - Check Engine Light Inoperative

Fig 1: Test No. 1 Schematic, Check Engine Light Inoperative

Courtesy of ISUZU MOTOR CO.

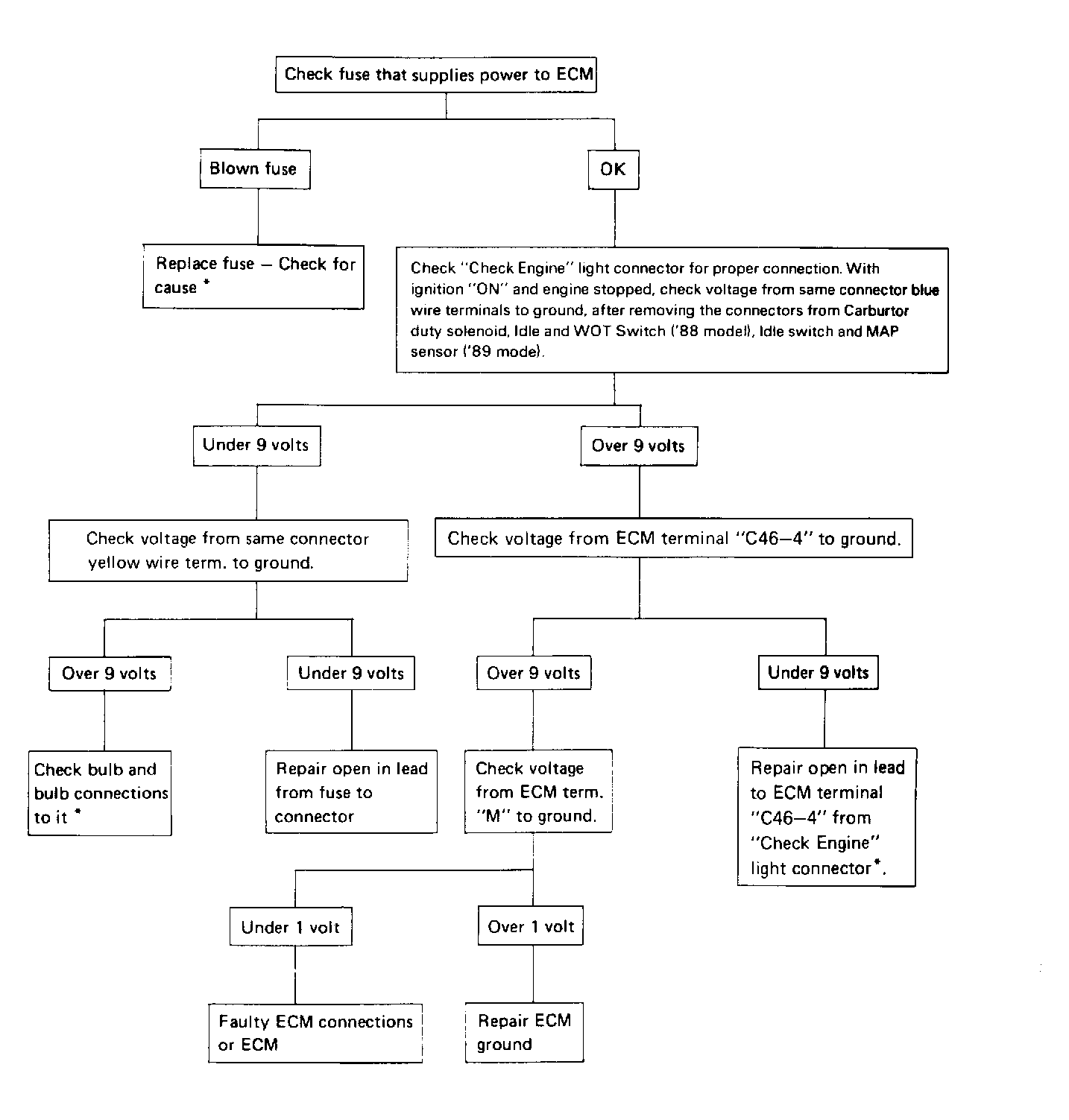

Fig 2: Test No. 1 Flow Chart, Check Engine Light Inoperative

Courtesy of ISUZU MOTOR CO.
