Diagnostic Aids

An intermittent may be caused by a poor connection, rubbing through the wire insulation, or a wire broken inside the insulation. If Hall Effect signal is not received by ECM for 3 seconds, check for poor connections or damaged harness. For intermittent inspection, see INTERMITTENTS in appropriate TESTS W/O CODES article in the ENGINE PERFORMANCE Section.

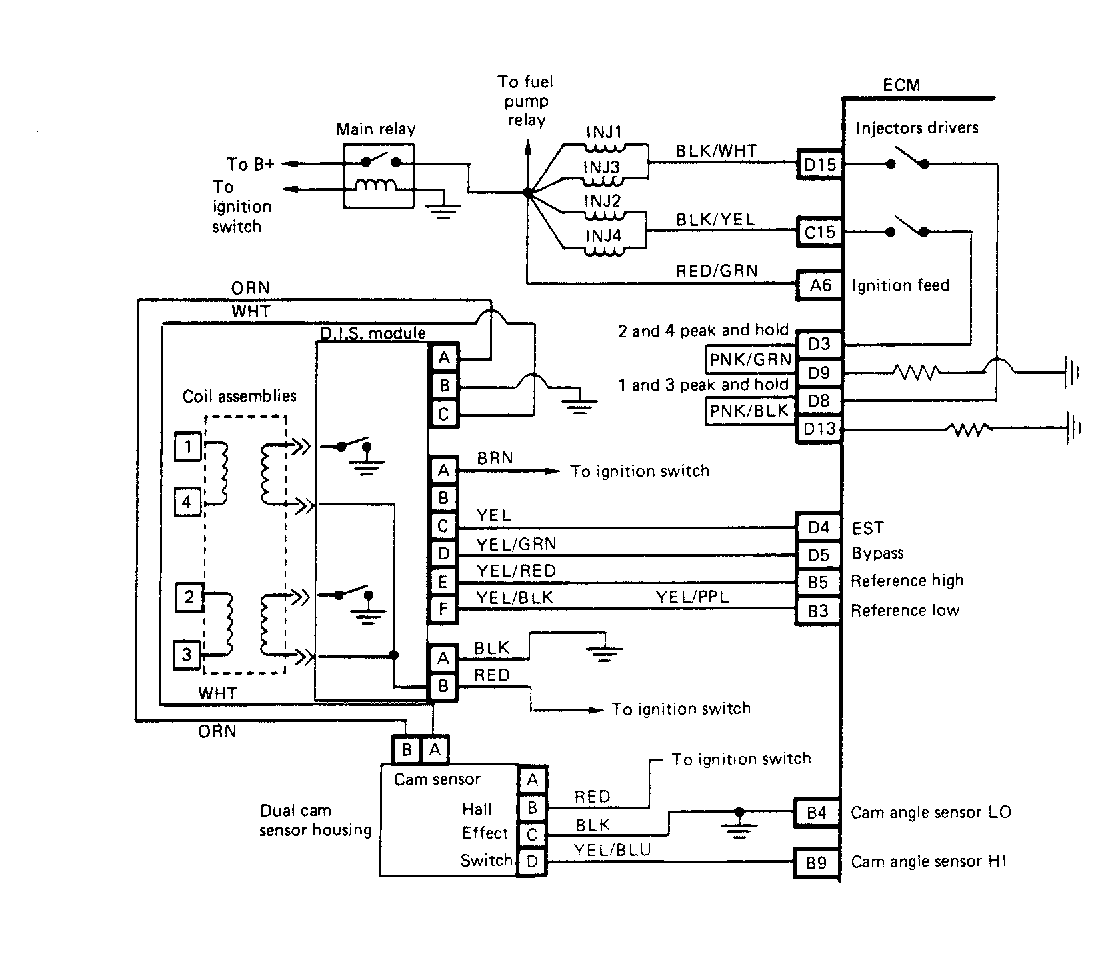

Fig 1: Code No. 41 Schematic (1.6L Turbo) Cam Signal Circuit
G91G16903

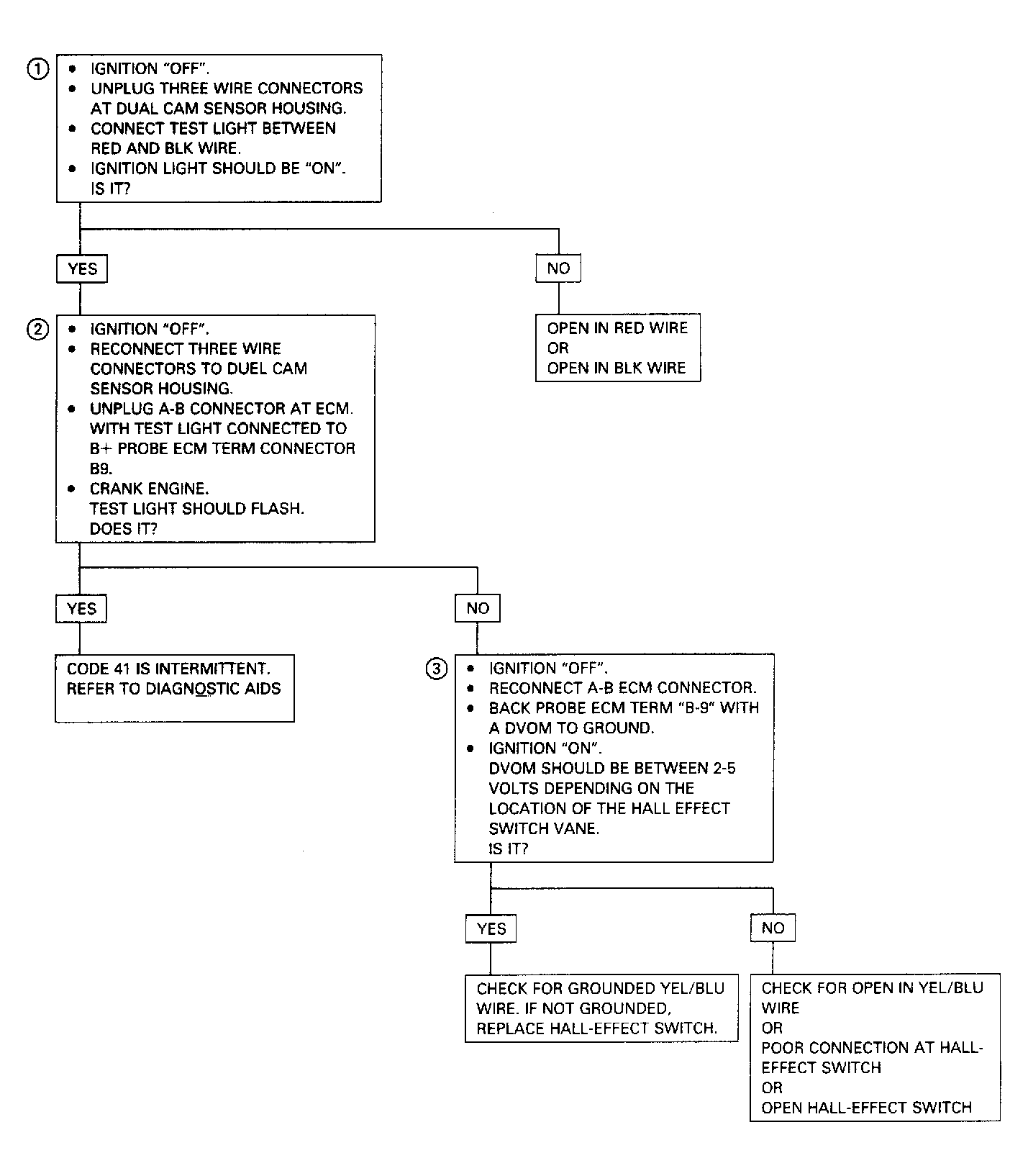

Fig 2: Code No. 41 Flow Chart (1.6L Turbo) Cam Signal Circuit
G91H16904
