Diagnostic Aids

Improper fuel system pressure will contribute to following problems:

• Cranks, but will not run
• Code 44 or 45
• Cutting out or "feels" like ignition problem
• Hesitation, loss of power or fuel economy

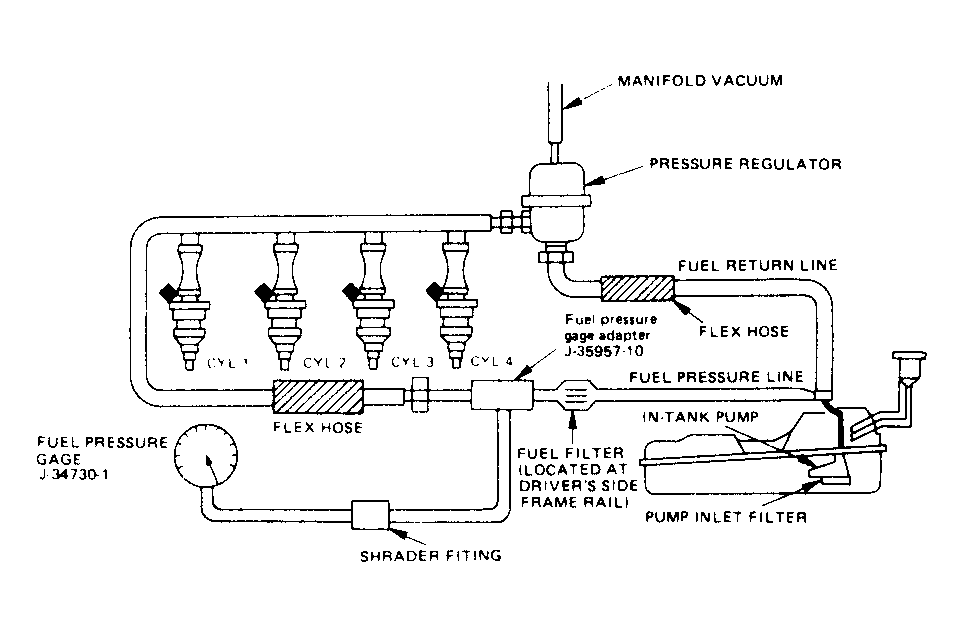

Fig 1: Chart A-7 Fuel System Diagram (Turbo)

Courtesy of ISUZU MOTOR CO.

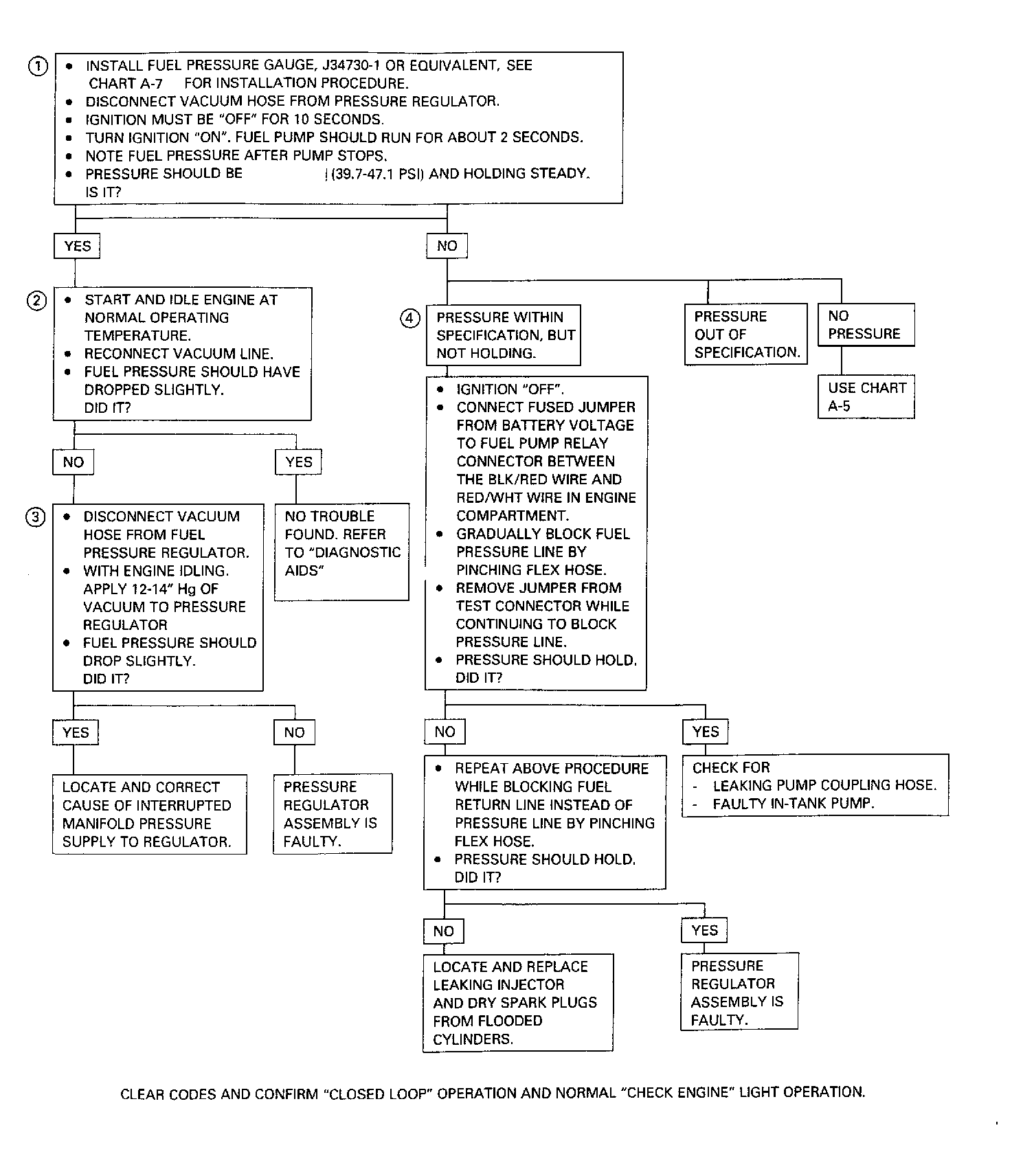

Fig 2: Chart A-7 Flow Chart, Fuel System (Turbo) (1 of 2)

Courtesy of ISUZU MOTOR CO.

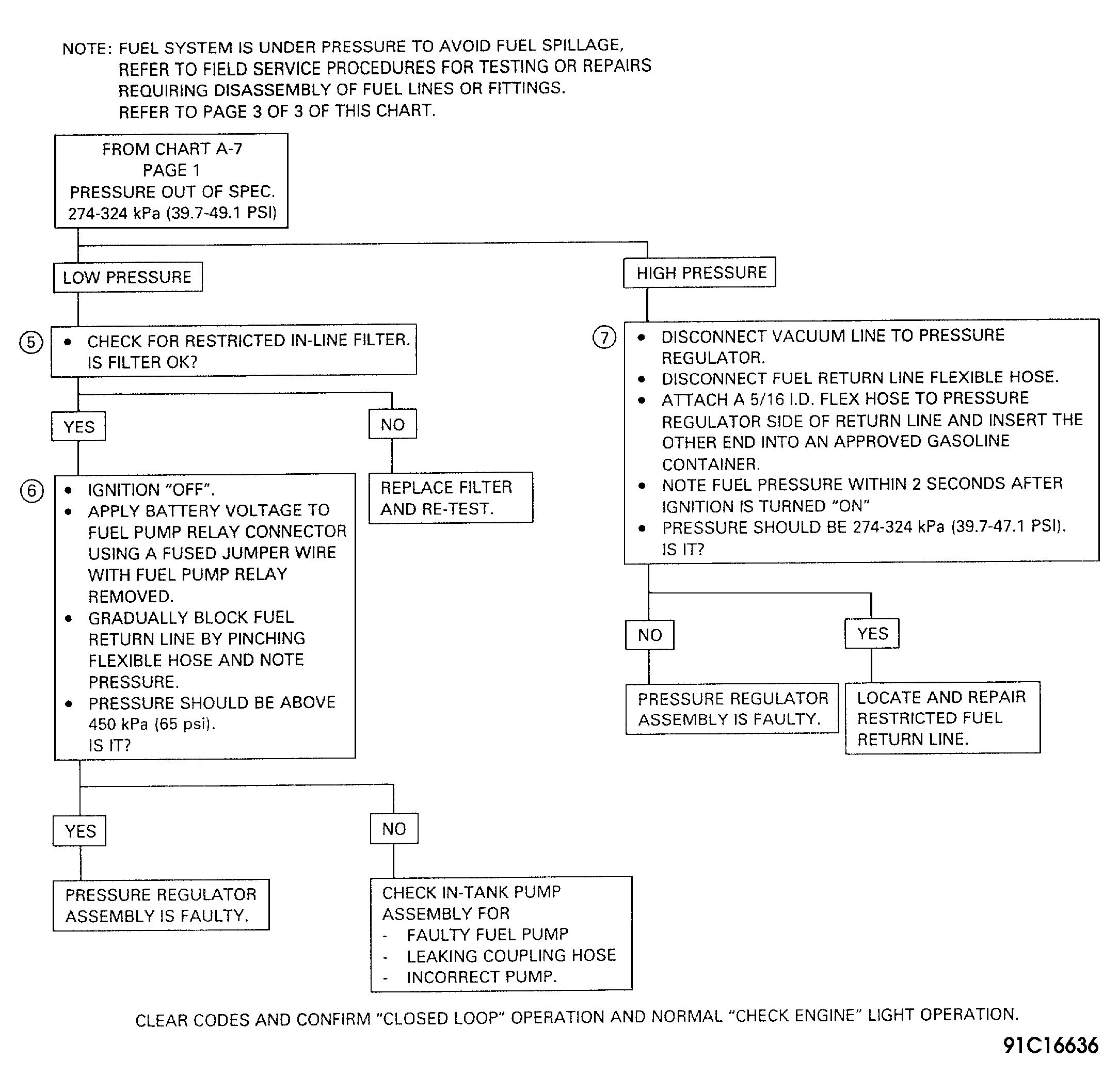

Fig 3: Chart A-7 Flow Chart, Fuel System (Turbo) (1 of 2)

Courtesy of ISUZU MOTOR CO.
