Test C: Cruise Control Resume Function Inoperative

For test procedures, see Fig 1. Also, see CONNECTOR IDENTIFICATION and WIRING DIAGRAMS .

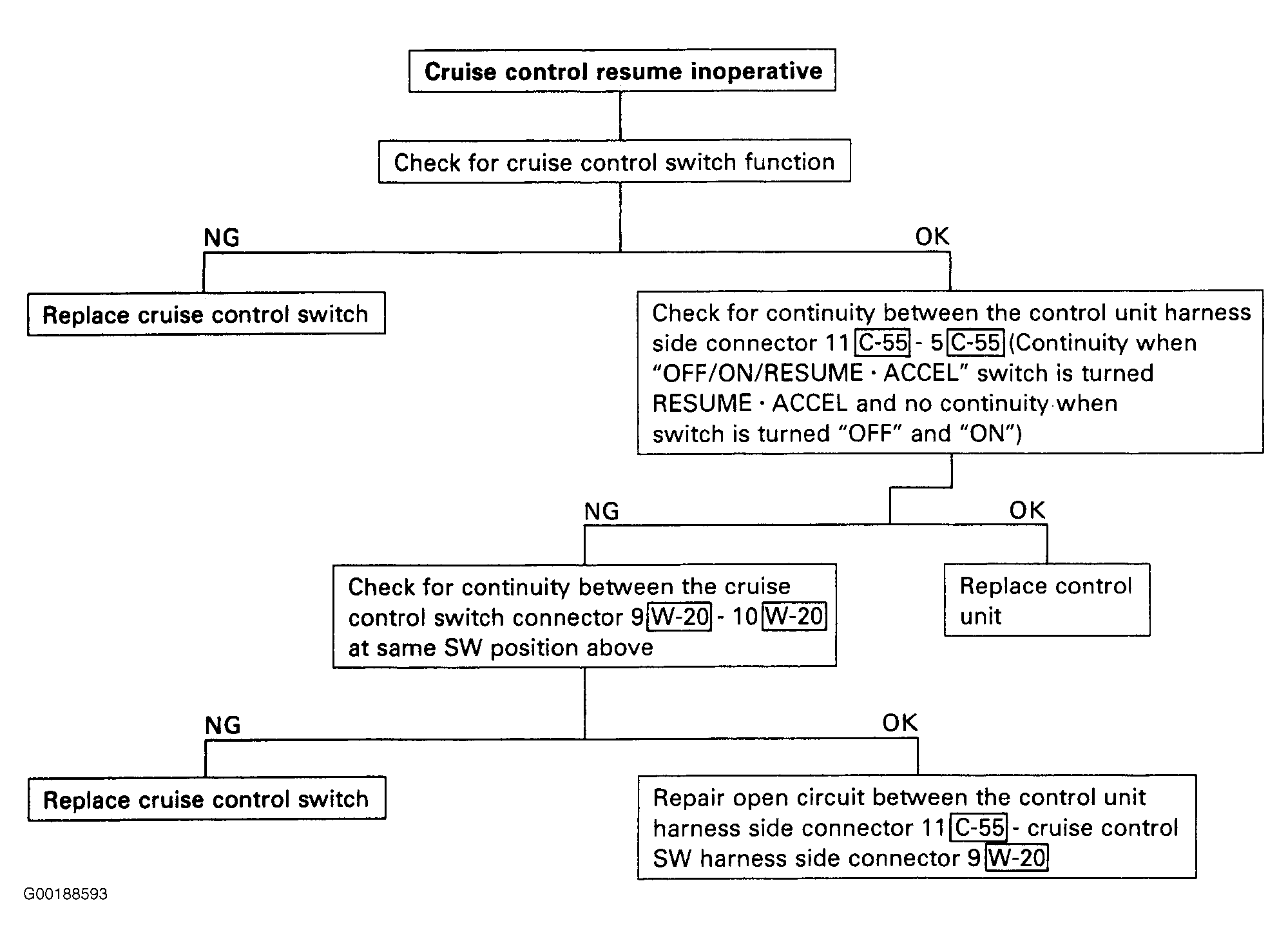

Fig 1: Test C: Cruise Control Resume Function Inoperative

G00188593
