Test B: Cruise Control Set Speed Inoperative

For test procedures, see Fig 1-Fig 4 . Also, see CONNECTOR IDENTIFICATION  and WIRING DIAGRAMS  .

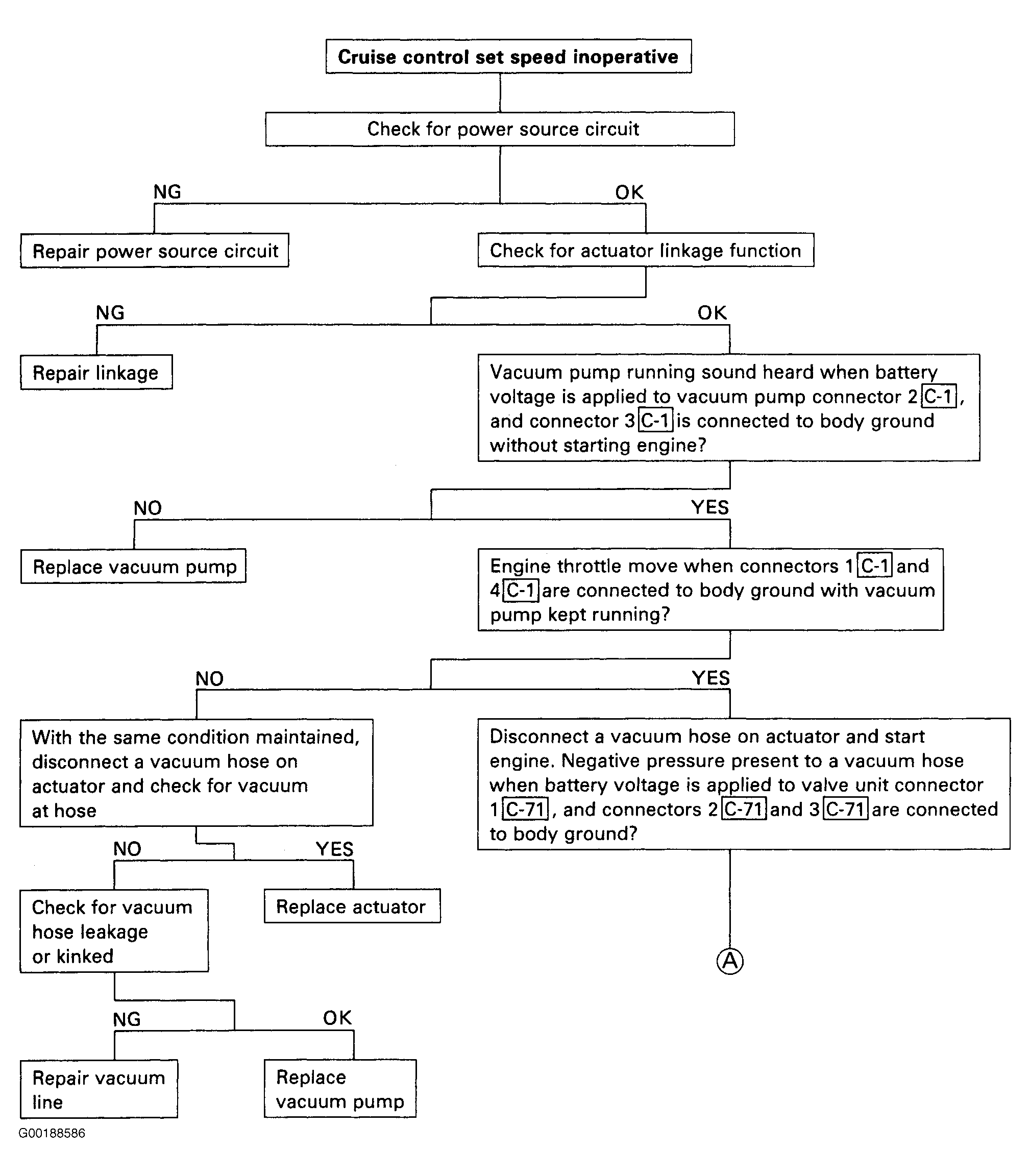

Fig 1: Test B: Cruise Control Set Speed Inoperative (1 Of 4)

Courtesy of ISUZU MOTOR CO.

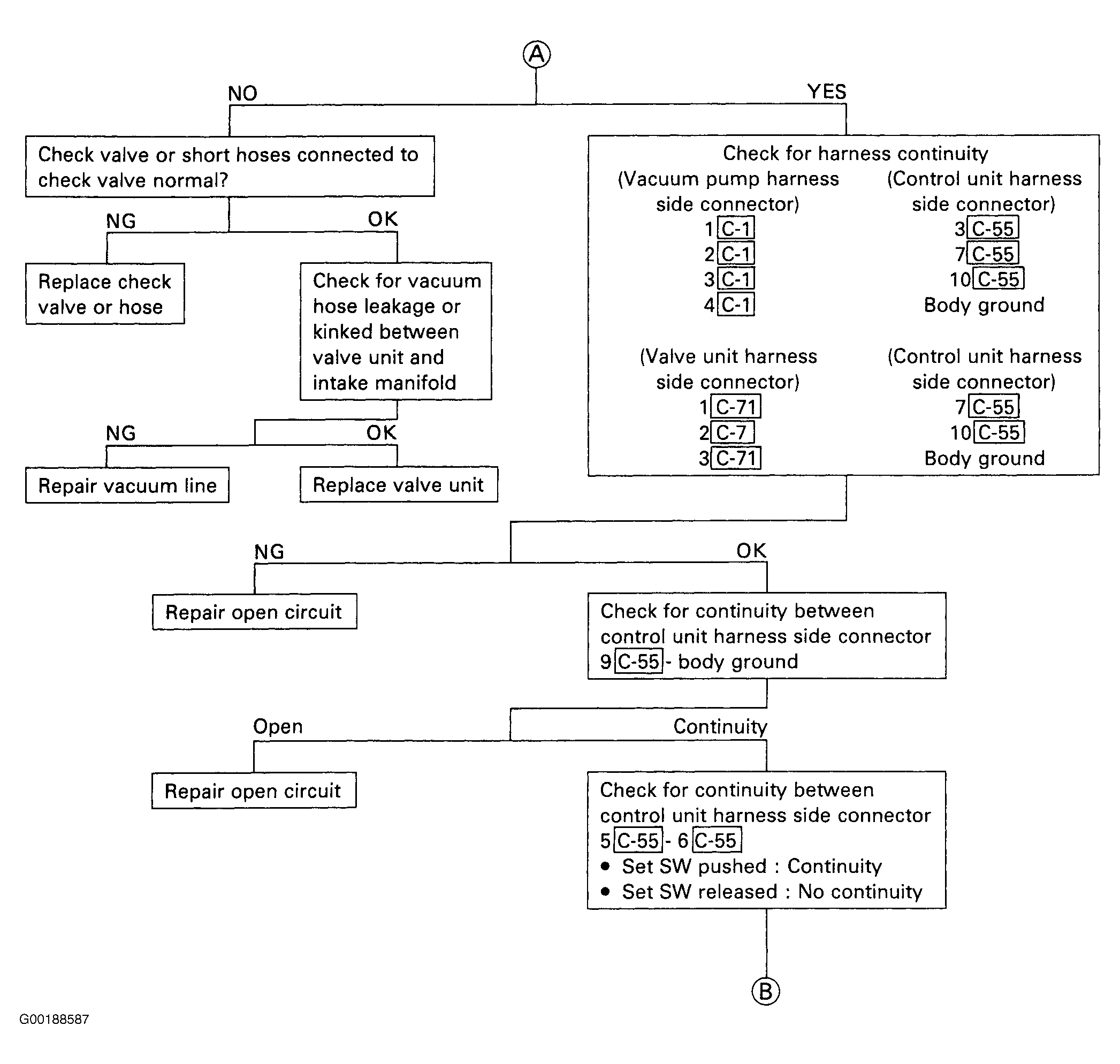

Fig 2: Test B: Cruise Control Set Speed Inoperative (2 Of 4)

Courtesy of ISUZU MOTOR CO.

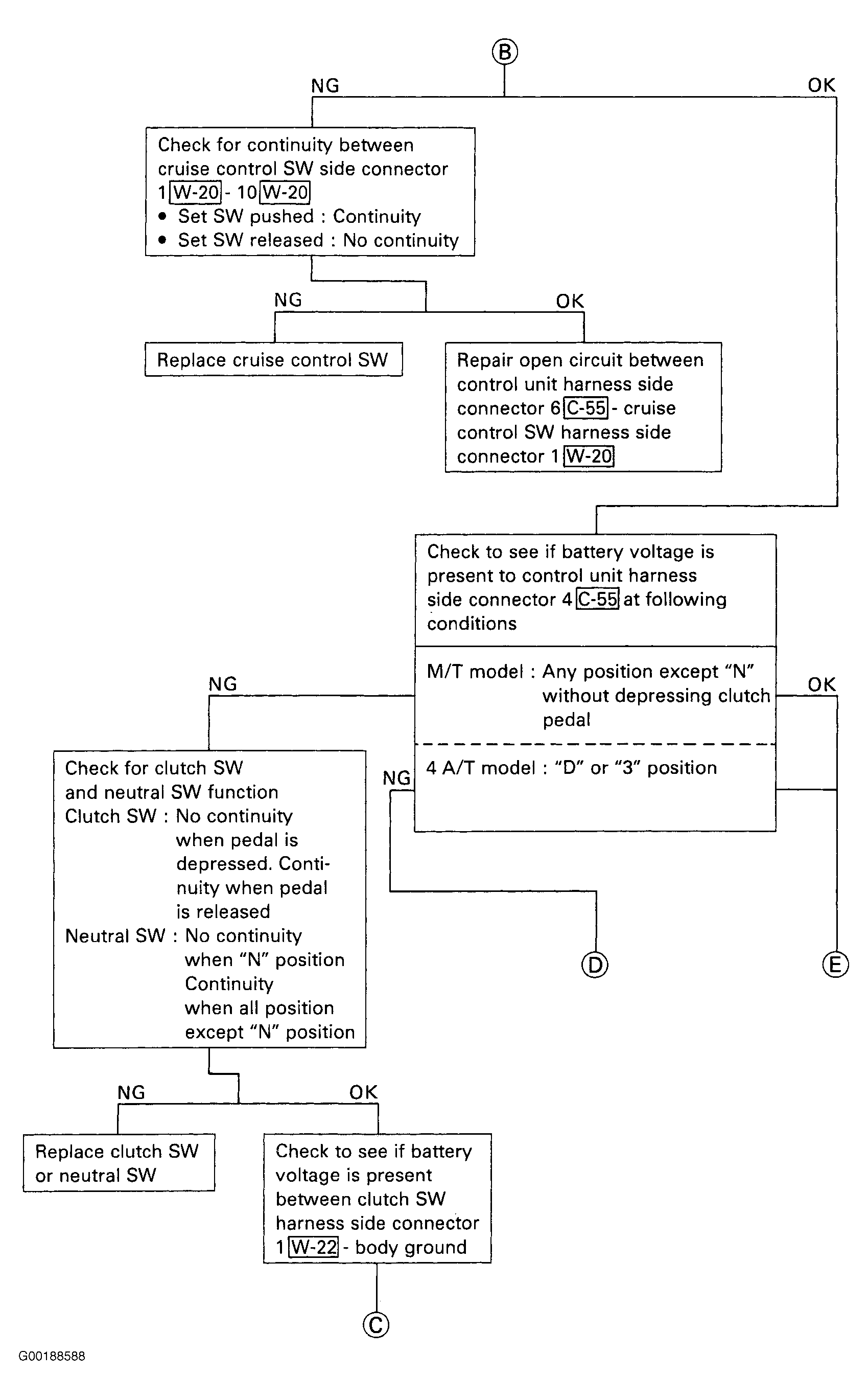

Fig 3: Test B: Cruise Control Set Speed Inoperative (3 Of 4)

Courtesy of ISUZU MOTOR CO.

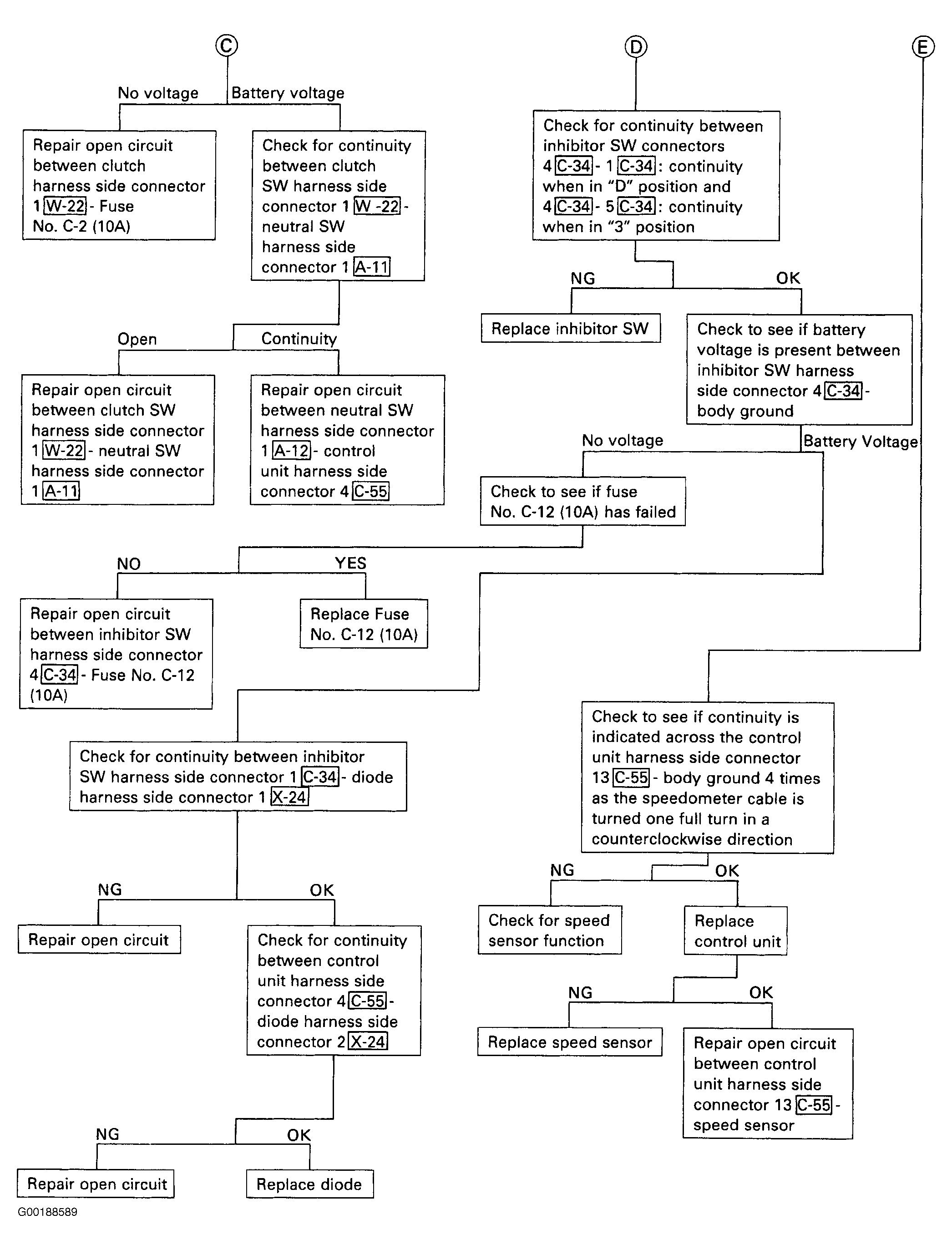

Fig 4: Test B: Cruise Control Set Speed Inoperative (4 Of 4)

Courtesy of ISUZU MOTOR CO.
