Code 21 - Idle (Vacuum) Switch Or Map Sensor

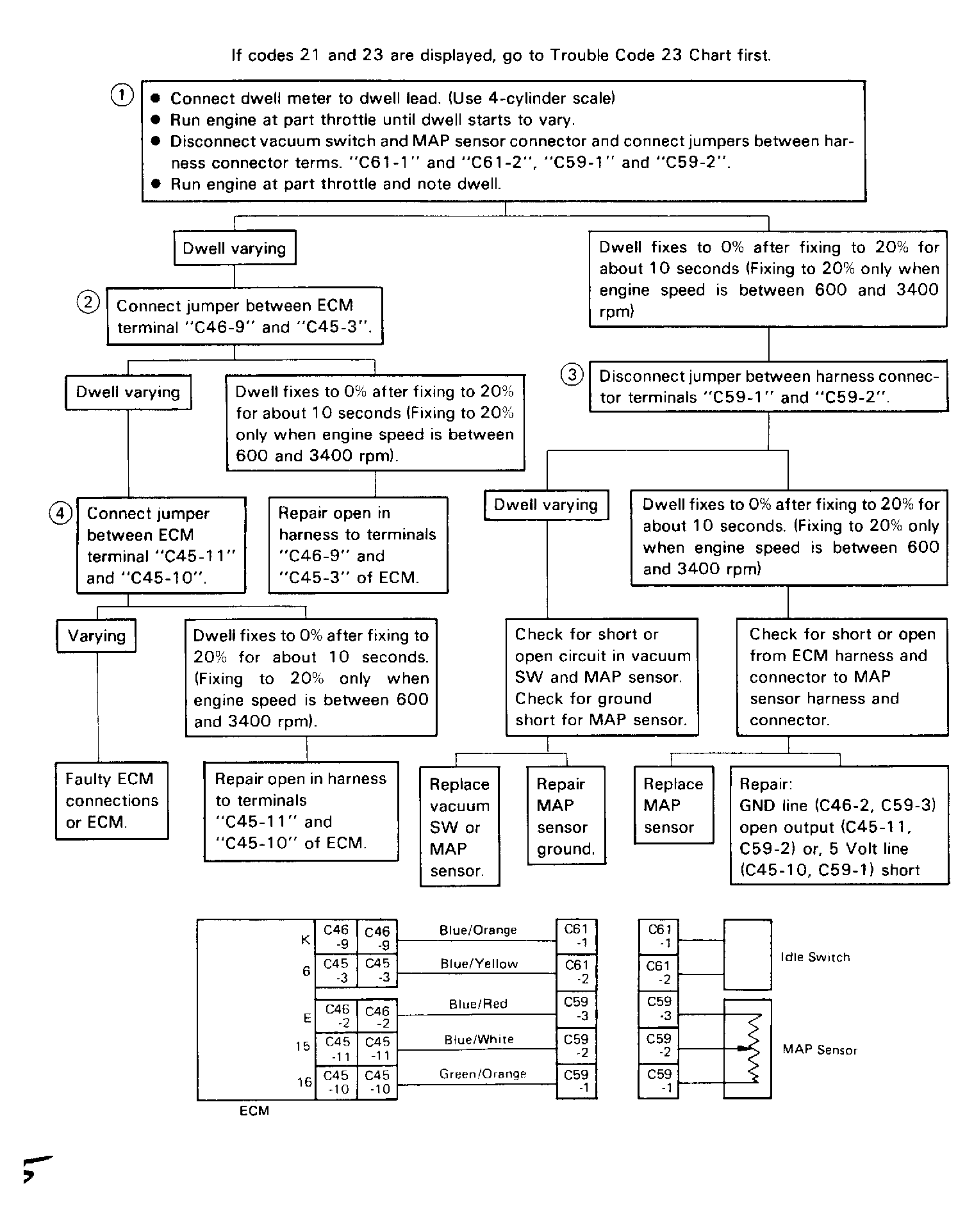

Fig 1: Flow Chart - Code 21, Idle (Vacuum) Switch Or Map Sensor

G122133

Courtesy of ISUZU MOTOR CO.
