Fuel Metering Rich Fault Inspection Procedure

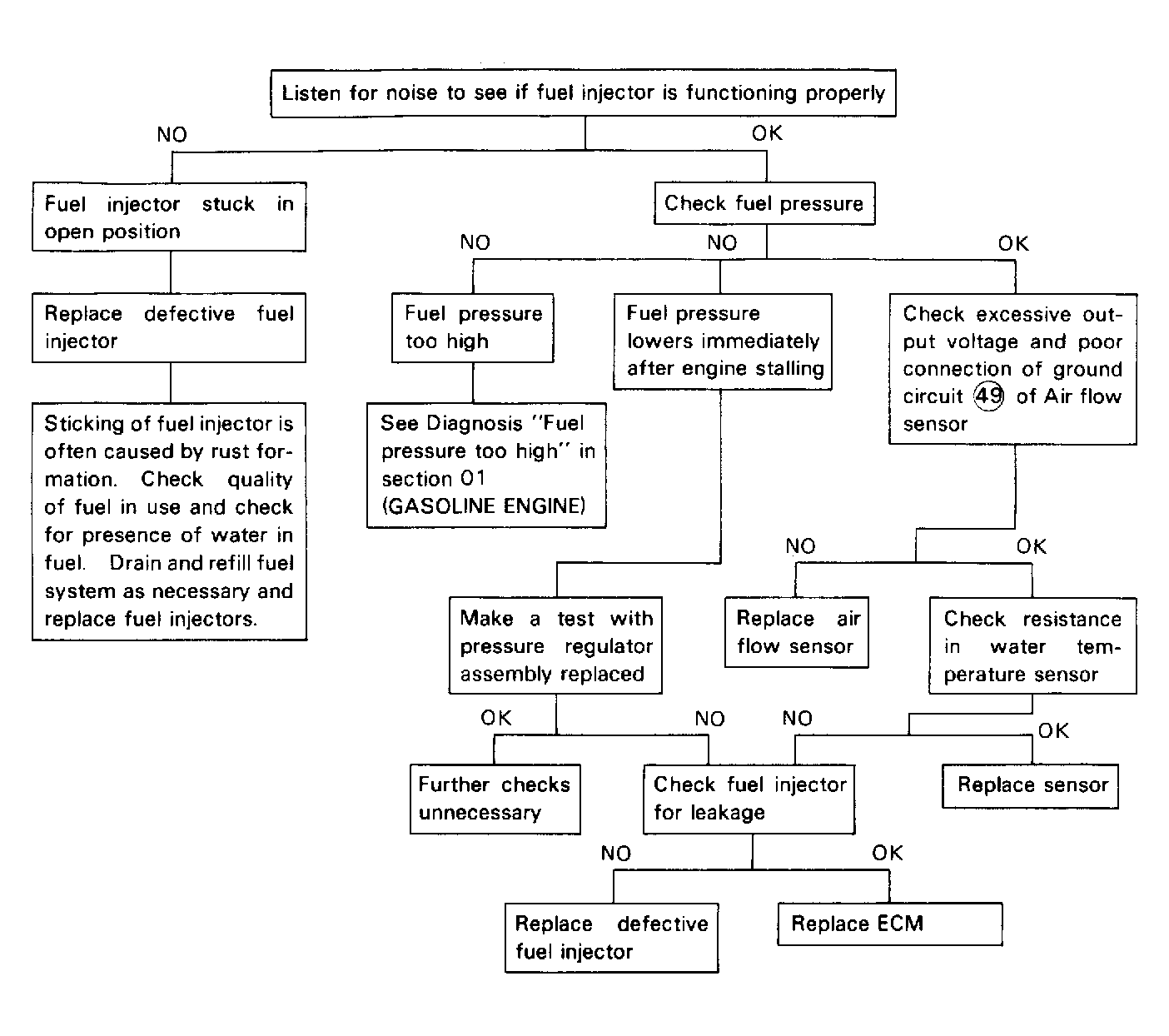

Fig 1: Flow Chart - Fuel Metering Rich Faulty Inspection Procedure

G122290

Courtesy of ISUZU MOTOR CO.
