Codes 61, 62 - Airflow Sensor Circuit

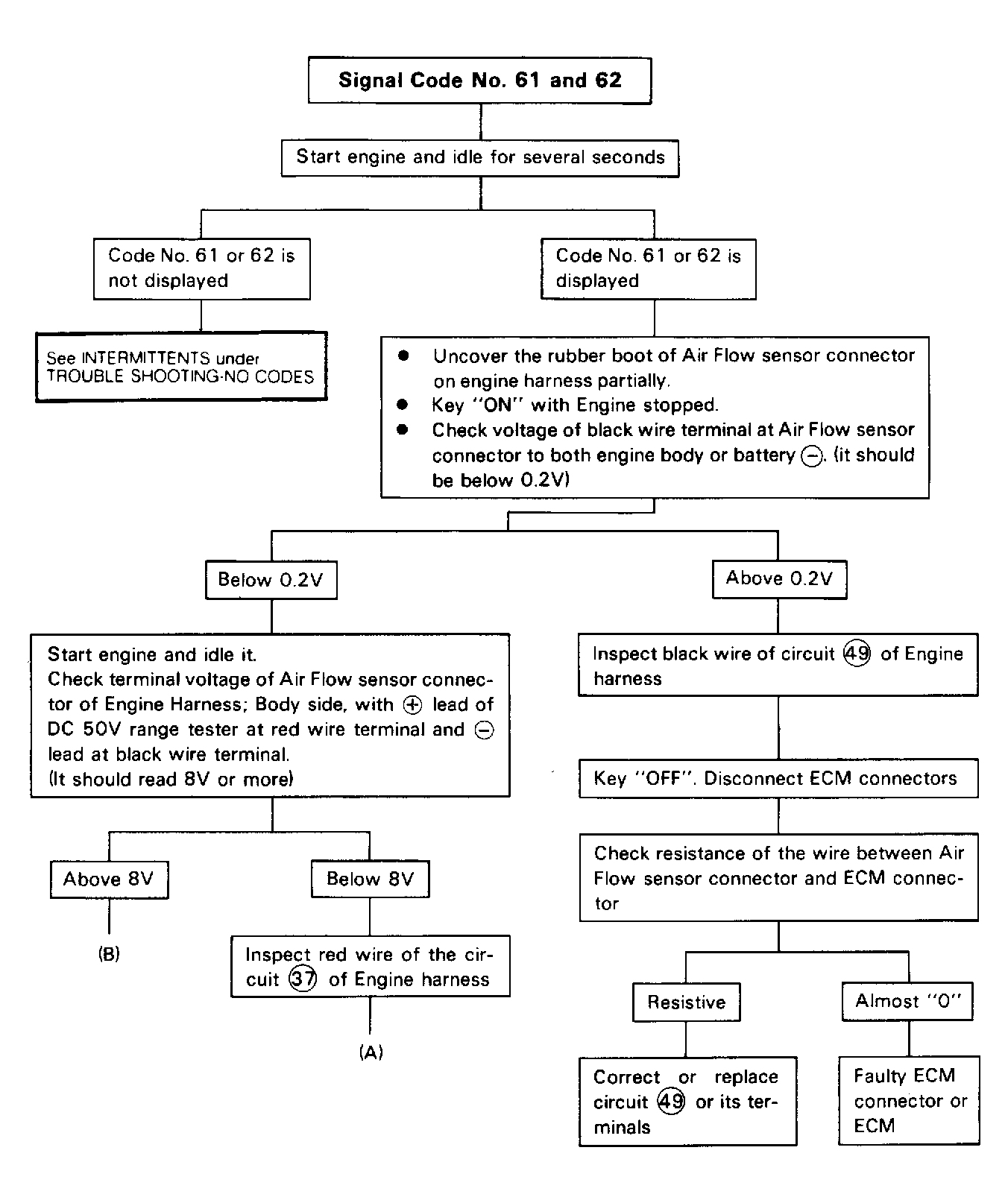

Fig 1: Flow Chart (1 of 2) - Codes 61 & 62, Airflow Sensor Circuit

Courtesy of ISUZU MOTOR CO.

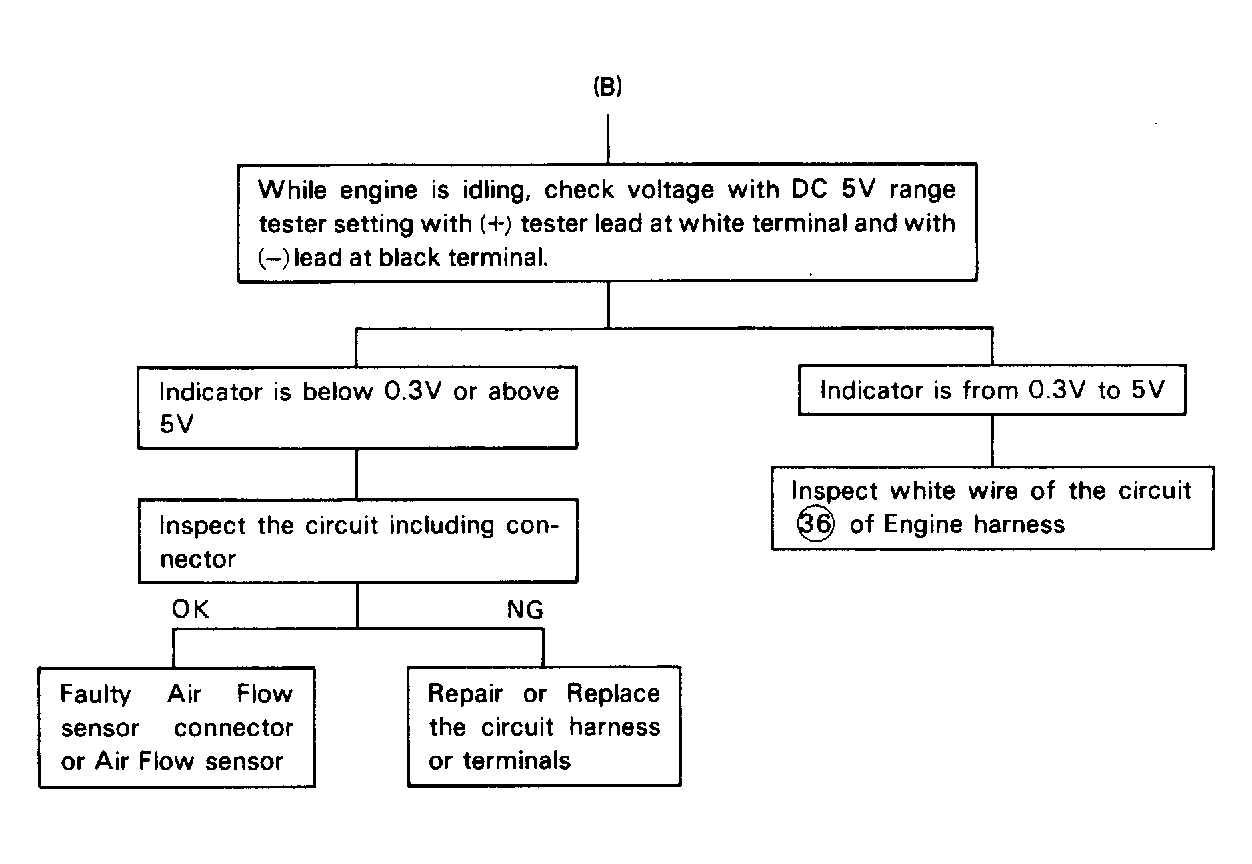

Fig 2: Flow Chart (2 of 2) - Codes 61 & 62, Airflow Sensor Circuit (Cont.)

Courtesy of ISUZU MOTOR CO.

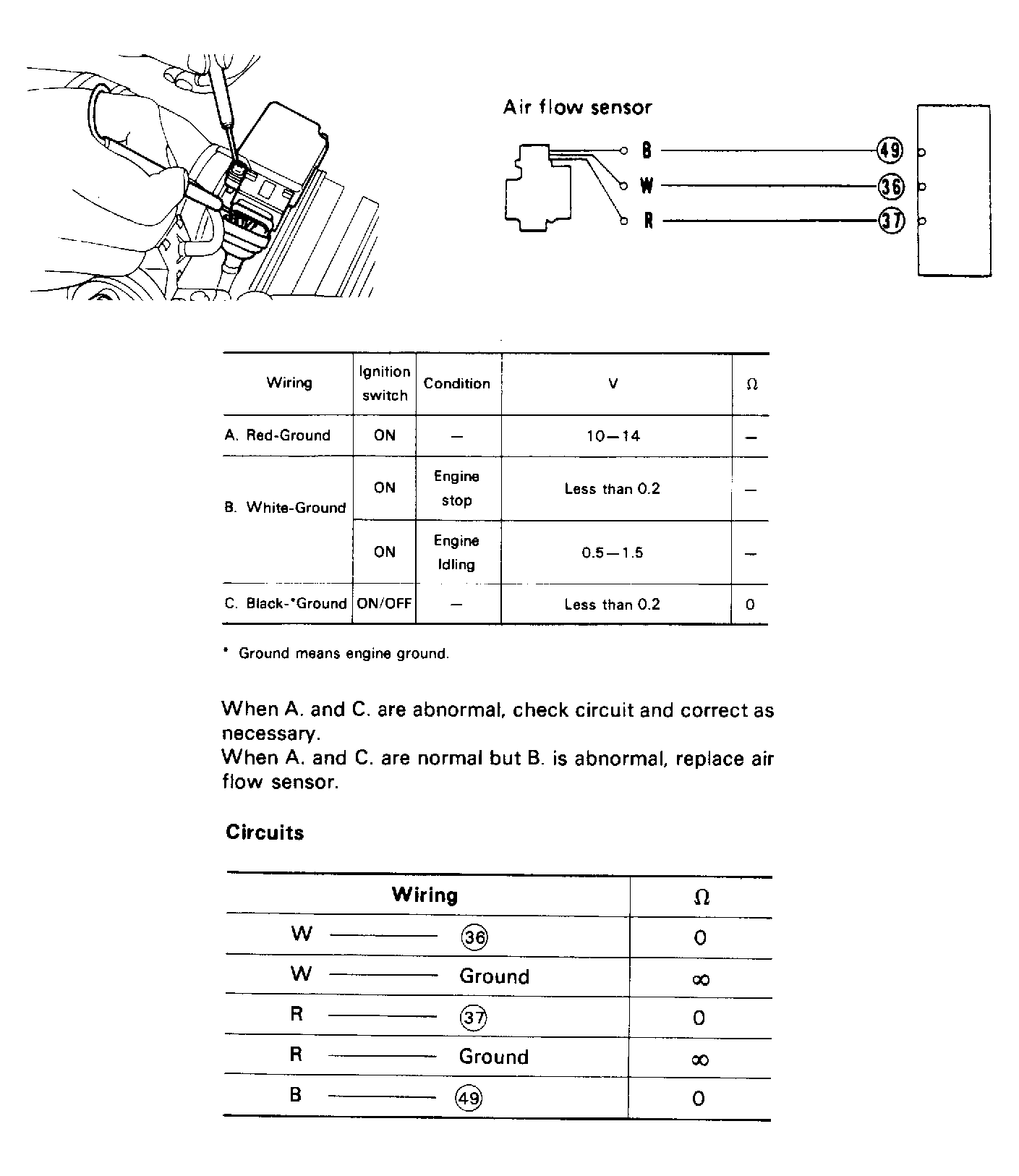

Fig 3: Airflow Sensor Schematic & Circuit Voltages

Courtesy of ISUZU MOTOR CO.
