Code 33 - Fuel Injector Circuit (Open Or Grounded)

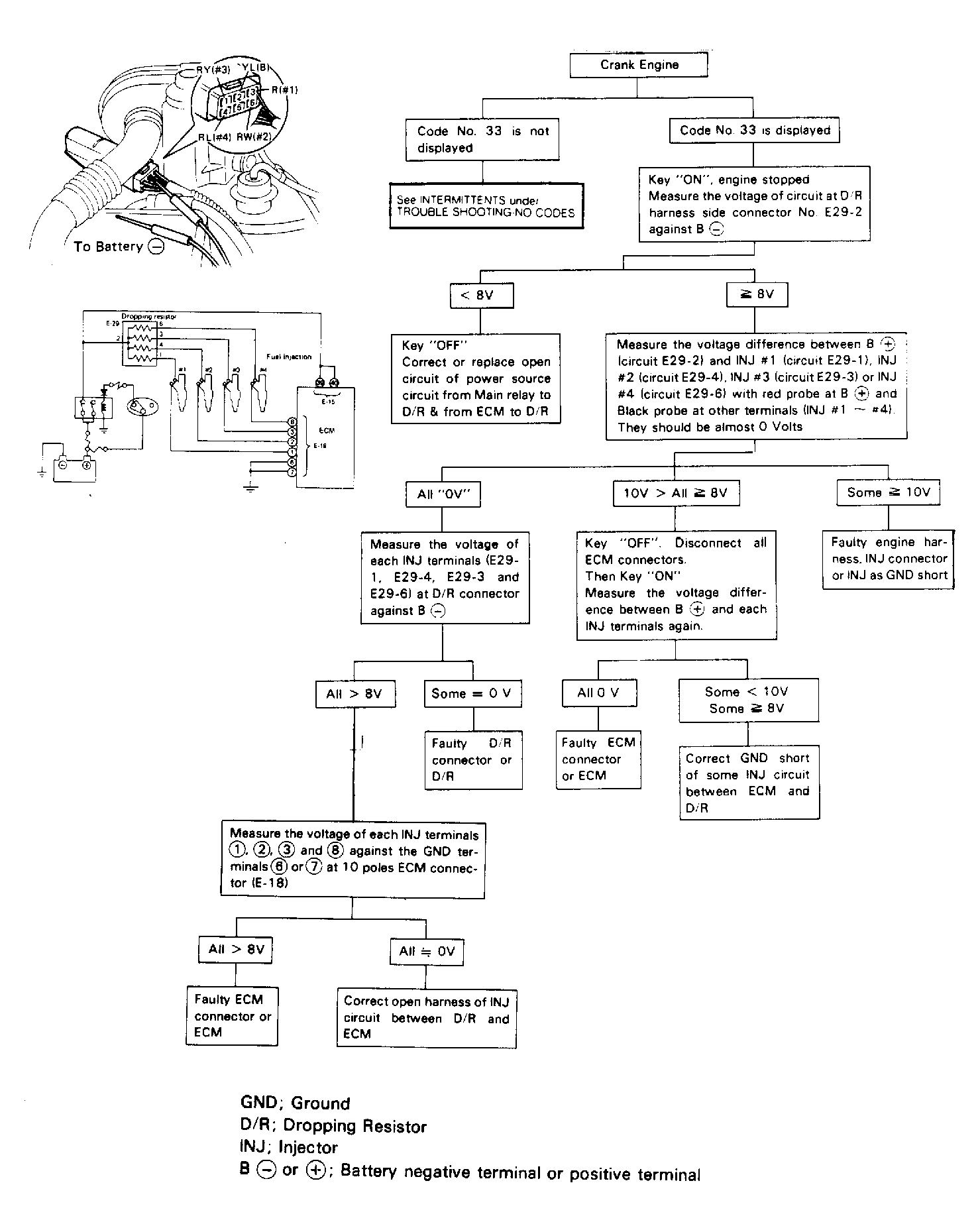

Fig 1: Flow Chart - Code 33, Fuel Injector Circuit Open Or Grounded
G122280Courtesy of ISUZU MOTOR CO.
Fig 2: View of Dropping Resistor Connector
G122281Courtesy of ISUZU MOTOR CO.
