Code 54 - Duty (Mixture Control) Solenoid Circuit

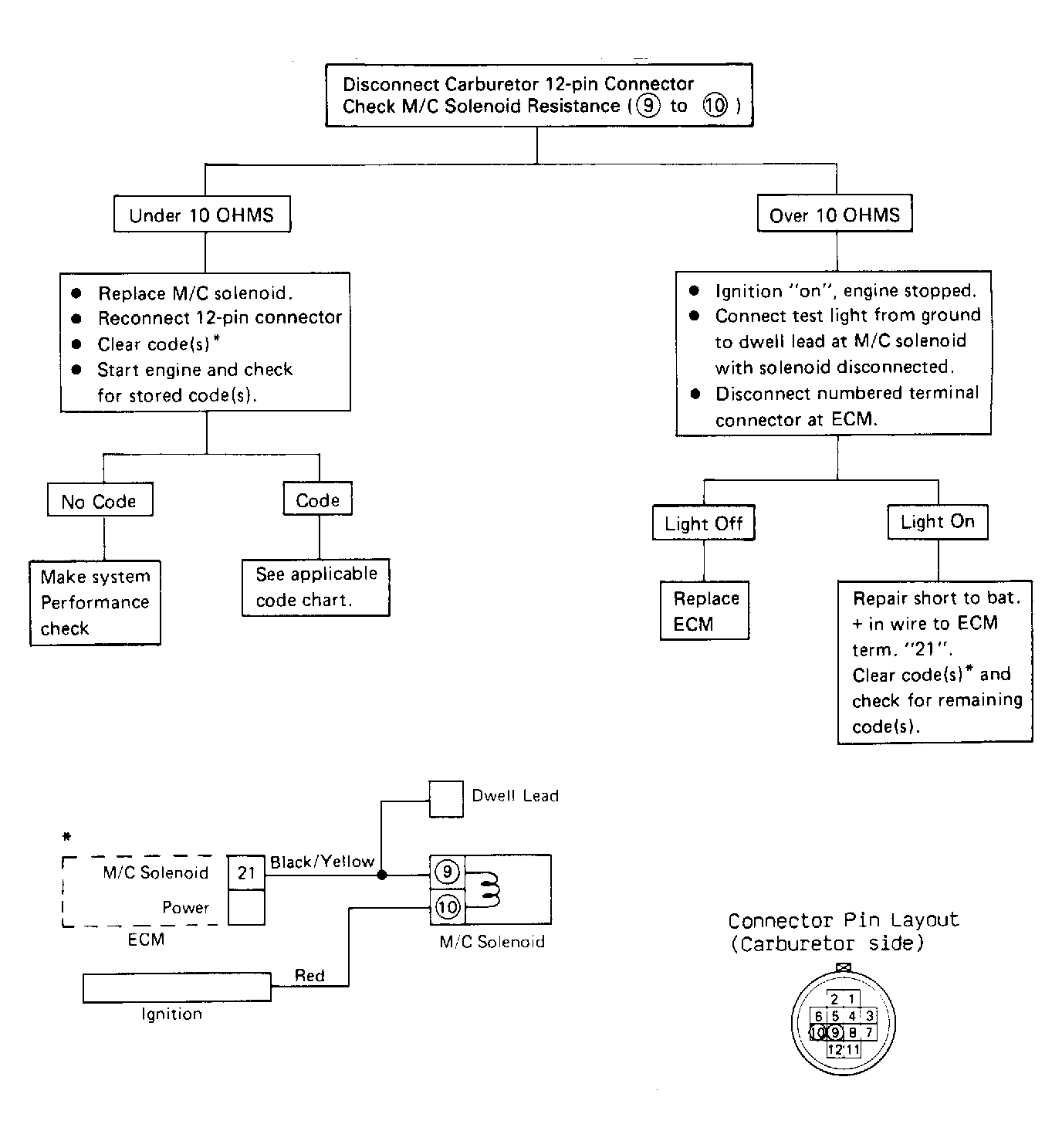

Fig 1: Flow Chart - Code 54, Duty (Mixture Control) Solenoid Circuit

G122165

Courtesy of ISUZU MOTOR CO.
