Code 25 - Air Induction System VSV Circuit

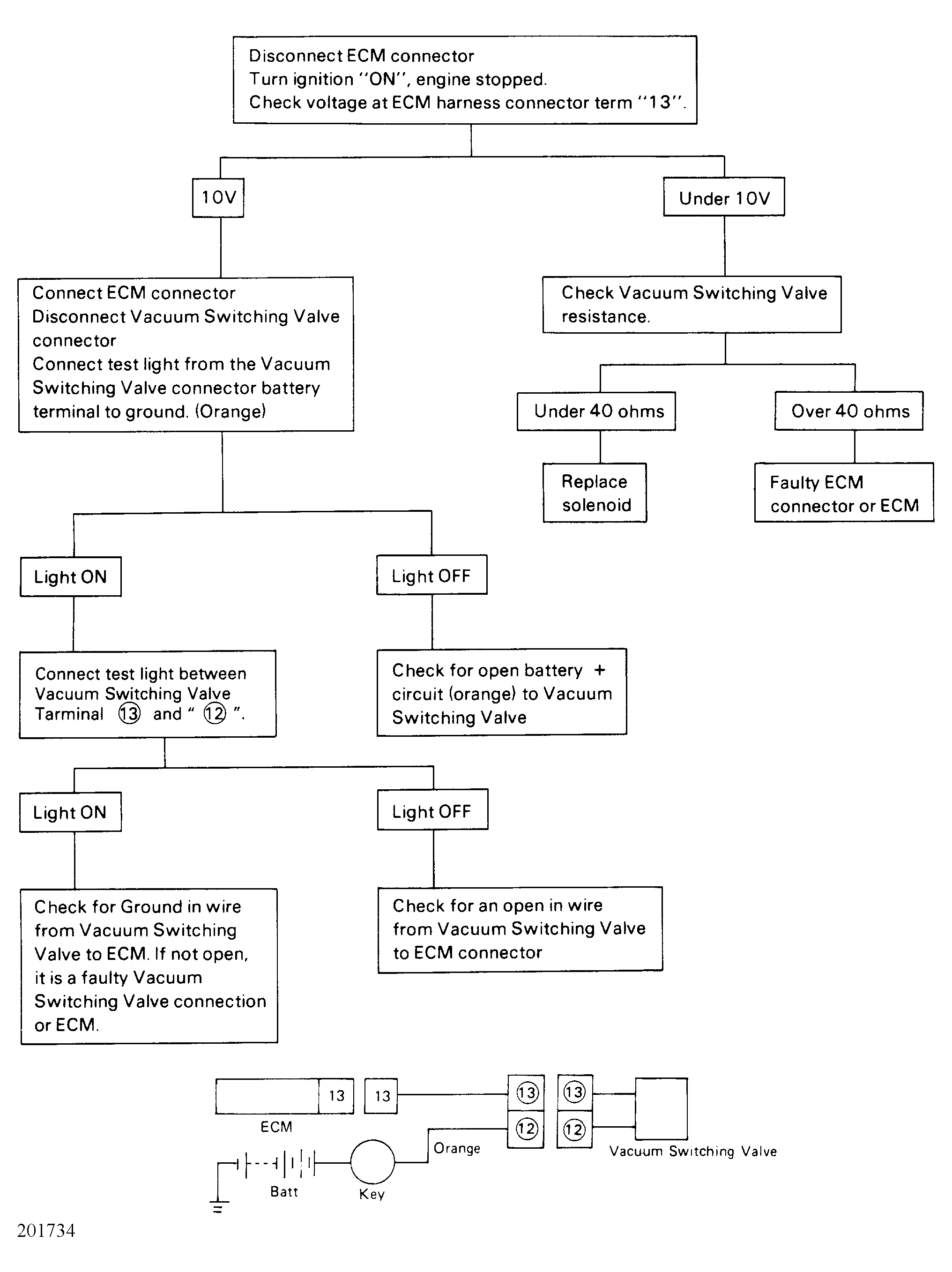

Fig 1: Flow Chart - Code 25, Air Induction System VSV Circuit

G201734

Courtesy of ISUZU MOTOR CO.
