Code 23 - Duty (Mixture Control) Solenoid Circuit

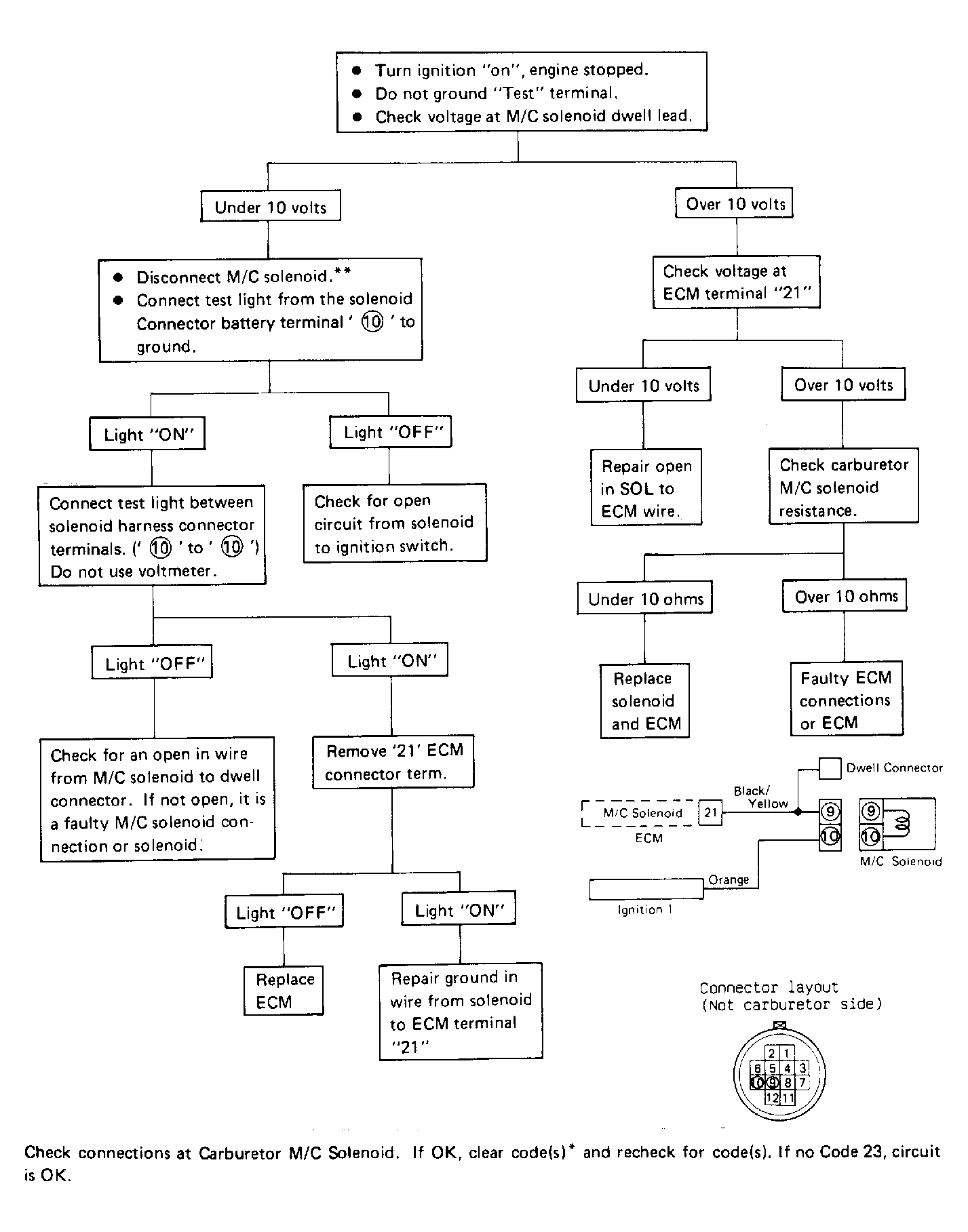

Fig 1: Flow Chart - Code 23, Duty (Mixture Control) Solenoid Circuit

G122159

Courtesy of ISUZU MOTOR CO.
