Wiring Diagrams

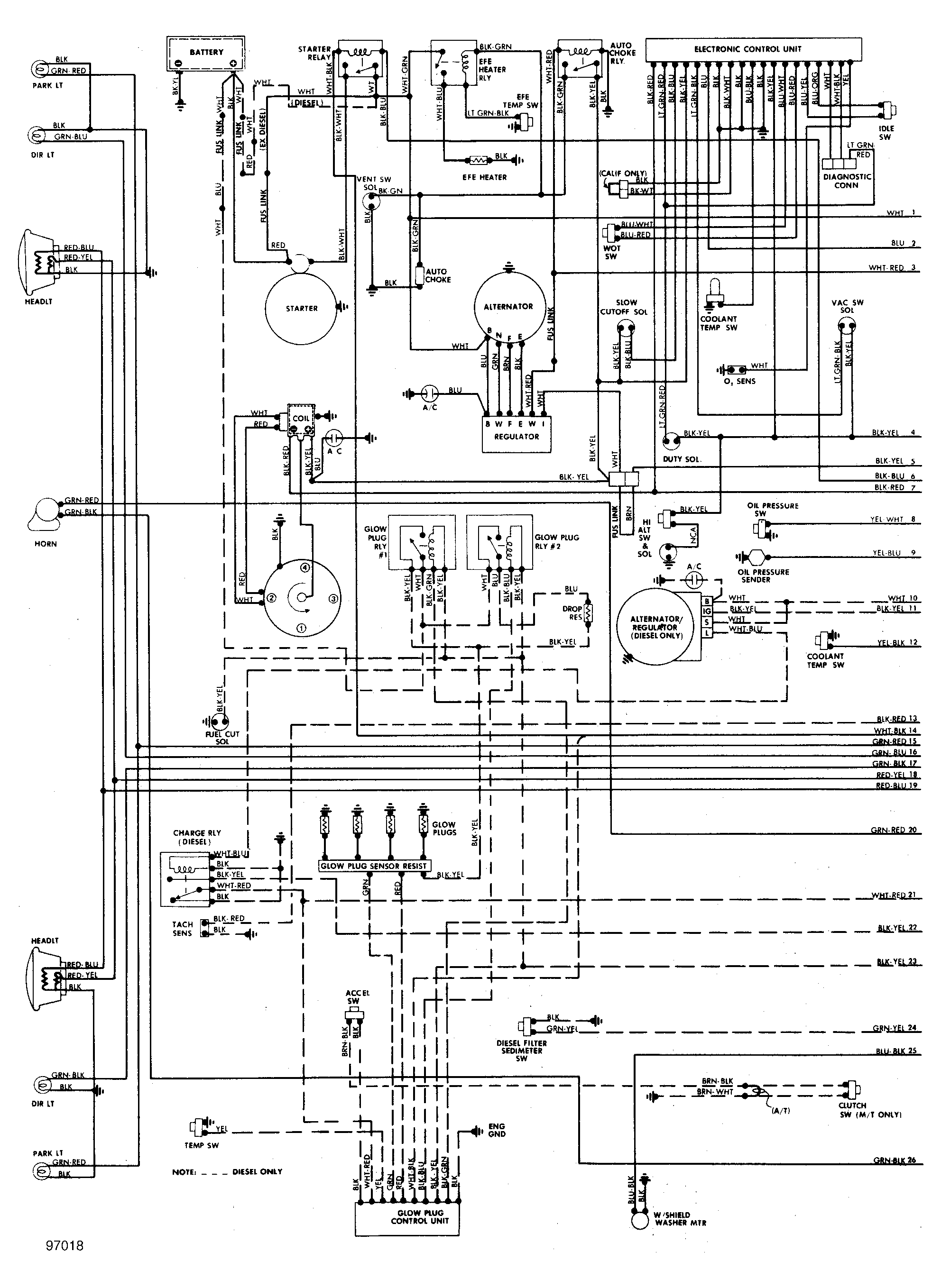

Fig 1: Engine Compartmant & Engine Control Unit

G97018

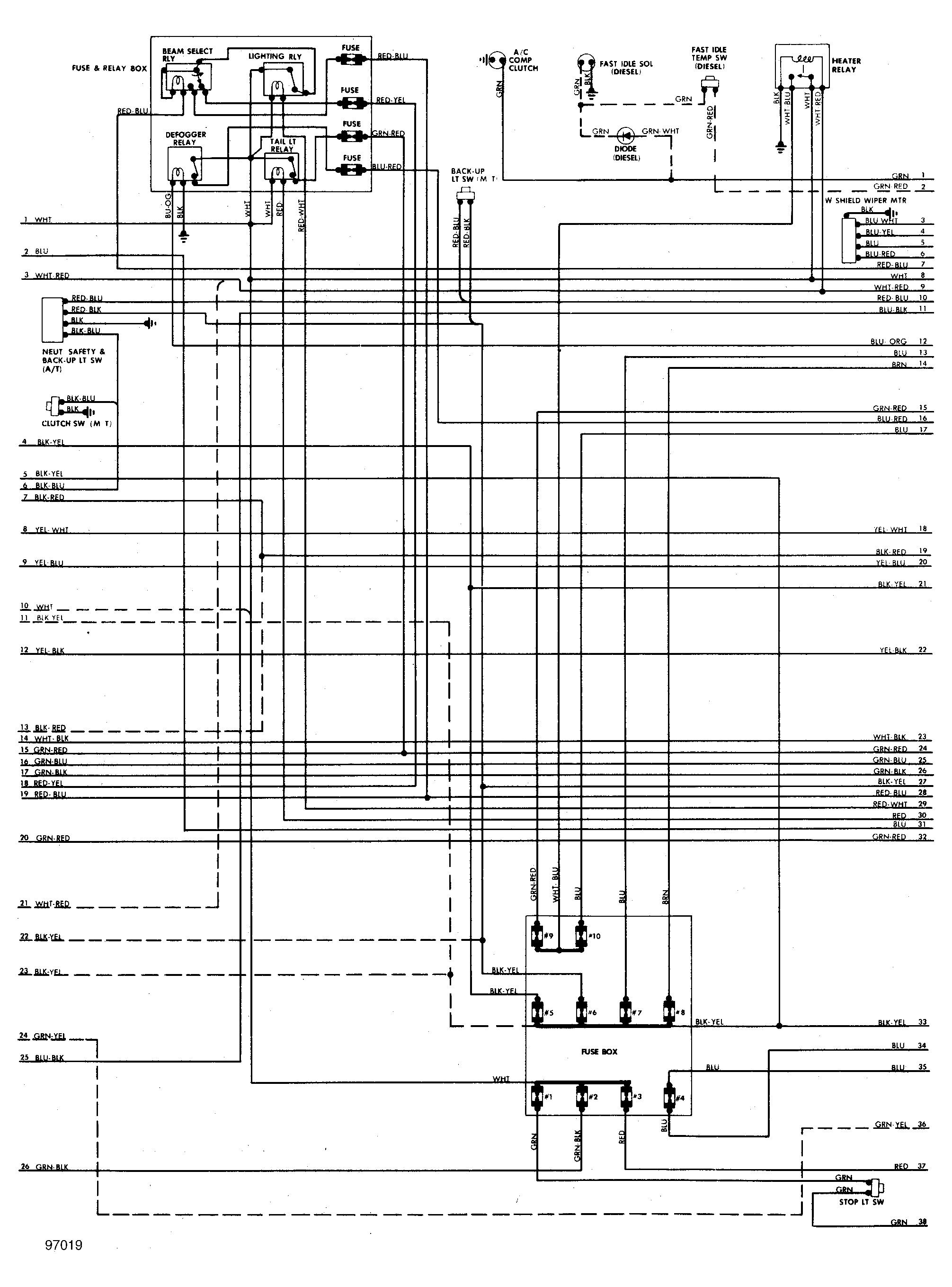

Fig 2: Fuse Block & Underdash

G97019
