Fuel Injection System - ISUZU I-TEC: Wiring Diagram

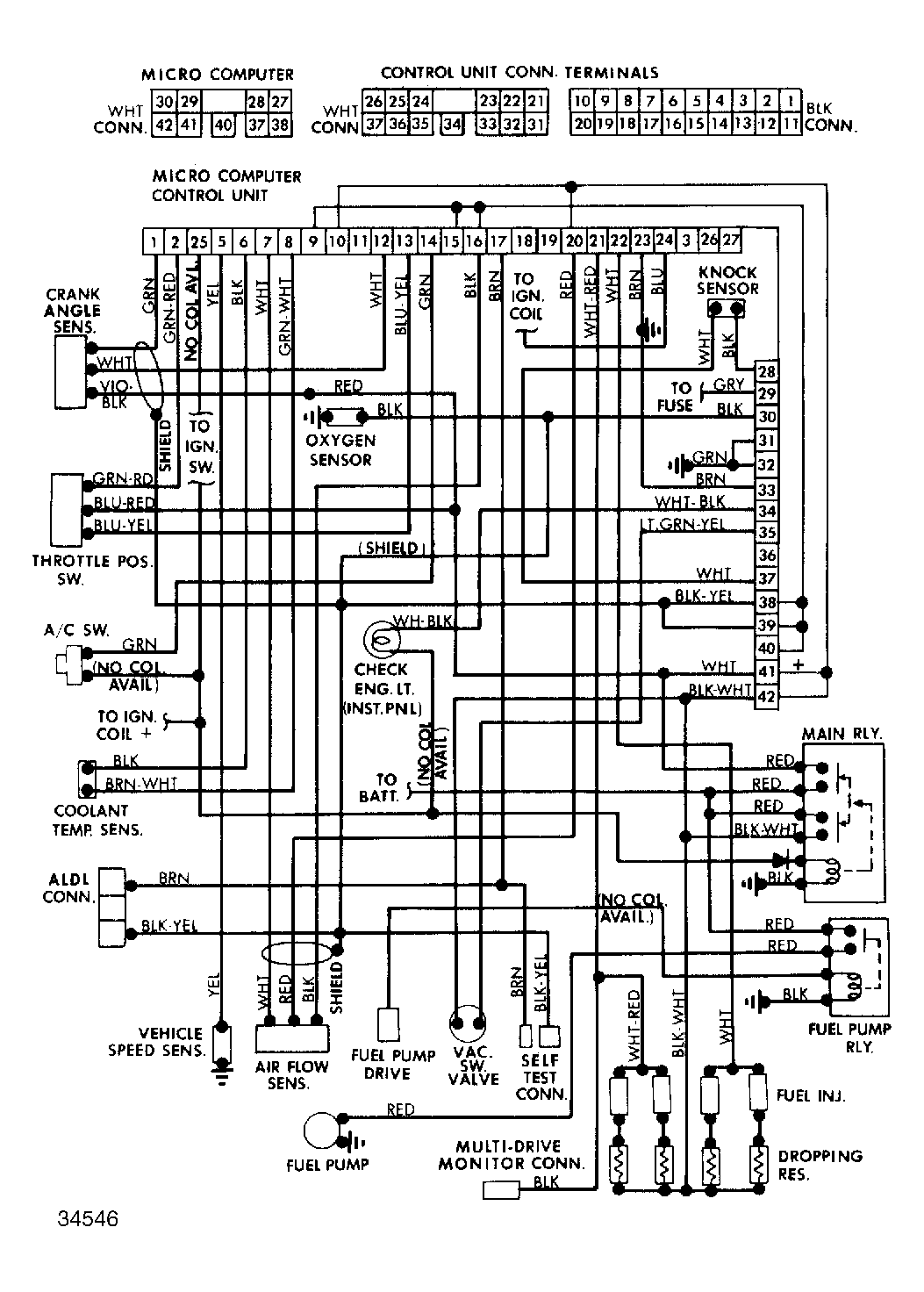

Fig 1: I-TEC Fuel Injection Wiring Diagram

G34546
