TRANSFER LOCK POSITION SENSOR : Exploded View

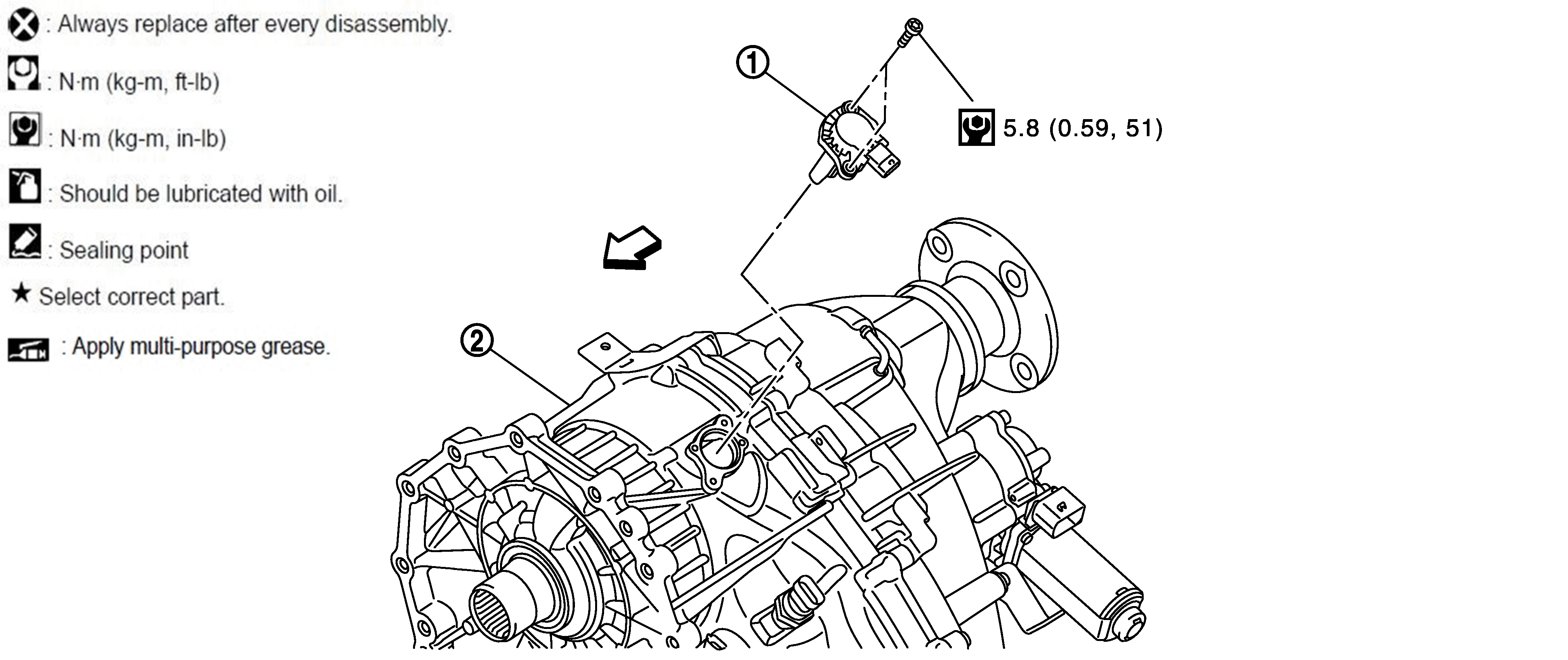

Fig 1: Transfer Lock Position Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transfer lock position sensor	2.	Transfer assembly
: Vehicle front
	: N.m (kg-m, in-lb)
