FRONT FINAL DRIVE DIFFERENTIAL ASSEMBLY : Exploded View

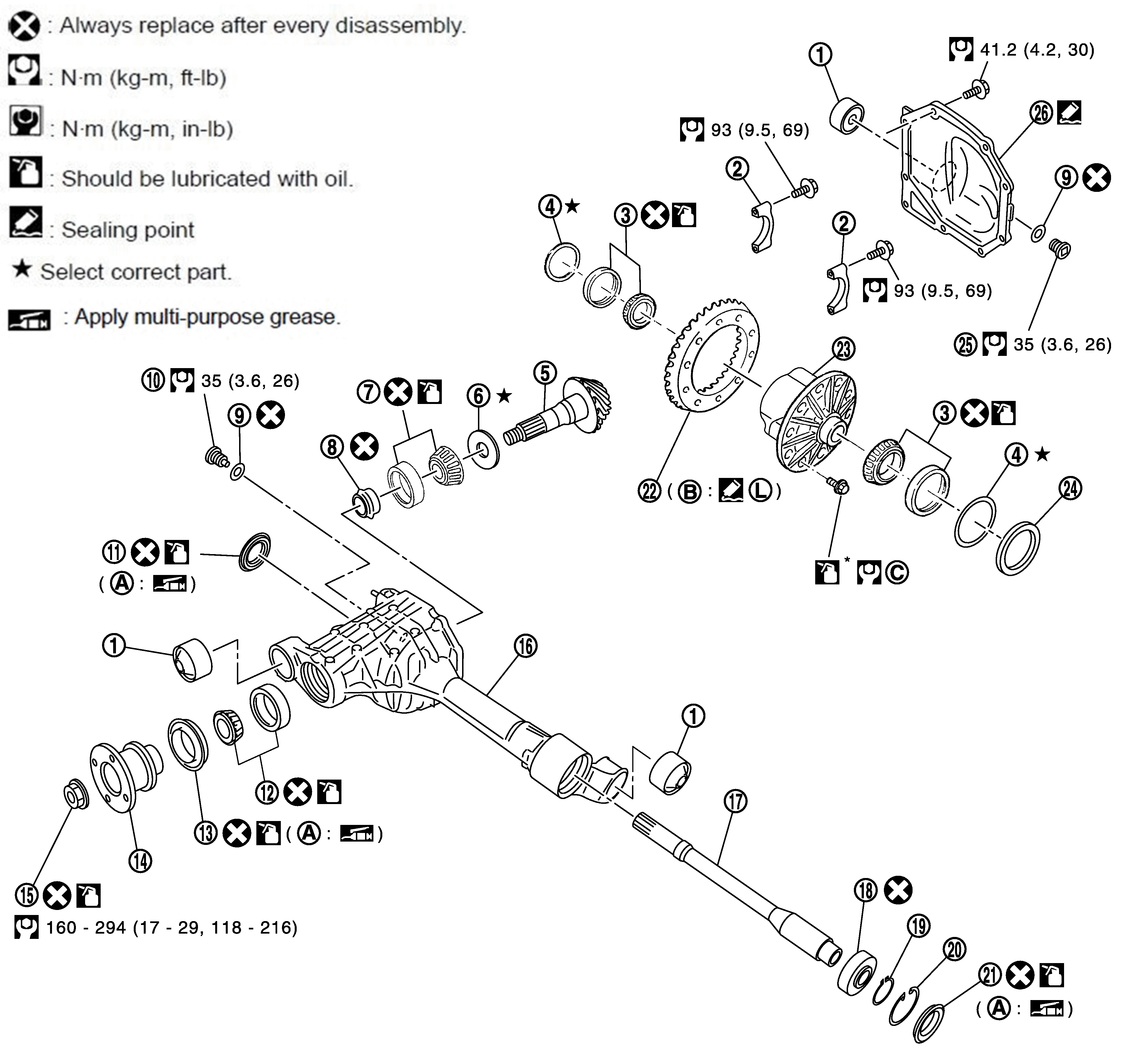

Fig 1: Front Final Drive Differential Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bushing	2.	Bearing cap	3.	Side bearing
4.	Side bearing adjusting washer	5.	Drive pinion	6.	Pinion height adjusting washer
7.	Pinion rear bearing	8.	Collapsible spacer	9.	Gasket
10.	Drain plug	11.	Side oil seal (left side)	12.	Pinion front bearing
13.	Front oil seal	14.	Companion flange	15.	Drive pinion lock nut
16.	Gear carrier	17.	Side shaft	18.	Side shaft bearing
19.	Snap ring	20.	Snap ring	21.	Side oil seal (right side)
22.	Drive gear	23.	Differential case assembly	24.	Housing spacer
25.	Filler plug	26.	Carrier cover
A:	Oil seal lip	B:	Screw hole	C.	Comply with the assembly procedure when tightening. Refer to FRONT FINAL DRIVE DIFFERENTIAL ASSEMBLY : Disassembly and Assembly .

: N.m (kg-m, ft-lb)

: Always replace after every disassembly.

: Select with proper thickness.

: Apply gear oil.

: Apply anti-corrosion oil.

: Apply multi-purpose grease.

: Apply Genuine Silicone RTV or equivalent. Refer to MAINTENANCE : Recommended Fluid and Lubricants .

: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to MAINTENANCE : Recommended Fluid and Lubricants .
