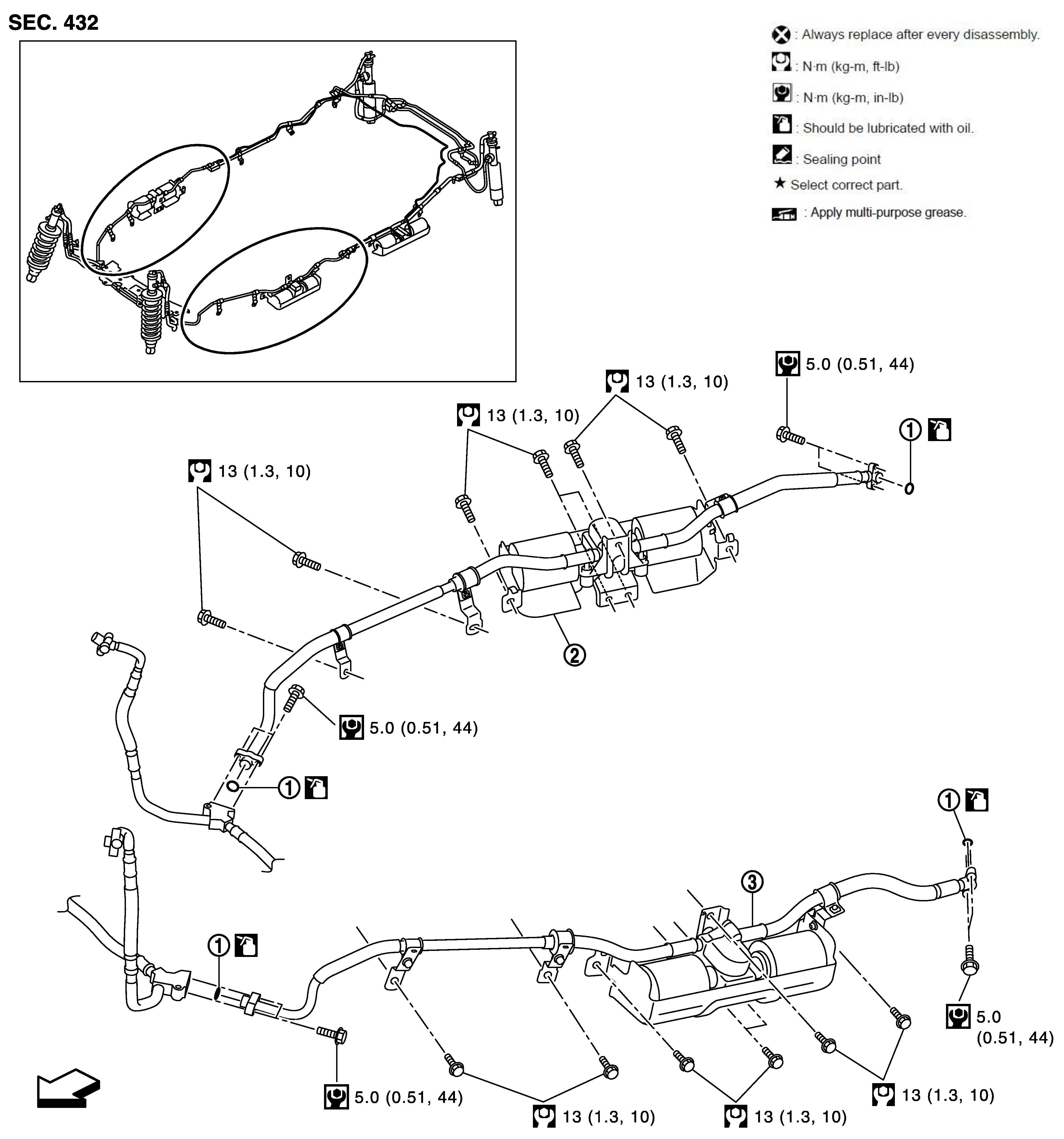

ACCUMULATOR : Exploded View

Fig 1: Accumulator with Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	O-ring	2.	Accumulator assembly RH	3.	Accumulator assembly LH
: Vehicle front
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
: Apply genuine NISSAN hydraulic suspension fluid
