EVAP CANISTER : Exploded View

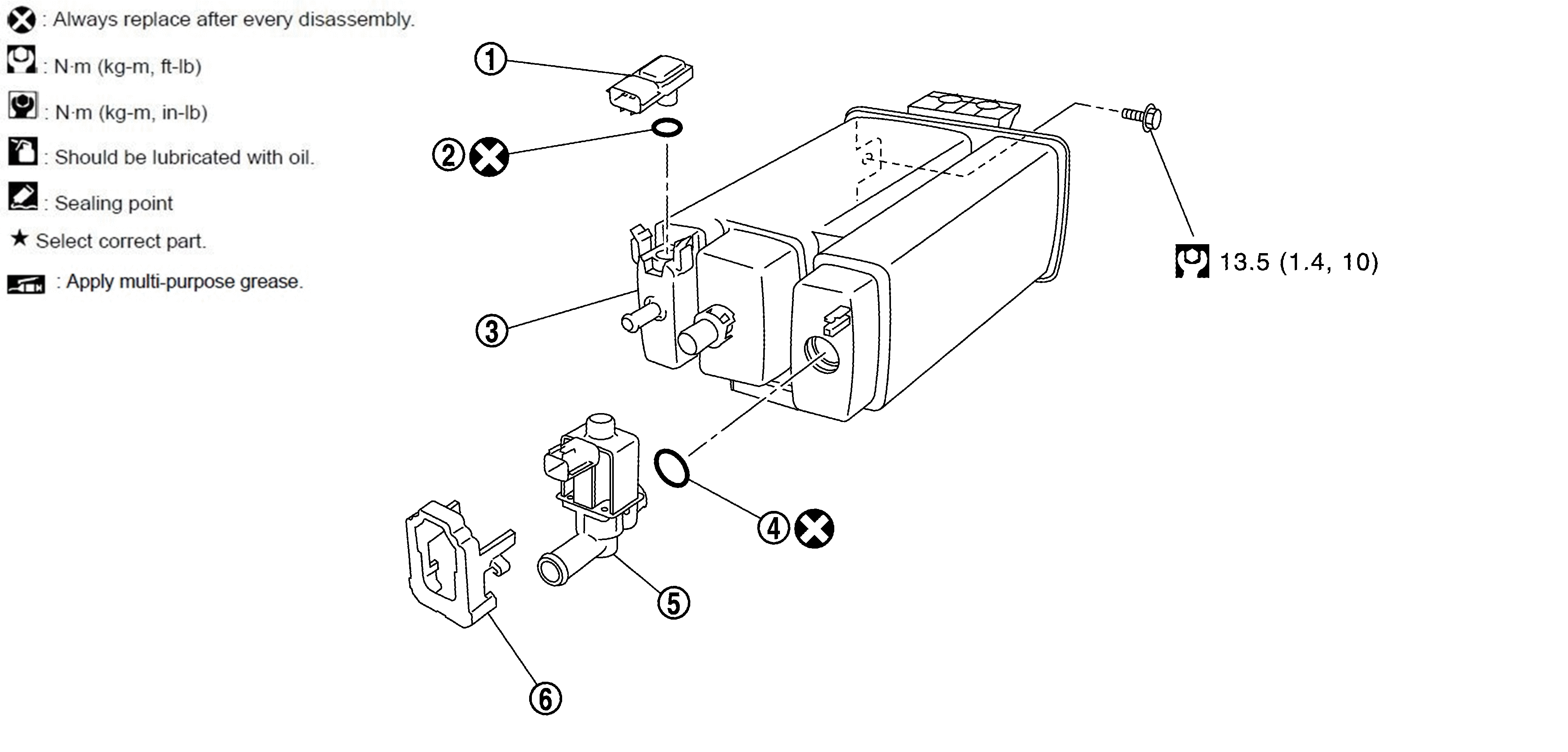

Fig 1: EVAP Canister With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP control system pressure sensor	2.	O-ring	3.	EVAP canister
4.	O-ring	5.	EVAP canister vent control valve	6.	EVAP canister vent control valve cover
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
