Physical Values
VALUES ON THE DIAGNOSIS TOOL

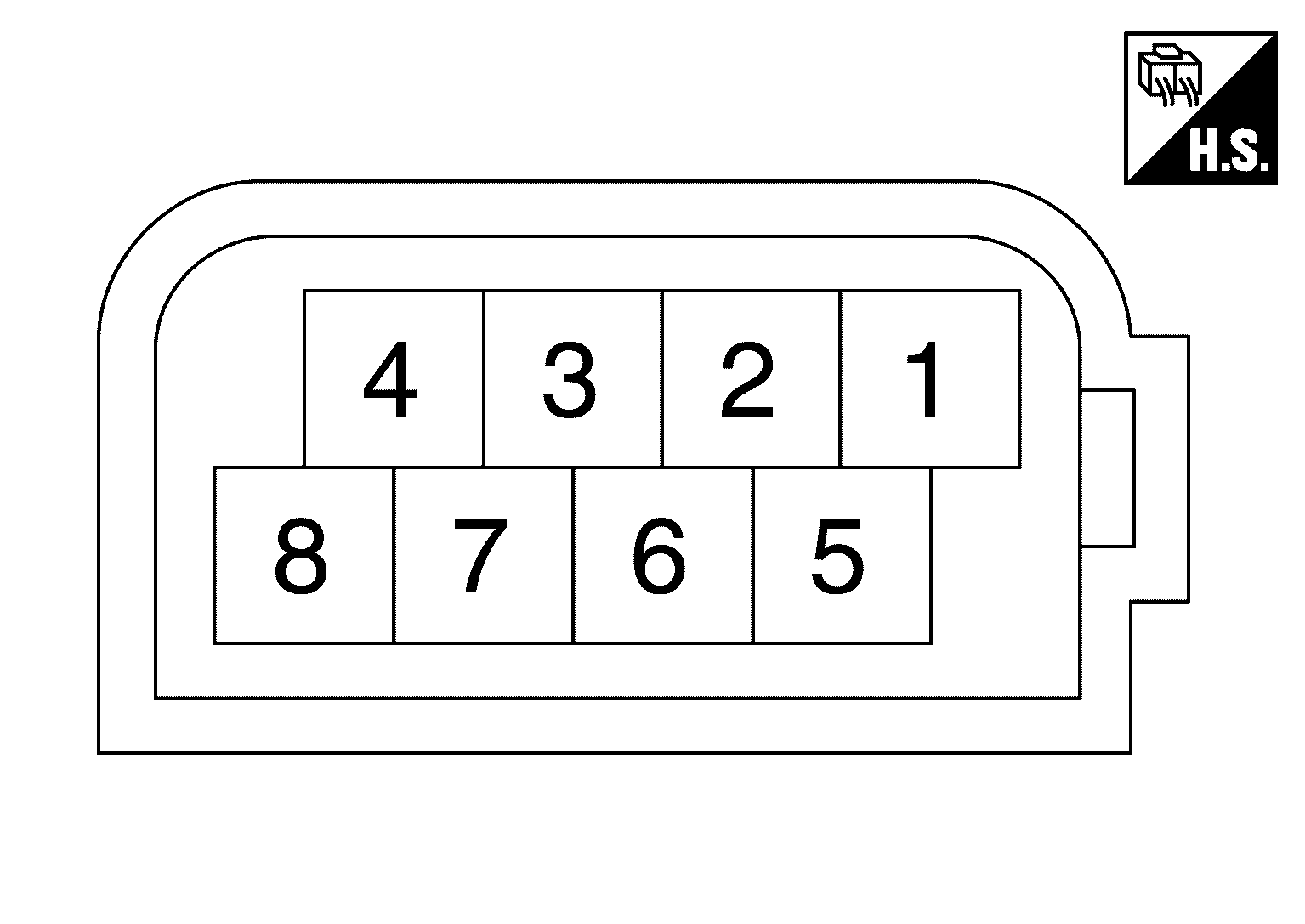

TERMINAL LAYOUT
PHYSICAL VALUES
| Terminal No. (Wire color) |
Description | Condition | Standard value | Reference value | |||
|---|---|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | ||||
| 1 (W/G) |
Ground | Ignition power supply | Input | Ignition switch ON | 10 - 16 V | Battery voltage | |
| 3 (L) |
ITS communication-H | - | - | - | - | ||
| 6 (Y) |
ITS communication-L | - | - | - | - | ||
| 8 (B) |
Ground | - | Ignition switch ON | 0 - 0.1 V | Approx. 0 V | ||
