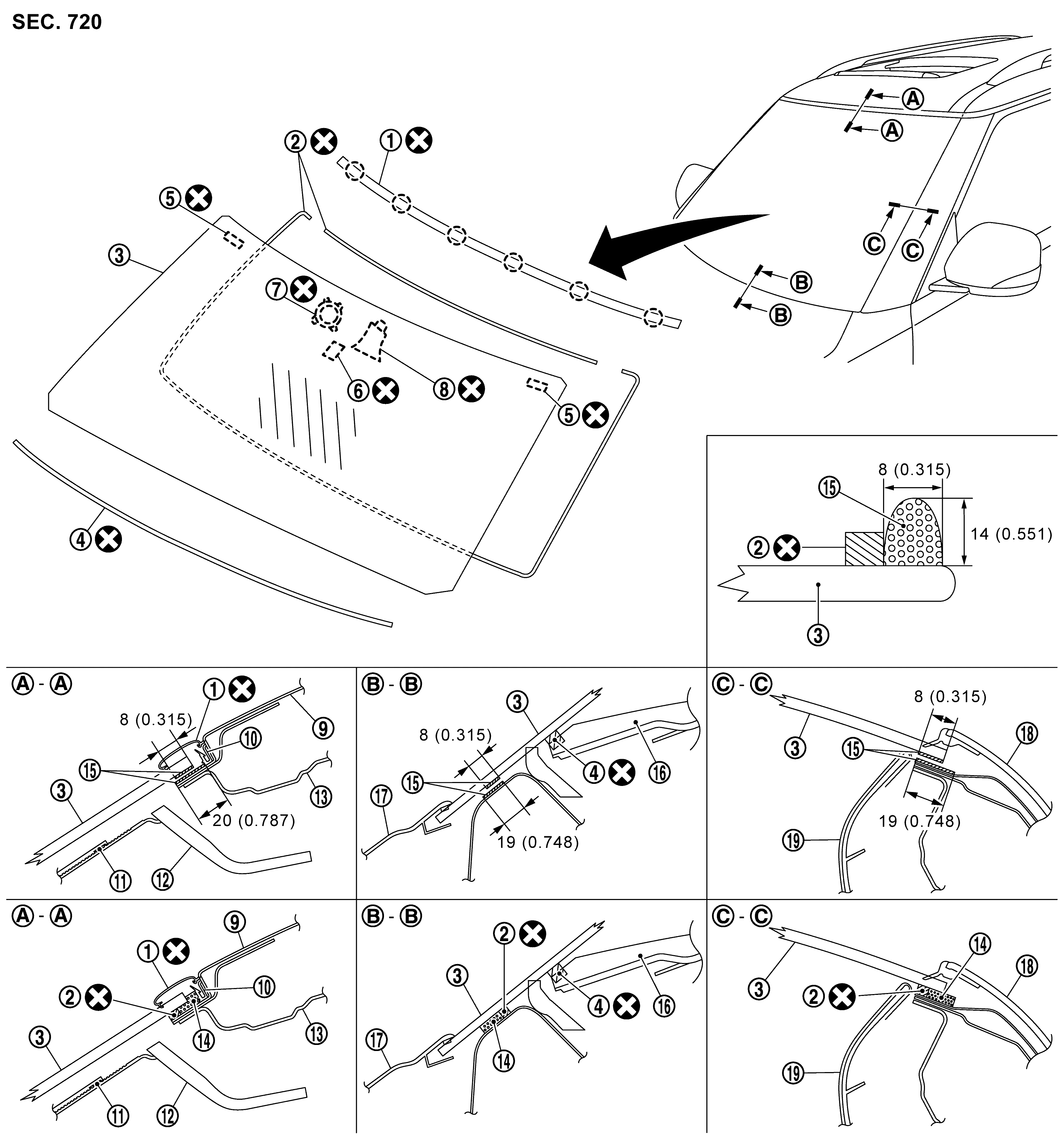

| 1. |
Windshield molding upper |
2. |
Dam sealant rubber (upper, lower) |
3. |
Windshield glass |
| 4. |
Insulator |
5. |
Clip |
6. |
Inside mirror base |
| 7. |
Rain sensor bracket |
8. |
Lane camera unit bracket (with lane camera model) |
9. |
Roof assembly |
| 10. |
Windshield molding upper fastener |
11. |
Inside mirror cover |
12. |
Headlining assembly |
| 13. |
Front roof rail |
14. |
Adhesive |
15. |
Primer |
| 16. |
Instrument panel |
17. |
Cowl top cover |
18. |
Front pillar finisher |
| 19. |
Front pillar garnish |
 |
: Clip |
 |
: Always replace after every disassembly. |
| Unit |
: mm (in) |
