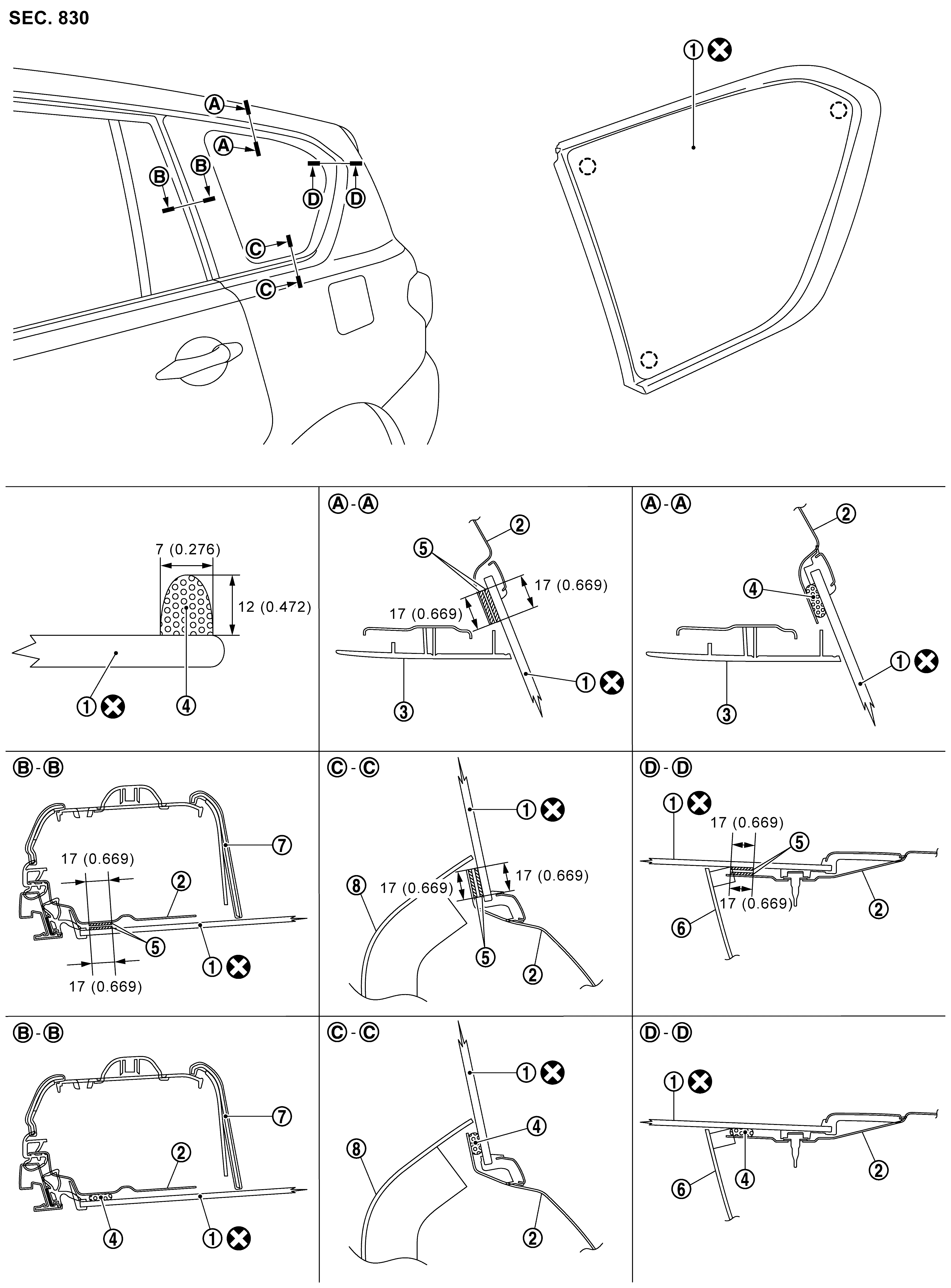

SIDE WINDOW GLASS : Exploded View

GNSDB146873Courtesy of NISSAN NORTH AMERICA, INC.
1. Side window glass 2. Body side outer panel 3. Luggage side upper finisher
4. Adhesive 5. Primer 6. Back pillar garnish
7. Rear pillar finisher 8. Luggage side lower finisher
SYMBOL : Always replace after every disassembly.
SYMBOL : Clip
Unit : mm (in)
