System Description

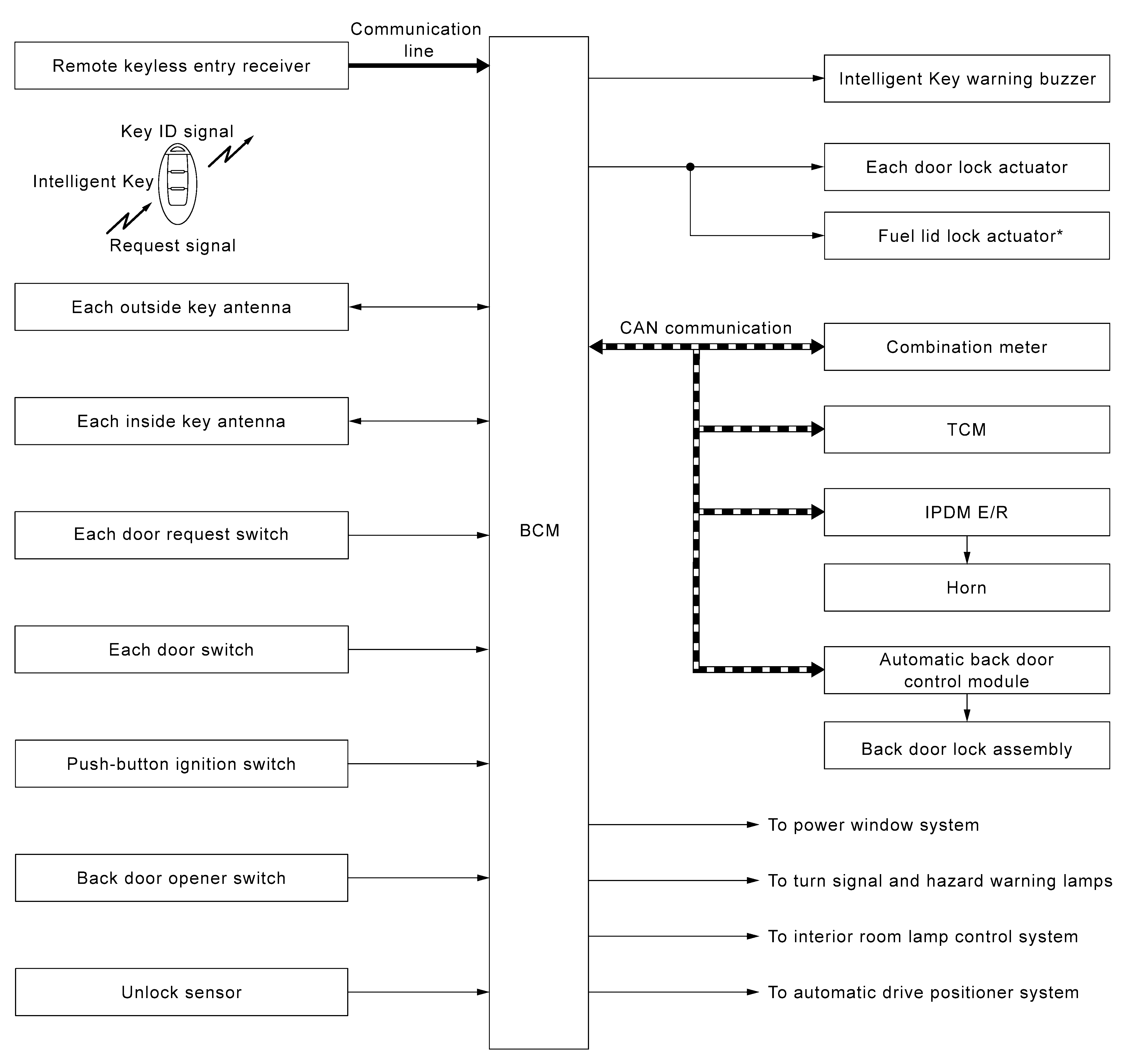

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

INTELLIGENT KEY SYSTEM

The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verification using two-way communication between the Intelligent Key and the vehicle (BCM).
CAUTION:
The driver should always carry the Intelligent Key
The settings for each function can be changed with CONSULT.
If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be registered.
It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

Function	Description
Door lock	Lock/unlock can be performed by pressing the request switch
Back door opener	The back door can be opened by carrying the Intelligent Key and pressing the back door opener switch
Remote keyless entry	Lock/unlock can be performed by pressing the remote controller button of the Intelligent Key
Key reminder	The key reminder buzzer sounds a warning if the door is locked with the key left inside the vehicle
Welcome light	When the Intelligent Key is carried, and vehicle doors are approached, the BCM illuminates interior room lamps and operates heart beat operation of the push-button ignition switch
Warning	If an action that does not meet the operating condition of the Intelligent Key system is taken, the buzzer sounds to inform the driver
Engine start	The engine can be turned on while carrying the Intelligent Key
Interior room lamp control	Interior room lamp is controlled according to door lock/unlock state
Power window	Power window can be operated by Intelligent Key button operation
Panic alarm	When Intelligent Key panic alarm button is pressed, horn sounds
Intelligent Key interlock	Setting of auto driving position can be automatically set, according to key ID of Intelligent Key, to the position that is registered in advance	Automatic drive positioner
	Setting of air conditioning system can be set, according to key ID of Intelligent Key, to the setting value that is set before turning ignition switch OFF	Air conditioning system
	Setting of multi AV system can be set, according to key ID of Intelligent Key, to the setting value that is set before turning ignition switch OFF	Multi AV system

DOOR LOCK FUNCTION

OPERATION DESCRIPTION

When the BCM detects that each door request switch is pressed, it activates the outside key antenna and inside key antenna corresponding to the pressed door request switch and transmits the request signal to the Intelligent Key. And then, check that the Intelligent Key is near the door.
If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and transmits the key ID signal to the BCM via remote keyless entry receiver.
BCM receives the key ID signal and compares it with the registered key ID.
BCM locks/unlocks each doors (except back door).
BCM sounds Intelligent Key warning buzzer (lock: 2 times, unlock: 1 time) and blinks hazard warning lamps (lock: 2 times, unlock: 1 time) at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is operated.

Each door request switch operation	Operation condition
Lock	All doors are closed Panic alarm is not activated P position warning is not activated Intelligent Key is outside the vehicle Intelligent Key is within outside key antenna detection area *
Unlock	Panic alarm is not activated Intelligent Key is outside the vehicle Intelligent Key is within outside key antenna detection area *

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be locked/unlocked from outside of the vehicle with a spare Intelligent Key as long as key IDs are different.

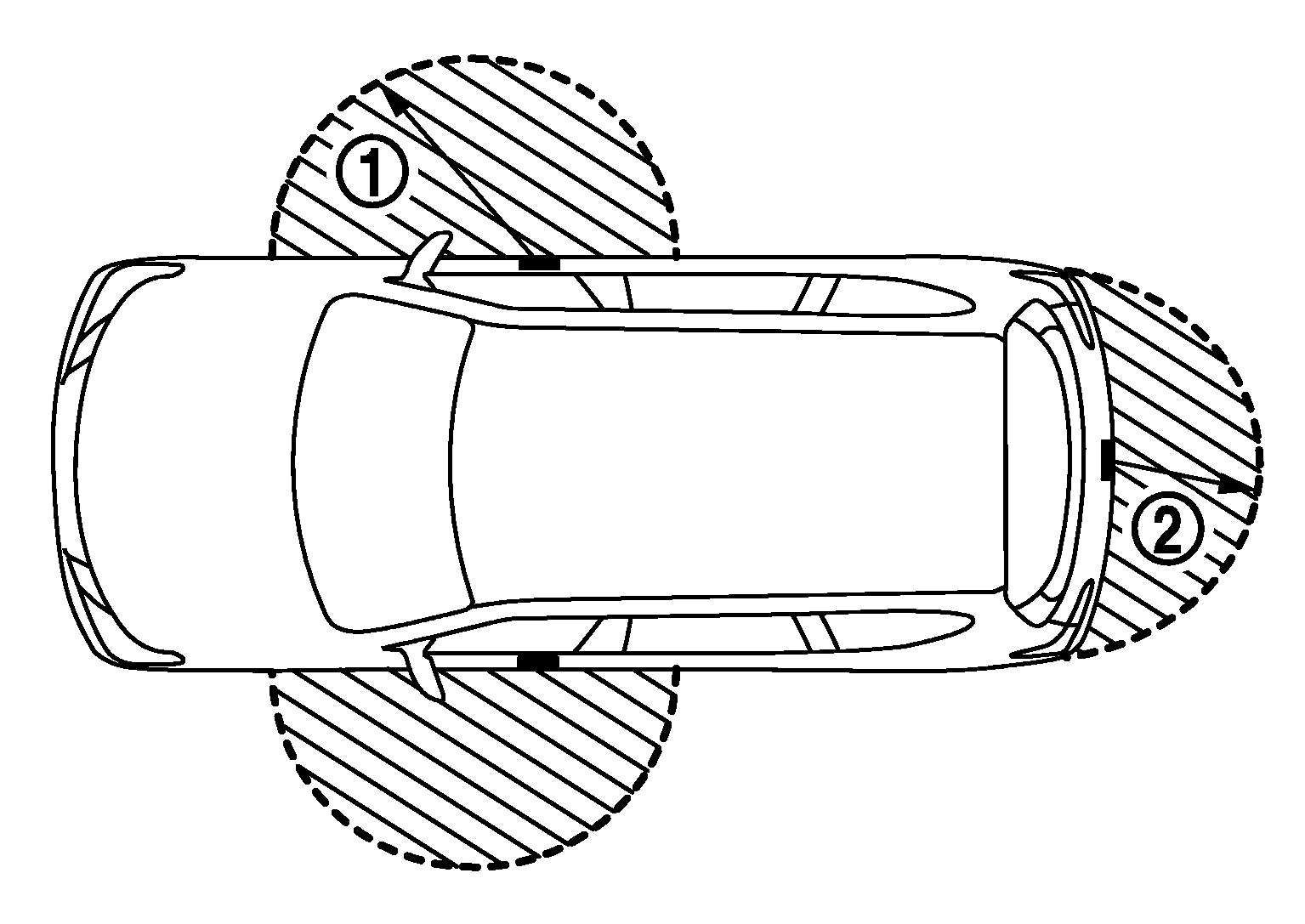

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function is in the range of approximately 80 cm (31.50 in) surrounding the driver, passenger door handles (1) and back door handle (2). However, this operating range depends on the ambient conditions.

Courtesy of NISSAN NORTH AMERICA, INC.

SELECTIVE UNLOCK FUNCTION

Lock Operation

When an LOCK signal is sent from door request switch (driver side, passenger side, back door), all doors and fuel filler lid are locked.

Unlock Operation

When an UNLOCK signal from driver side door request switch is transmitted, driver side door and fuel filler lid are unlocked. When another UNLOCK signal is transmitted within 60 seconds, all other doors (except back door) are unlocked.
When an UNLOCK signal from passenger side door request switch is transmitted, passenger side door is unlocked. When another UNLOCK signal is transmitted within 60 seconds, all other doors (except back door) and fuel filler lid are unlocked.
When an UNLOCK signal from back door request switch is transmitted, back door open permission is set. When another UNLOCK signal is transmitted within 60 seconds, all doors (except back door) and fuel filler lid are unlocked.

How To Change Selective Unlock Operation Mode

Selective unlock operation mode can be changed using CONSULT.

Refer to Diagnosis Description .

HAZARD AND BUZZER REMINDER FUNCTION

During lock or unlock operation by each door request switch, the hazard warning lamps and Intelligent Key warning buzzer blinks or honks as a reminder.

Operating Function Of Hazard And buzzer Reminder

Operation	Hazard warning lamp blinks	Intelligent Key warning buzzer honks
Unlock	Once	Once
Lock	Twice	Twice

Hazard and buzzer reminder does not operate in the following conditions.

Ignition switch position is ON
Door is open (only lock operation)

How To Change Hazard And Buzzer Reminder Mode

Hazard and buzzer reminder mode can be changed using CONSULT.

Refer to Diagnosis Description .

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 60 seconds or more passes without performing the following operation, all doors and fuel filler lid are automatically locked. However, operation check function does not activate.

Operating condition

Door switch is ON (door is open)
Door is locked
Push switch is pressed

How To Change Auto Door Lock Operation Mode

Auto door lock operation mode can be changed using CONSULT.

Refer to Diagnosis Description .

LIST OF OPERATION RELATED PARTS

Parts marked with x are the parts related to operation.

Function	Intelligent Key	Remote keyless entry receiver	Door switch	Door request switch	Door lock actuator	Fuel lid lock actuator *	Inside key antenna	Outside key antenna	CAN communication system	BCM	Hazard warning lamp	Intelligent Key warning buzzer	Push-button ignition switch
Door lock/unlock function	x	x	x	x	x	x	x	x		x
Hazard reminder function									x	x	x	x
Selective unlock function	x			x	x	x	x	x		x
Auto door lock function	x				x	x				x			x

*: For Mexico

BACK DOOR OPEN FUNCTION

This section describes the operation of the back door opener switch.

The back door open function can open the back door by pressing the back door opener switch while carrying the Intelligent Key and all doors (except back door) are locked.
The back door open function enables the back door to be opened by pressing back door opener switch after BCM transmits UNLOCK signal to each door. Refer to System Description .

BACK DOOR OPEN

While back door open in the permitted state, back door opens when back door opener switch is pressed after back door request switch is operated. Back door open also can be operated according to the following procedure.

When the BCM detects that back door opener switch is pressed, it activates the outside key antenna (back door) and inside key antenna and transmits the request signal to the Intelligent Key. And then, check that the Intelligent Key is near the back door.
If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and transmits the key ID signal to the BCM via remote keyless entry receiver.
BCM receives the key ID signal and compares it with the registered key ID.
If the verification result is OK, BCM transmits the back door open request signal to automatic back door control unit via CAN communication.
Automatic back door control unit transmits back door open request signal to back door lock assembly and back door is open.
When the back door is open, automatic back door system performs waiting operation for next back door close operation.
The operation of then back door open is the same as the automatic back door system. Refer to System Description .

OPERATION CONDITION

If the following conditions are not satisfied, back door open operation is not performed even if the back door opener switch is operated.

Back door opener switch operation	Operation condition
Back door open	Vehicle speed is less than 5 km/h (3 MPH) Intelligent Key is within outside key antenna (back door) detection area Back door is closed Panic alarm is not activated

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of back door open function is in the range of approximately 80 cm (31.50 in) surrounding the outside key antenna (back door) (1). However, this operating range depends on the ambient conditions.

Courtesy of NISSAN NORTH AMERICA, INC.

LIST OF OPERATION RELATED PARTS

Parts marked with x are the parts related to operation.

Function	Intelligent Key	Remote keyless entry receiver	Back door opener switch	Back door lock assembly	Inside key antenna	Outside key antenna (back door)	CAN communication system	BCM	Automatic back door control module
Back door open function	x	x	x	x	x	x	x	x	x

REMOTE KEYLESS ENTRY FUNCTION

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the same manner as the remote controller by operating the door lock/unlock button.

OPERATION

Remote keyless entry system controls operation of the following items.

Door lock/unlock function
Selective unlock function
Auto door lock function
Hazard and horn reminder function
Automatic back door open/close function

OPERATION AREA

To check that the Intelligent Key works normally, use within 1 m (3 ft) range of each doors, however the operable range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION

When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal transmitted from Intelligent Key to BCM via remote keyless entry receiver.
When BCM receives the door lock/unlock signal, it operates all door lock actuators and fuel lid lock actuator, blinks the hazard lamp (lock: 2 time, unlock: 1 times) and horn chirp signal to IPDM E/R at the same time as a reminder.
IPDM E/R honks horn (lock: 1 time) as a reminder.

OPERATION CONDITION

If the following condition are satisfied, remote keyless entry operation is performed when the Intelligent Key is operated.

Remote controller operation	Operation condition
Lock	Panic alarm is not activated P position warning is not activated
Unlock	Panic alarm is not activated

SELECTIVE UNLOCK FUNCTION

When an LOCK signal is transmitted from Intelligent Key, all doors and fuel filler lid are locked.
When an UNLOCK signal is transmitted from Intelligent Key once, driver side door and fuel filler lid are unlocked.
Then, if an UNLOCK signal is transmitted from Intelligent Key again within 60 seconds, all other doors (except for back door) are unlocked.

How to change selective unlock operation mode.

Selective unlock operation mode can be changed using CONSULT.

Refer to Diagnosis Description .

AUTO DOOR LOCK FUNCTION

After door is unlocked by Intelligent Key button operation and if 60 seconds or more passes without performing the following operation, all doors are locked. However, operation check function does not activate.

Operating condition

Door switch is ON (door is open)
Door is locked
Push switch is pressed

How to change auto door lock operation mode.

Auto door lock mode can be changed using CONSULT.

Refer to Diagnosis Description .

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key, BCM blinks hazard warning lamps as a reminder.

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating Function of Hazard and Horn Reminder

	C mode		S mode
Intelligent Key operation	Lock	Unlock	Lock	Unlock
Hazard warning lamp blinks	Twice	Once	Twice	-
Horn sound	Once	-	-	-

Hazard and horn reminder does not operate in the following conditions.

Ignition switch position is ON.
Door is open (only lock operation)

How to Change Hazard and Horn Reminder Mode

Hazard and horn reminder operation mode can be changed using CONSULT.

Refer to Diagnosis Description . Without CONSULT When LOCK and UNLOCK signals are sent from the Intelligent Key for more than 2 seconds at the same time, the hazard and horn reminder mode is changed and hazard warning lamp blinks and horn sounds as per the following items:

Courtesy of NISSAN NORTH AMERICA, INC.

AUTOMATIC BACK DOOR OPEN/CLOSE FUNCTION

When back door button of Intelligent Key is pressed for 0.4 second or more, back door open automatically for detailed description. Refer to System Description .

REMOTE ENGINE START FUNCTION

Engine start can be operated by Intelligent Key button operation.

Refer to System Description .

LIST OF OPERATION RELATED PARTS

Parts marked with x are the parts related to operation.

Function	Intelligent Key	Door switch	Door lock actuator	Fuel lid lock actuator *	Push-button ignition switch	CAN communication system	BCM	IPDM E/R	Horn	Combination meter	Hazard warning lamp	Automatic back door control module	Back door lock assembly
Door lock/unlock function	x	x	x	x			x
Selective unlock function	x	x	x	x			x
Auto door lock function	x	x	x	x	x		x
Hazard and horn reminder function						x	x	x	x	x	x
Automatic back door open/close function	x					x	x					x	x

*: For Mexico

KEY REMINDER FUNCTION

Key reminder is the function that prevents the key from being left in the vehicle.

Key reminder has the following 3 functions.

Key remainder function	Operation condition	Operation
Driver door closed *	Right after driver side door is closed under the following conditions Door lock operation is performed Driver side door is open Driver side door is in lock state	All doors (except back door) and fuel filler lid unlock
Door is open or closed	Right after all doors are closed under the following conditions Intelligent Key is inside the vehicle Any door is open All doors (except back door) are locked by door lock and unlock switch or door lock knob	All doors (except back door) and fuel filler lid unlock Honk Intelligent Key warning buzzer
Back door is closed	Right after back door is closed under the following conditions Intelligent Key is inside vehicle All doors (except for back door) are closed All doors (except for back door) are locked	All doors (except for back door) and fuel filler lid unlock Back door can open with back door opener switch Honk Intelligent Key warning buzzer

*: If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks accidentally but unlock operation is perform in these cases.

CAUTION:

The above function operates when the Intelligent Key is inside the vehicle. However, there may be times when the Intelligent Key cannot be detected, and this function does not operate when the Intelligent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system sometimes does not operate if the Intelligent Key is in the door pocket for the open door.

WELCOME LIGHT FUNCTION

The welcome light function operates as per the following. When the Intelligent Key is within the outside key antenna detection area, the BCM turns on interior room lamp * and operates heart beat operation of the push-button ignition switch.

*: Settings for map lamp, foot lamp, personal lamp, and puddle lamp are available.

OPERATION DESCRIPTION

When the BCM detects that the Intelligent Key is within the outside key antenna detection area. BCM transmits the request signal to the Intelligent Key and check it is near the door.
Intelligent Key receives the request signal and transmits the key ID signal to the BCM via remote keyless entry receiver.
BCM receives the key ID signal and compares it with the registered key ID.
BCM illuminates lamps that are set, when key ID verification is OK.

TIMER FUNCTION

BCM can operate welcome light function, using the timer function, for 9 days, after key switch is turned OFF.

The timer function resets when the engine is started.

* Operating period of timer function may differ depending on battery size.

* : Timer function does not stop if another Intelligent Key that has a different key ID is detected within the interior antenna detection area, when starting the engine.

OPERATION CONDITION

If the following condition are satisfied, welcome light function is operated.

Function	Operation condition
Welcome light function	All door are closed All doors is locked Ignition switch: OFF position Shift position: P position Intelligent Key is outside the vehicle Timer function is activated

OUTSIDE KEY ANTENNA DETECTION AREA

Courtesy of NISSAN NORTH AMERICA, INC.

WELCOME LIGHT FUNCTION SETTING

Welcome light function operation mode can be changed using CONSULT

Diagnosis Description . Without CONSULT The welcome light function ON/OFF can be switched by performing the following operation.

Turn ignition switch: OFF→ON
Press and hold the driver side door request switch for 5 seconds or more within 20 seconds after turning the ignition switch ON.
The switching is complete when combination meter buzzer sounds.

WARNING FUNCTION

OPERATION DESCRIPTION

The warning function are as per the following items and are given to the user as warning information and warnings using combinations of Intelligent Key warning buzzer, combination meter buzzer, KEY warning lamp and information display in combination meter.

Intelligent Key system malfunction
OFF position warning
P position warning
ACC warning
Take away warning
Door lock operation warning
Engine start information
Intelligent Key low battery warning
Key ID warning
Key ID verification information

OPERATION CONDITION

Once the following condition from below is established, alert or warning is executed.

Warning/Information functions		Operation procedure
Intelligent Key system malfunction		When a malfunction is detected on BCM, "KEY" warning lamp illuminates
OFF position warning	For internal	When condition A, B or condition C is satisfied Condition A Ignition switch: ACC position Door switch (driver side): ON (Door is open) Condition B Turn ignition switch from ON to OFF while door is open Condition C Intelligent Key backside is contacted to ignition switch while brake pedal is depressed and ignition switch is LOCK or OFF (When the Intelligent Key battery is discharged) Door switch (driver side): ON (Door is open)
OFF position warning	For external	OFF position warning (For internal) is in active mode, driver side door is closed NOTE: OFF position (For external) active only when each of the sequence occurs as below: P position warning → ACC warning → OFF position warning (For internal) → OFF position warning (For internal)
P position warning	For internal	Shift position: Except P position Engine is running to stopped (Ignition switch is ON to OFF)
P position warning	For external	Warning is activated when driver door is closed from the open position while the P position warning (for inside vehicle) is ON
ACC warning		When P position warning is in active mode, shift position changes P position Ignition switch: ACC position
Take away warning	Door is open to close	Ignition switch: Except LOCK position Door switch: ON to OFF (Door is open to close) Intelligent Key cannot be detected inside the vehicle
	Door is open	Ignition switch: Except LOCK position Door switch: ON (Door is open) Key ID verification every 5 seconds when registered Intelligent Key cannot be detected inside the vehicle
	Push-button ignition switch operation	Ignition switch: Except LOCK position Press push-button ignition switch Intelligent Key cannot be detected inside the vehicle
Door lock operation warning		When door lock operation is requested while door lock operating condition of door request switch or Intelligent Key are not satisfied
Engine start information	Ignition switch is ON position	Ignition switch: ON position Shift position: P position * Engine is stopped
Engine start information	Ignition switch is except ON position	Ignition switch: Except ON position Shift position: P position * Intelligent Key is inserted in key slot or Intelligent Key can be detected inside the vehicle
Intelligent Key low battery warning		When Intelligent Key is low battery, BCM is detected after ignition switch is turned ON
Key ID warning		When registered Intelligent Key cannot be detected inside the vehicle after ignition switch is turned ON
Key ID verification information		When registered Intelligent Key cannot be detected inside the vehicle Intelligent Key battery is discharged When NATS antenna amp cannot be detected NATS ID

WARNING METHOD

The following table shows the alarm or warning methods with chime.

Warning/Information functions		"KEY" warning lamp	Information display (combination meter)	Warning chime
Warning/Information functions		"KEY" warning lamp	Information display (combination meter)	Combination meter buzzer	Intelligent Key warning buzzer
Intelligent Key system malfunction		Indicate	-	-	-
OFF position warning	For internal	-	-	Activate	-
OFF position warning	For external	-	-	-	Activate
P position warning	For internal	-	Courtesy of NISSAN NORTH AMERICA, INC.	Activate	-
P position warning	For external	-	Courtesy of NISSAN NORTH AMERICA, INC.	-	Active
ACC warning		-	Courtesy of NISSAN NORTH AMERICA, INC.	Activate	-
Take away warning	Door is open to close	-	Courtesy of NISSAN NORTH AMERICA, INC.	Activate	Activate
	Door is open			-	-
	Push button-ignition switch operation			Activate	-
Door lock operation warning	Request switch operation	-	-	-	Activate
Door lock operation warning	Intelligent Key	-	-	-	Activate
Key ID warning		-	Courtesy of NISSAN NORTH AMERICA, INC.	-	-
Engine start information		-	Courtesy of NISSAN NORTH AMERICA, INC.	-	-
Intelligent Key low battery warning		-	Courtesy of NISSAN NORTH AMERICA, INC.	-	-
Key ID verification information		-	Courtesy of NISSAN NORTH AMERICA, INC.	-	-

LIST OF OPERATION RELATED PARTS

Parts marked with x are the parts related to operation.

Warning function		Intelligent Key	Ignition switch	Door switch	Door request switch	Inside key antenna	Outside key antenna	Intelligent Key warning buzzer	Combination meter buzzer	CAN communication system	BCM	Information display	"KEY" warning lamp
Intelligent Key system malfunction										x	x		x
OFF position warning	For internal			x					x	x	x
OFF position warning	For external			x				x			x
P position warning			x						x	x	x	x	x
ACC warning			x						x	x	x	x
Take away warning	Door is open or close	x		x		x		x	x	x	x	x	x
	Door is open	x		x		x				x	x	x	x
	Push-button ignition switch operation	x	x			x			x	x	x	x	x
Door lock operation warning		x		x	x	x	x	x			x
Key ID warning			x			x				x	x	x	x
Engine start information	Ignition switch is ON position	x	x			x				x	x	x
Engine start information	Ignition switch is except ON position	x	x			x				x	x	x
Intelligent Key low battery warning		x				x				x	x	x	x
Key ID verification information		x				x				x	x	x
