System Description

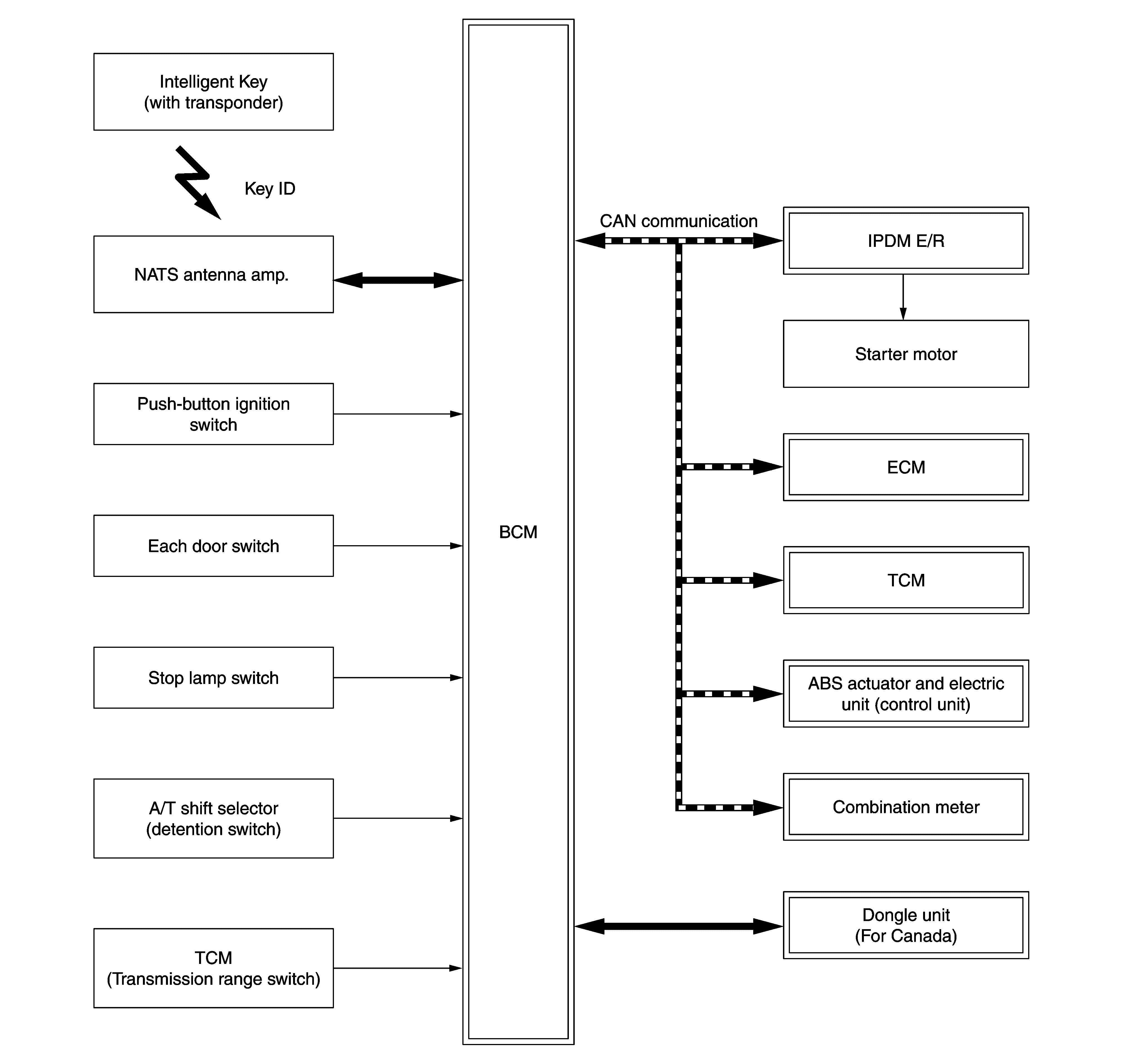

SYSTEM DIAGRAM

GNSDB145340Courtesy of NISSAN NORTH AMERICA, INC.

SYSTEM DESCRIPTION

PRECAUTIONS FOR KEY REGISTRATION

SECURITY INDICATOR LAMP

ENGINE START OPERATION WHEN INTELLIGENT KEY IS CONTACTED TO PUSH-BUTTON IGNITION SWITCH

  1. When brake pedal is depressed while selector lever is in the P position, BCM activates NATS antenna amp. that is located behind push-button ignition switch.
  2. When Intelligent Key (transponder built-in) backside is contacted to push-button ignition switch, BCM starts IVIS (NATS) ID verification between BCM and Intelligent Key (transponder built-in) via NATS antenna amp.
  3. When the IVIS (NATS) ID verification result is OK, buzzer in combination meter sounds and BCM transmits the result to ECM.
  4. BCM turns ACC relay ON and transmits ignition power supply ON signal to IPDM E/R.
  5. IPDM E/R turns the ignition relay ON and starts the ignition power supply.
  6. BCM detects that the selector lever position is P or N.
  7. BCM transmits starter request signal to IPDM E/R and turns the starter relay in IPDM E/R ON if BCM judges that the engine start condition* is satisfied.
  8. IPDM E/R turns the starter control relay ON when receiving the starter request signal.
  9. Power supply is supplied through the starter relay and the starter control relay to operate the starter motor.
  10. When BCM receives feedback signal from ECM indicating that the engine is started, BCM transmits a stop signal to IPDM E/R and stops cranking by turning off the starter motor relay. (If engine start is unsuccessful, cranking stops automatically within 5 seconds.)

*: For the engine start condition, refer to "POWER SUPPLY POSITION CHANGE TABLE BY PUSH-BUTTON IGNITION SWITCH OPERATION" below.

POWER SUPPLY POSITION CHANGE TABLE BY PUSH-BUTTON IGNITION SWITCH OPERATION

The power supply position changing operation can be performed with the following operations.

NOTE:
  • When an Intelligent Key is within the detection area of inside key antenna and when Intelligent Key backside is contacted to push-button ignition switch, it is equivalent to the operations below.
  • When starting the engine, the BCM monitors under the engine start conditions,
    • Brake pedal operating condition
    • Selector lever position
    • Vehicle speed

Vehicle speed: less than 4 km/h (2.5 MPH)

Power supply position Engine start/stop condition Push-button ignition switch operation frequency
Selector lever Brake pedal operation condition
LOCK → ACC - Not depressed 1
LOCK → ACC → ON - Not depressed 2
LOCK → ACC → ON → OFF - Not depressed 3
LOCK → START
ACC → START
ON → START
P or N position Depressed 1
Engine is running → OFF - - 1

Vehicle speed: 4 km/h (2.5 MPH) or more

Power supply position Engine start/stop condition Push-button ignition switch operation frequency
Selector lever Brake pedal operation condition
Engine is running → ACC - - Emergency stop operation
Engine stall return operation while driving N position Not depressed 1

Emergency stop operation
